Rear CROSSMEMBER: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Support the transmission with a suitable lifting device.
Remove the transmission mount through bolt.
Remove the six crossmember bolts and remove the crossmember. See Fig 1.

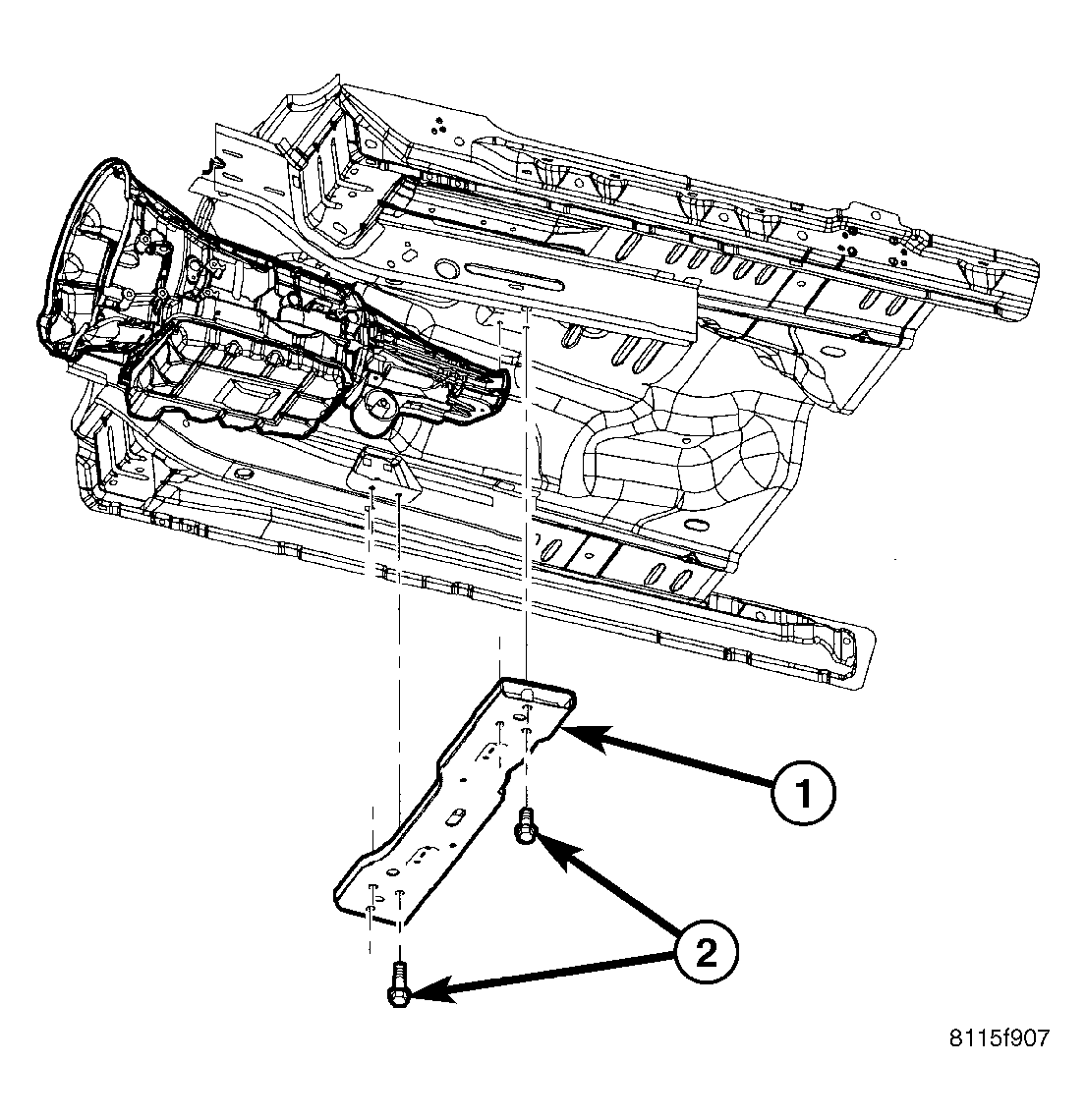

Fig 1: Rear Crossmember

Courtesy of DAIMLERCHRYSLER CORP.

1 - CROSSMEMBER

2 - BOLTS (6)
