Front Fascia: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

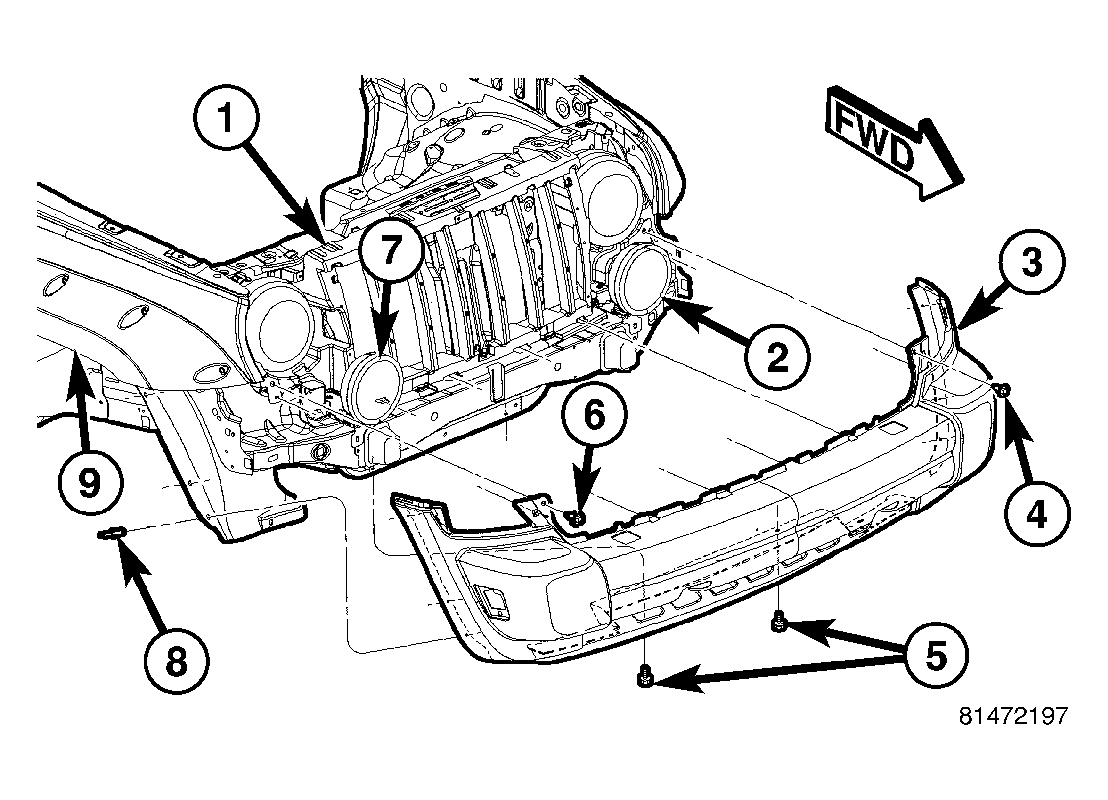

| 1 - GRILLE OPENING REINFORCEMENT |
| 2 - FOG LAMP |
| 3 - FASCIA |
| 4 - LEFT SCREW (1) |
| 5 - LOWER BOLTS (2) |
| 6 - RIGHT SCREW |
| 7 - FOG LAMP |
| 8 - WHEELHOUSE SPLASH SHIELD RIVETS (3 PER SIDE) |
| 9 - WHEEL OPENING FLARE MOLDING |
- Remove the grille. (Refer to BODY/EXTERIOR/GRILLE - REMOVAL)
- Remove the turn signal lamps. (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/PARK/TURN SIGNAL LAMP - REMOVAL)
- Remove the fascia screws next to the turn signal lamps. See Fig 1.
- Remove the two screws at the bottom of the fascia.
- Remove the three plastic rivets securing the fascia to each wheelhouse splash shield.
- Release the three tabs securing the fascia to the grille opening reinforcement.
- Remove the fascia.
