Dimension Illustrations

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION  FIGURE
TOP VIEW (Fig 1.)
SIDE VIEW ( Fig 2.)

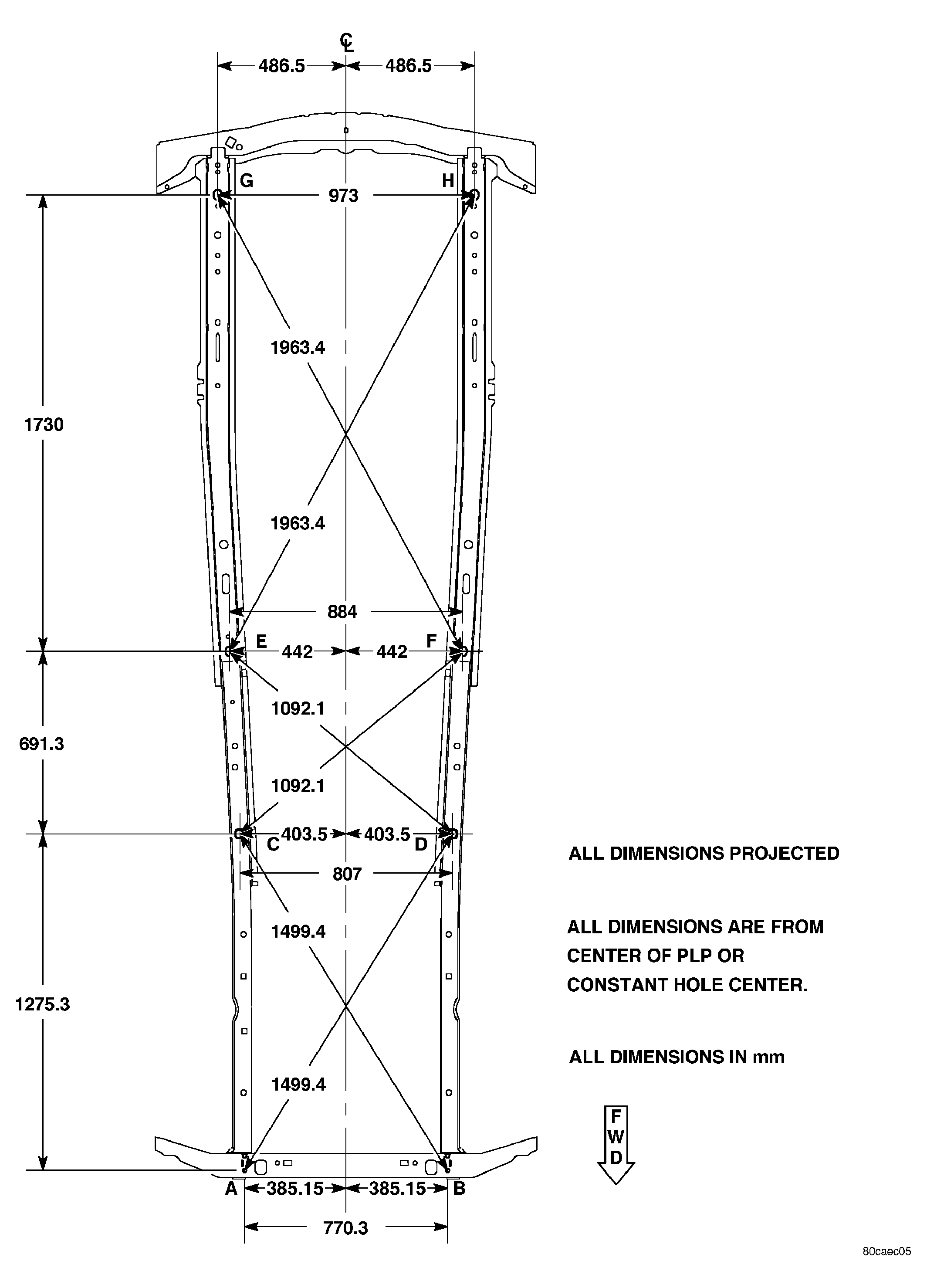

Fig 1: Bottom View
GC0025625Courtesy of DAIMLERCHRYSLER CORP.

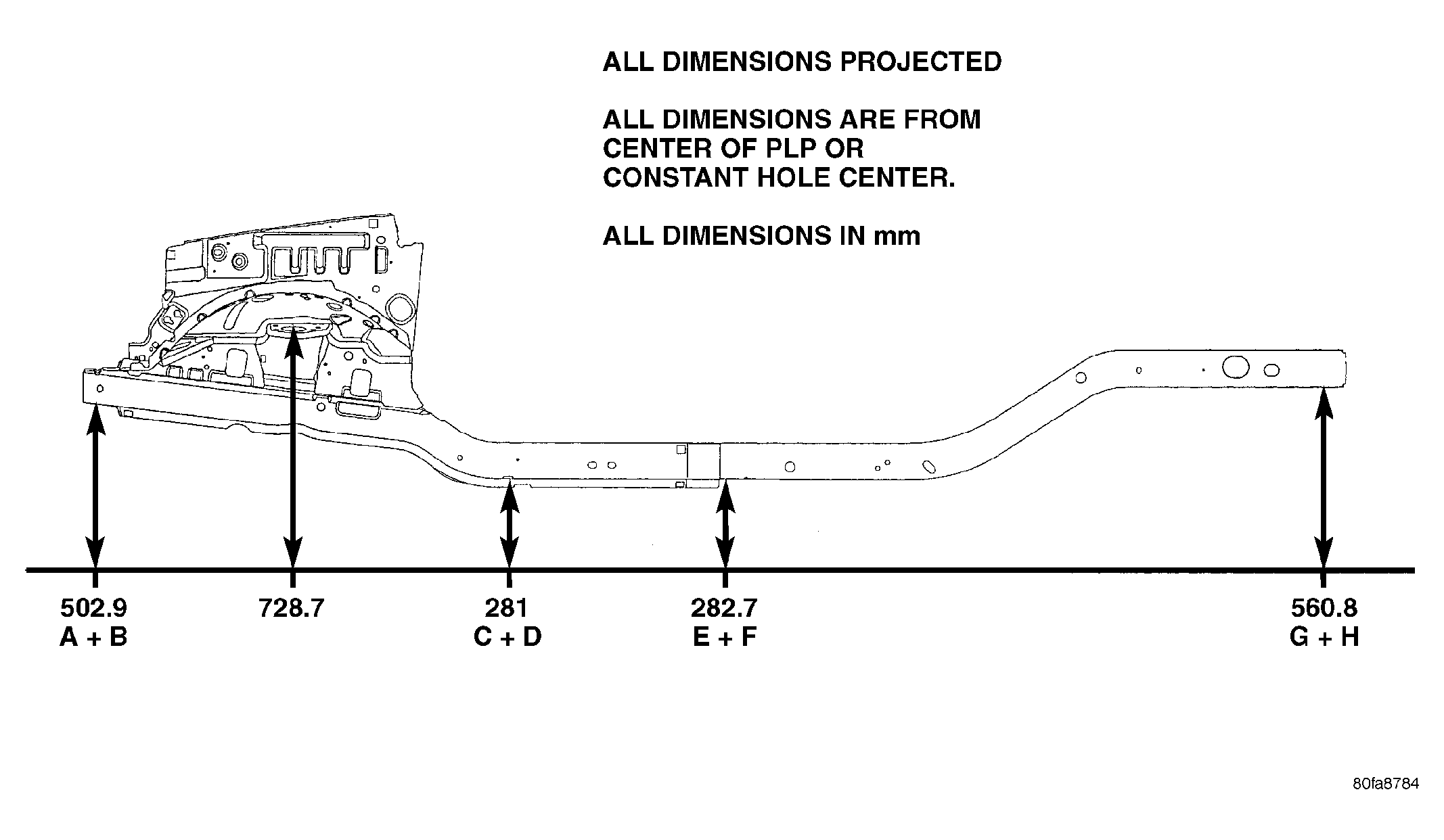

Fig 2: Side View
GC0025626Courtesy of DAIMLERCHRYSLER CORP.
