Seat Belt Buckle: Removal: Rear

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.

Unlatch the rear seat back and fold it forward far enough to access the screw that secures the rear seat belt buckle anchor to the rear floor panel between the rear seat back and the rear seat cushion.

Remove the screw that secures the rear seat belt buckle anchor to the rear floor panel. See Fig 1.

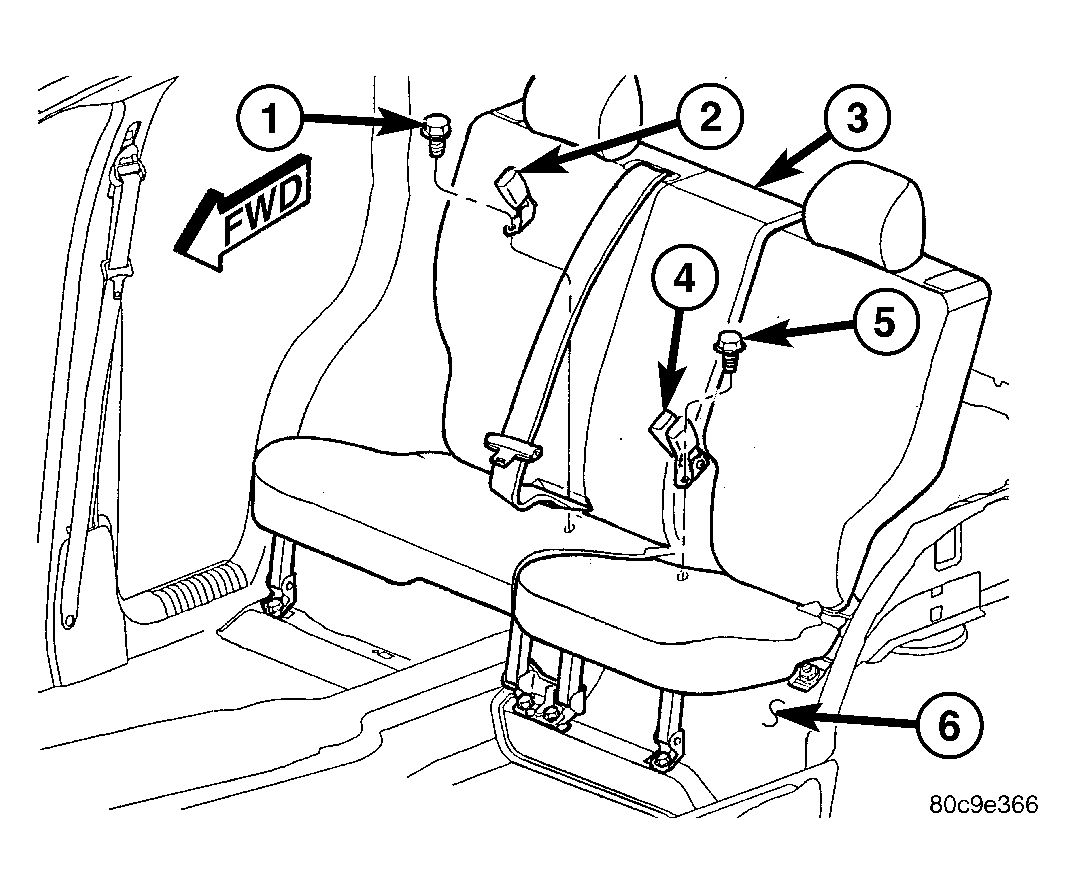

Fig 1: Rear Seat Belt Buckle Remove/Install

Courtesy of DAIMLERCHRYSLER CORP.

1 - SCREW (1)

2 - BUCKLE (SINGLE)

3 - REAR SEAT

4 - BUCKLE (DOUBLE)

5 - SCREW (1)

6- REAR FLOOR PANEL

Lift the rear seat belt buckle anchor off of the stud on the rear floor panel.
Remove the rear seat belt buckle and anchor from between the rear seat back and the rear seat cushion as a unit.
