Section 506 (Rack & Pinion Power Steering System): Pump: Reservoir: Installation: Diesel

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

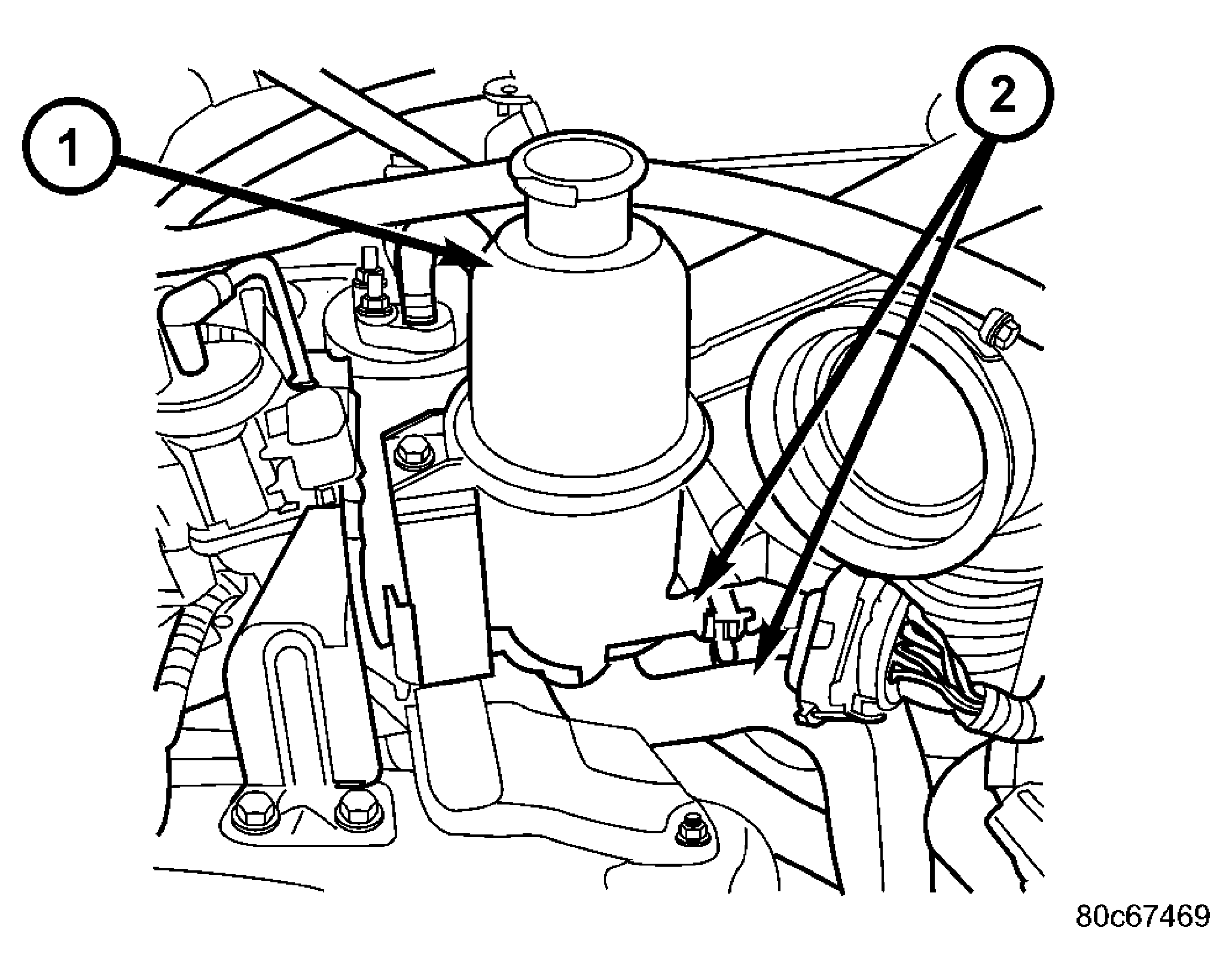

Fig 1: Reservoir

Courtesy of DAIMLERCHRYSLER CORP.

1 - FLUID RESERVOIR

2 - RETURN HOSES

Install the reservoir (1) to the mounting bracket.
Install and tighten the bolt to 12 N.m (9 ft. lbs.).
Install the hoses (2). See Fig 1.
Refill the power steering fluid and check for leaks (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
