Section 506 (Rack & Pinion Power Steering System): Pump: Reservoir: Installation: 3.7L

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

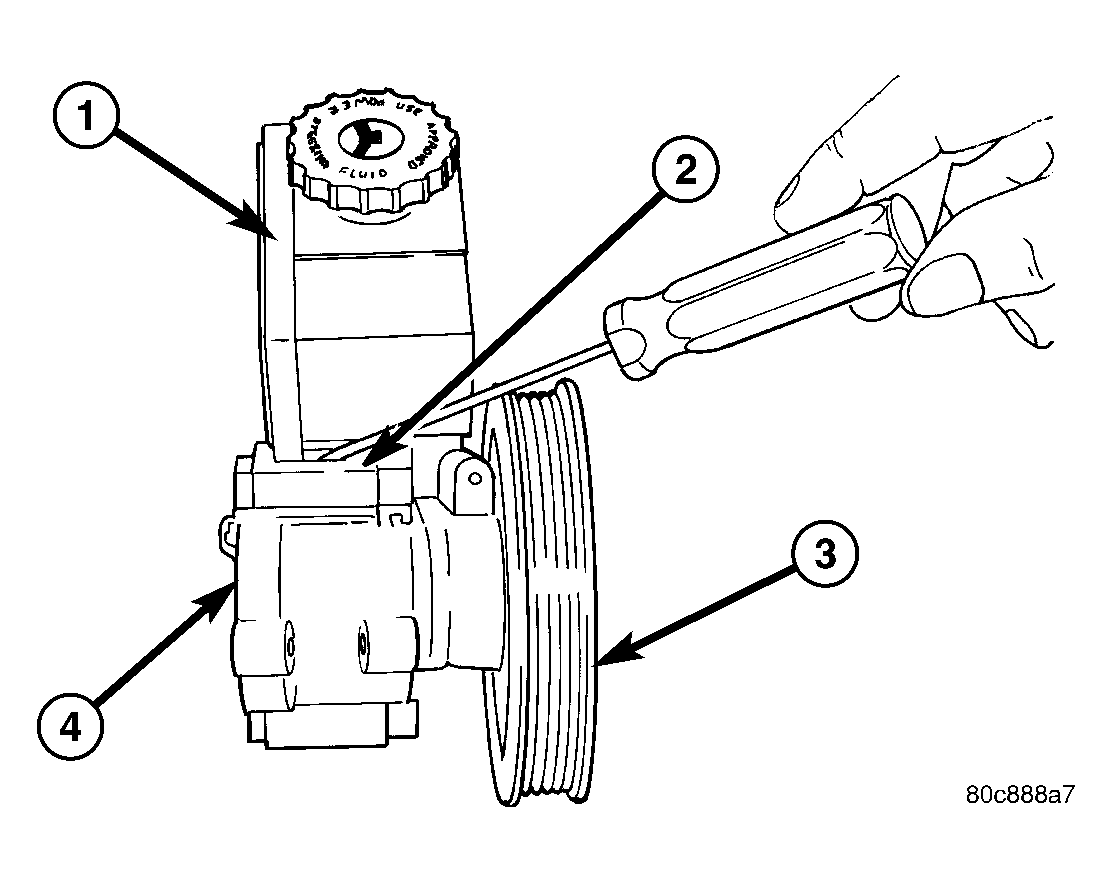

Fig 1: Fluid Reservoir

Courtesy of DAIMLERCHRYSLER CORP.

1 - FLUID RESERVOIR

2 - RETAINING CLIP

3 - PULLEY

4 - PUMP BODY

Install the reservoir (1) to the pump body (4).
Install the retaining clips (2) to the pump (4) and reservoir (1). See Fig 1.
Install the pump to the engine. (Refer to STEERING/PUMP - INSTALLATION) .
Refill the power steering fluid and check for leaks (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
