Section 506 (Rack & Pinion Power Steering System): Pump: Reservoir: Installation: 2.4L
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Install the reservoir to the mounting bracket.
- Install and tighten the bolt to
- Install the hoses.

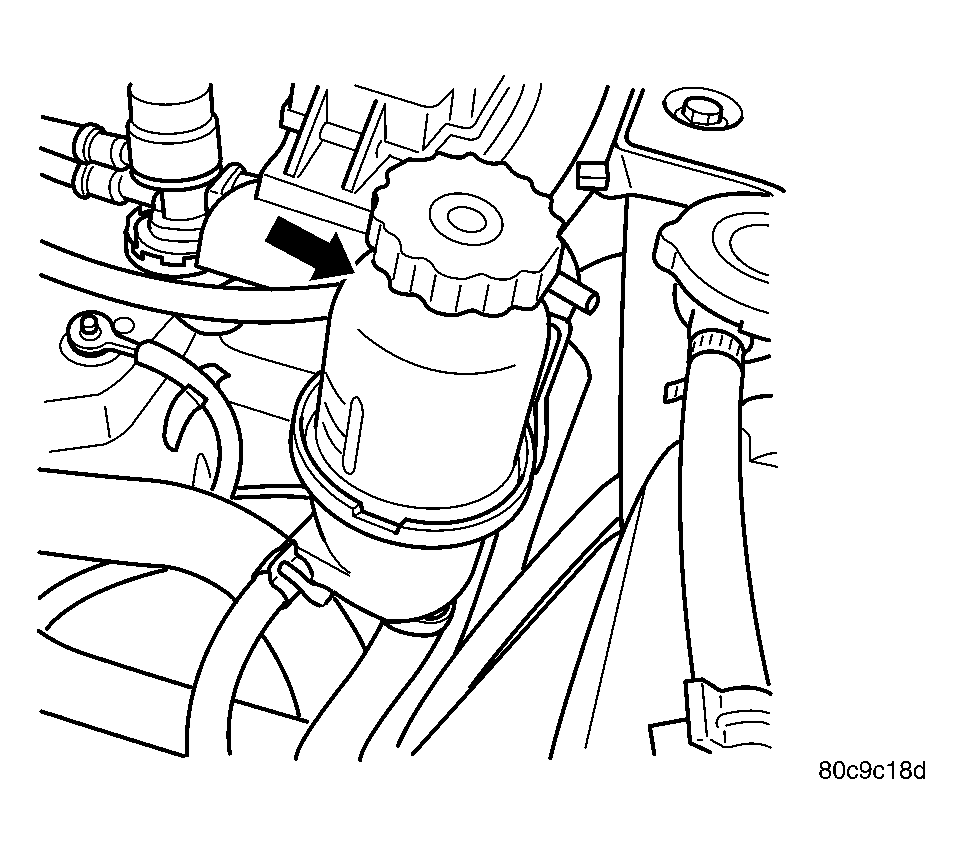

- Refill the power steering fluid and check for leaks (Refer to STEERING/PUMP - STANDARD PROCEDURE) . See Fig 1.
