Section 506 (Rack & Pinion Power Steering System): Pump: Pulley: Removal: Gas
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

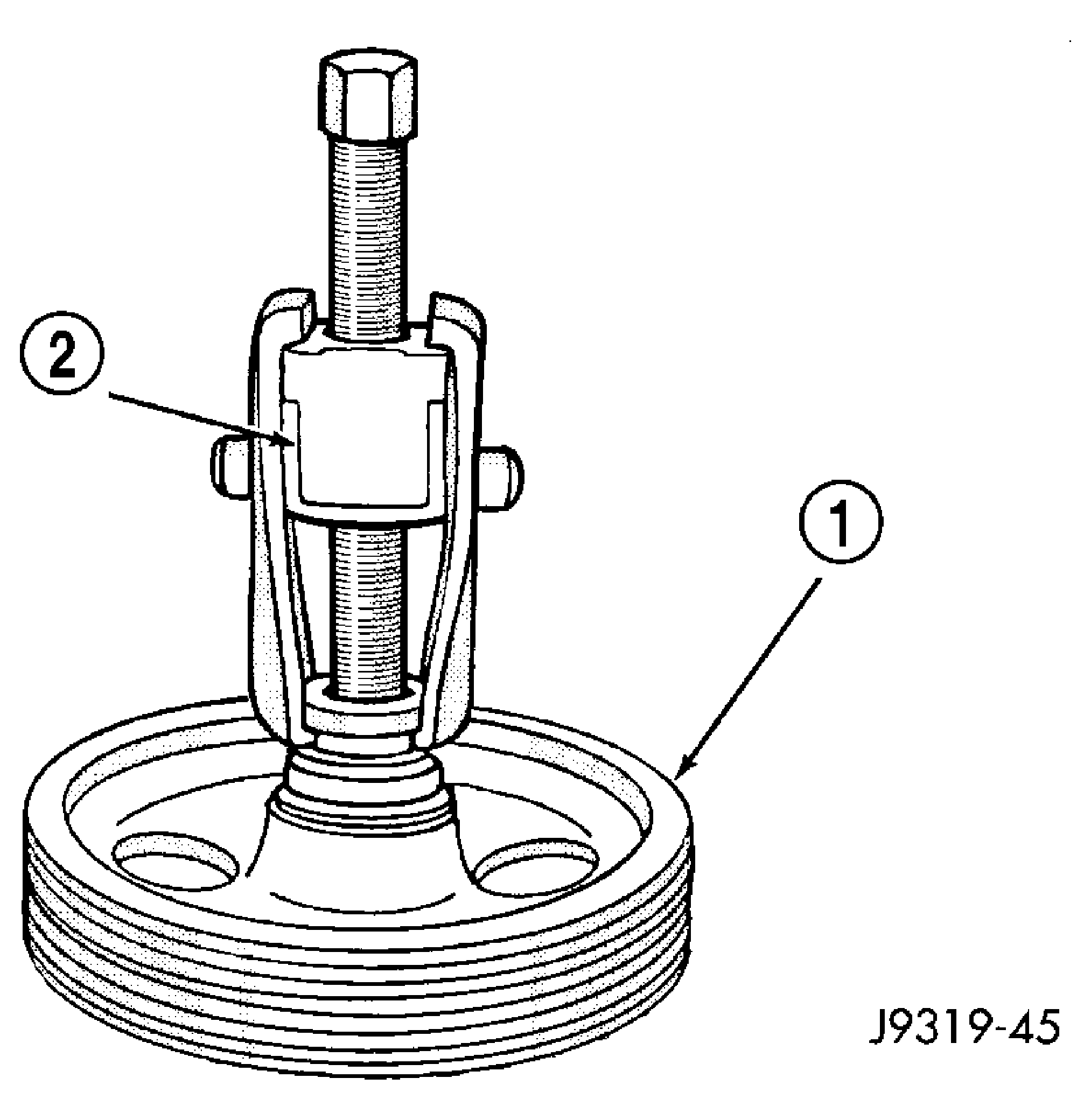

| 1 - POWER STEERING PUMP DRIVE PULLEY |
| 2 - SPECIAL TOOL C-4333 |
CAUTION:
On vehicles equipped with the 2.4L, Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
- Remove pump assembly. (Refer to STEERING/PUMP - REMOVAL) .
- Remove pulley (1) from pump with Puller C-4333 (2) or equivalent puller. See Fig 1.
