Section 506 (Rack & Pinion Power Steering System): Pump: Pulley: Installation: Diesel
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Install the pulley to the pump shaft.

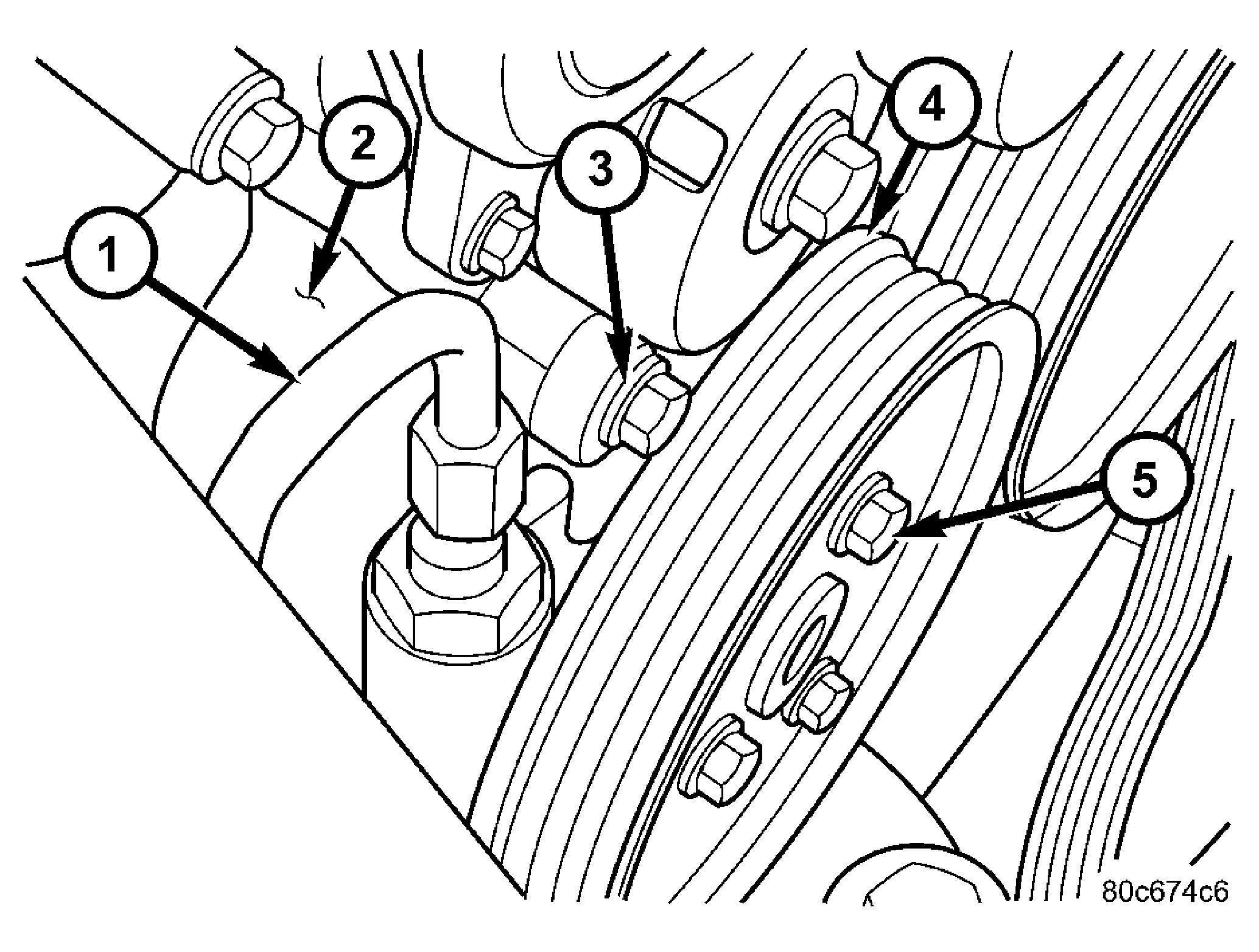

- Install the three bolt securing the pulley to the pump. See Fig 1.
- Install the serpentine belt.
- Install the fan shroud.
- Install the engine cooling fan.
| 1 - HIGH PRESSURE HOSE |
| 2 - POWER STEERING PUMP |
| 3 - POWER STEERING PUMP MOUNTING BOLT |
| 4 - POWER STEERING PUMP PULLEY |
| 5 - POWER STEERING PUMP PULLEY MOUNTING BOLTS |
