Power Steering Pressure Switch: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

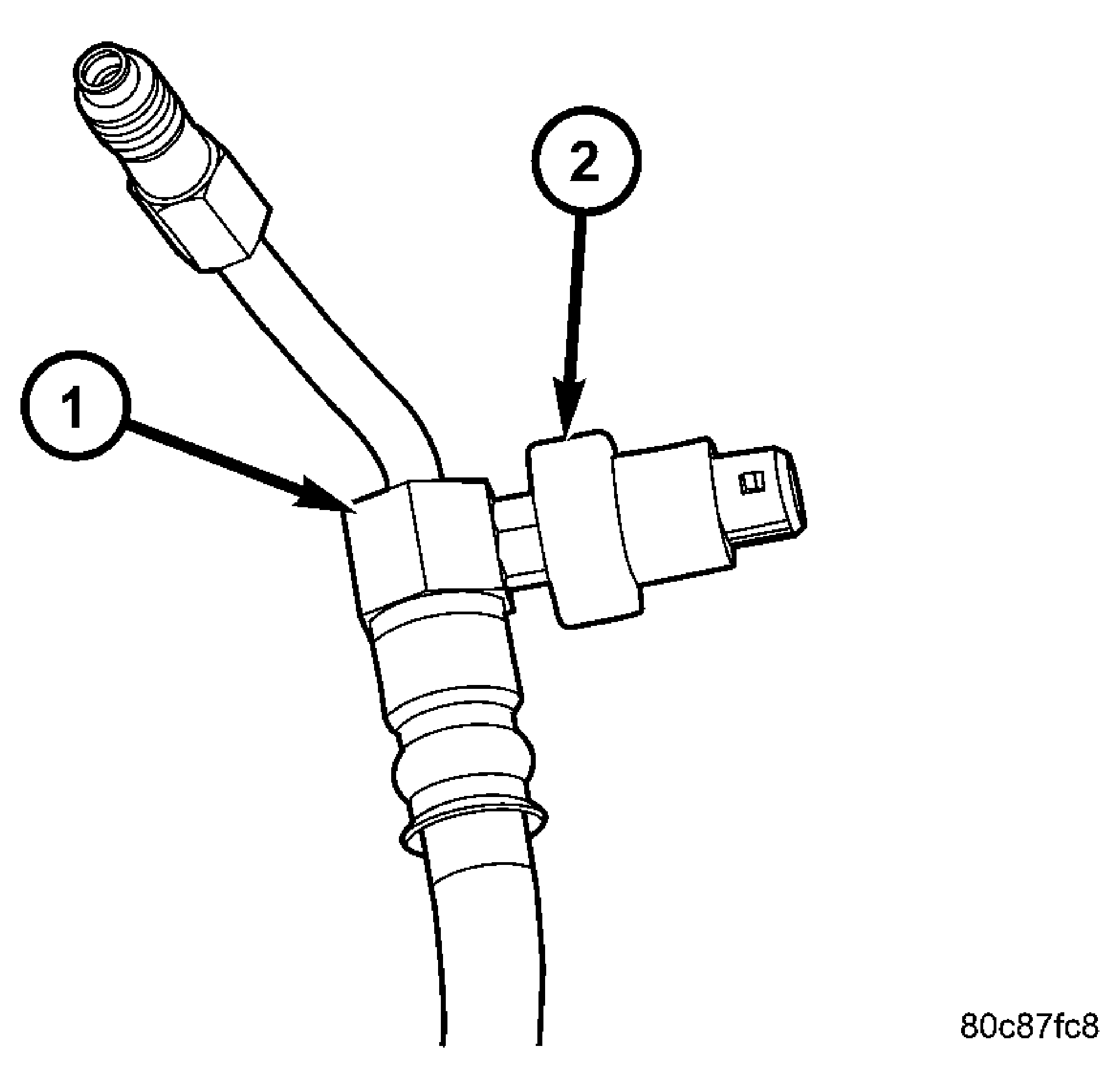

Fig 1: Power Steering Pressure Switch

Courtesy of DAIMLERCHRYSLER CORP.

1 - HIGH PRESSURE POWER STEERING HOSE

2 - POWER STEERING PRESSURE SWITCH

Install power steering switch (2) into power steering line (1) and Tighten to 9.6 N.m (85 in. lbs.). See Fig 1.

Fig 2: Pressure Switch

Courtesy of DAIMLERCHRYSLER CORP.

1 - ELECTRICAL CONNECTOR

2 - PRESSURE SWITCH

3 - HIGH PRESSURE POWER STEERING HOSE

Install the high pressure power steering hose (3) (Refer to STEERING/PUMP/HOSES - INSTALLATION) . See Fig 2.
Connect electrical connector (1) to the switch (2). See Fig 2.
Check power steering fluid and add as necessary (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
Start engine and again check power steering fluid. Add fluid if necessary.
