Pressure Hose

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

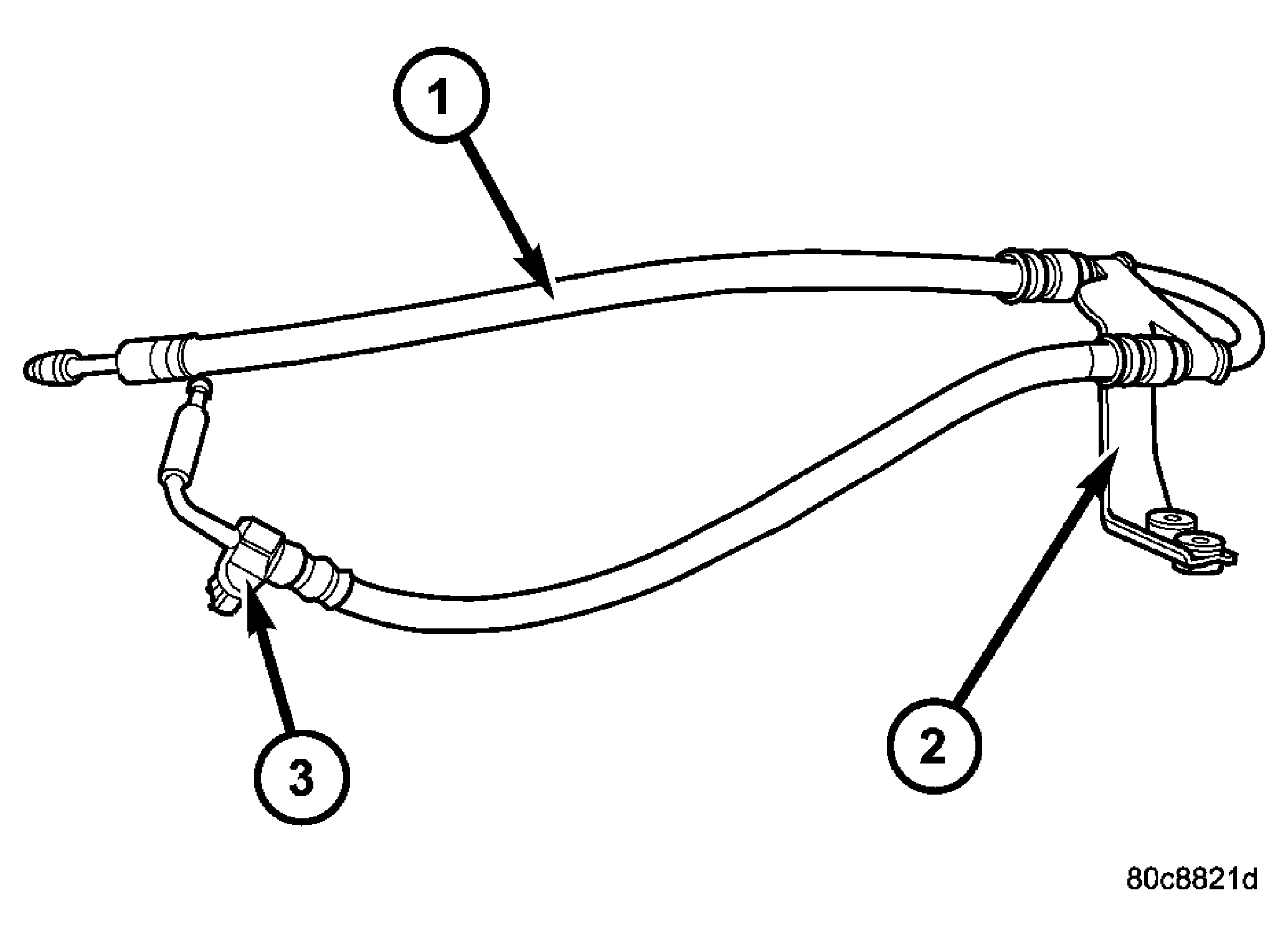

Fig 1: High Pressure Hose Assembly
GC0025260Courtesy of DAIMLERCHRYSLER CORP.
1 - HIGH PRESSURE POWER STEERING HOSE
2 - MOUNTING BRACKET
3 - POWER STEERING PRESSURE SWITCH (2.4L only)
  1. Install the pressure hose (1) to the vehicle. See Fig 1.

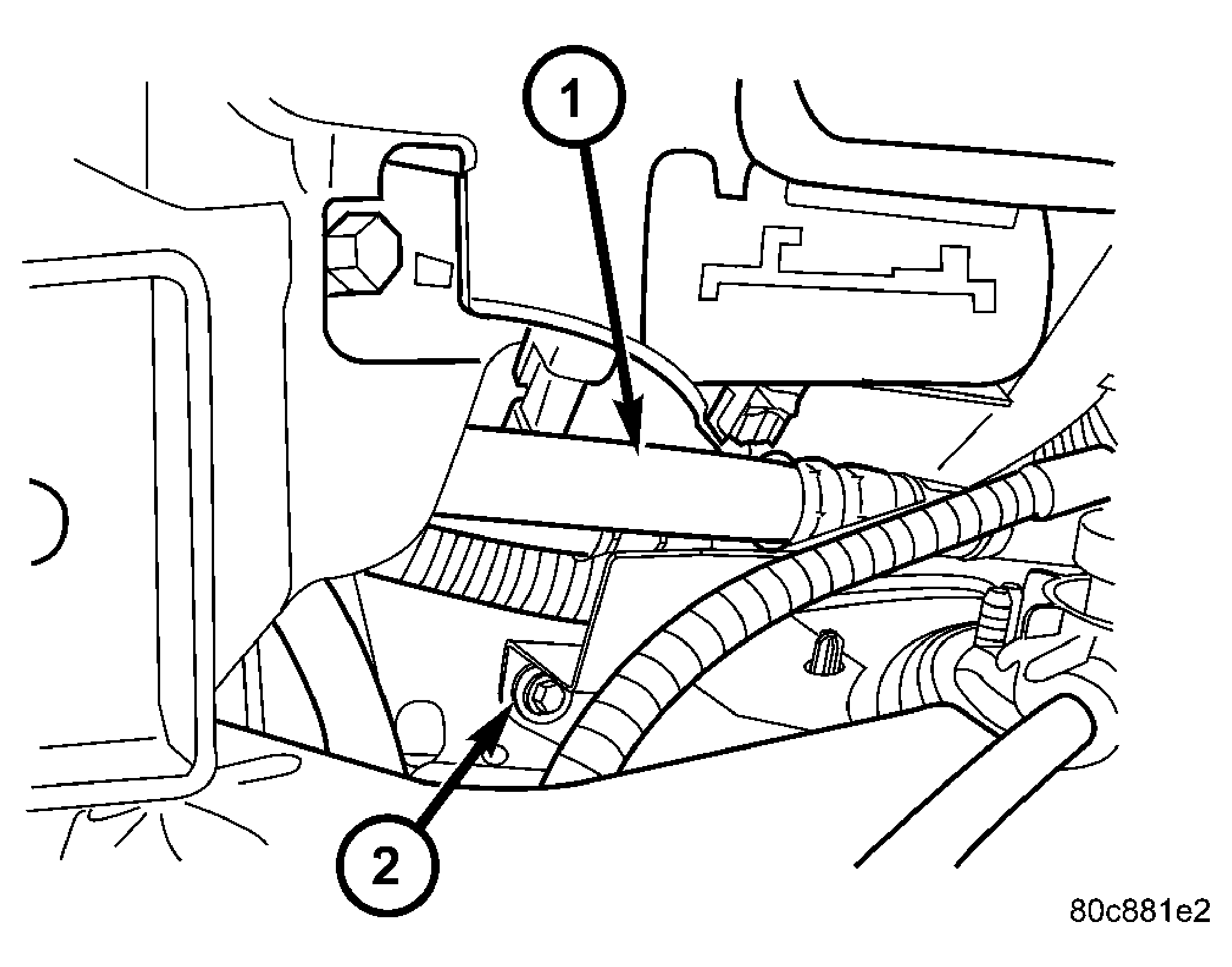

    Fig 2: Mounting Bracket
    GC0025258Courtesy of DAIMLERCHRYSLER CORP.
    1 - HIGH PRESSURE POWER STEERING HOSE
    2 - MOUNTING BRACKET
  2. Install the pressure hose mounting bracket bolts (2) behind the headlamp assembly. See Fig 2. Tighten to 12 N.m (9 ft.lbs.).
  3. Install the pressure hose to the gear. Tighten the hose to28 N.m (21 ft.lbs.).
  4. Install the pressure switch electrical connector 2.4L only  .

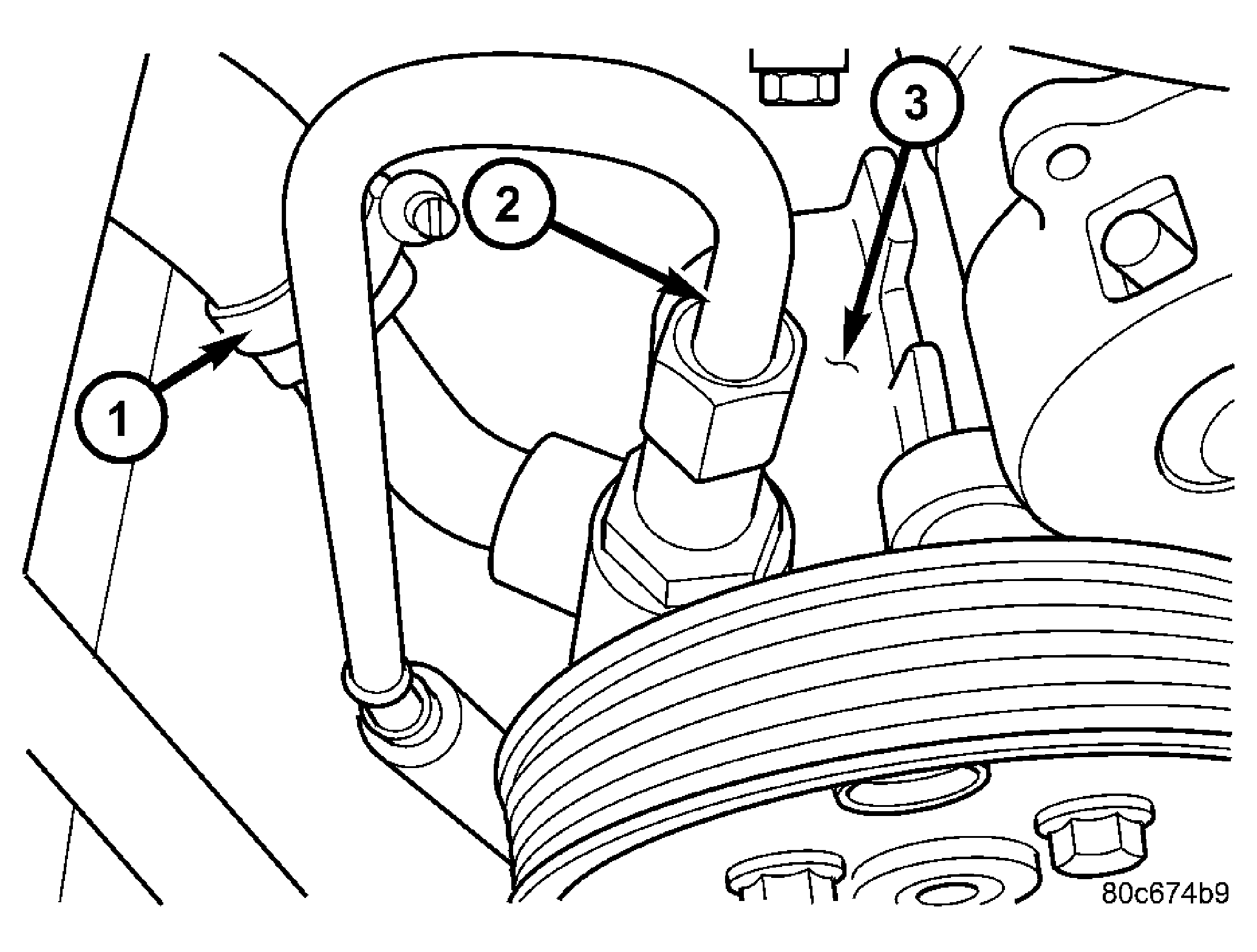

    Fig 3: Return & Pressure Hose
    GC0025259Courtesy of DAIMLERCHRYSLER CORP.
    1 - RETURN HOSE
    2 - HIGH PRESSURE HOSE
    3 - POWER STEERING PUMP
  5. Install the pressure hose (2) at the pump (3). See Fig 3. Tighten the hose to28 N.m (21 ft.lbs.).
  6. Install the serpentine belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
  7. Install the fan shroud.
  8. Install the fan (Refer to COOLING/ENGINE/RADIATOR FAN - INSTALLATION) .
  9. Install the radiator crossmember (Refer to BODY/EXTERIOR/RADIATOR CROSSMEMBER - INSTALLATION) .
  10. Refill the power steering fluid (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
