Fluid Cooler: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

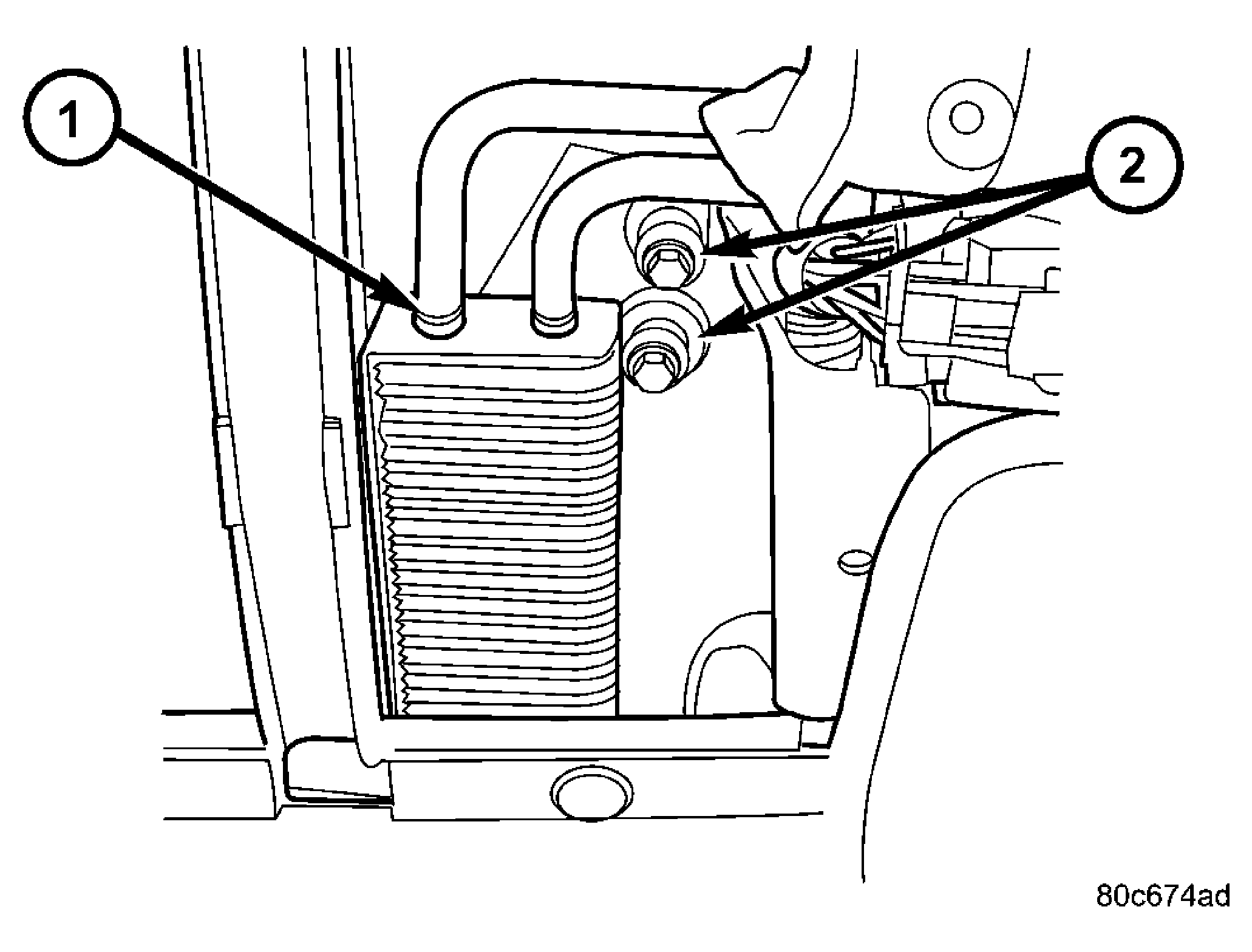

| 1 - FLUID COOLER |
| 2 - MOUNTING BOLTS |
- Install the cooler (1) to the vehicle.
- Install the two cooler mounting bolts (2). See Fig 1.
- Install the grille (Refer to BODY/EXTERIOR/GRILLE - INSTALLATION) .
- Install the return line at the reservoir.
- Install the return line at the gear.
- Refill the power steering fluid and check for leaks (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
