Key Cylinder: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

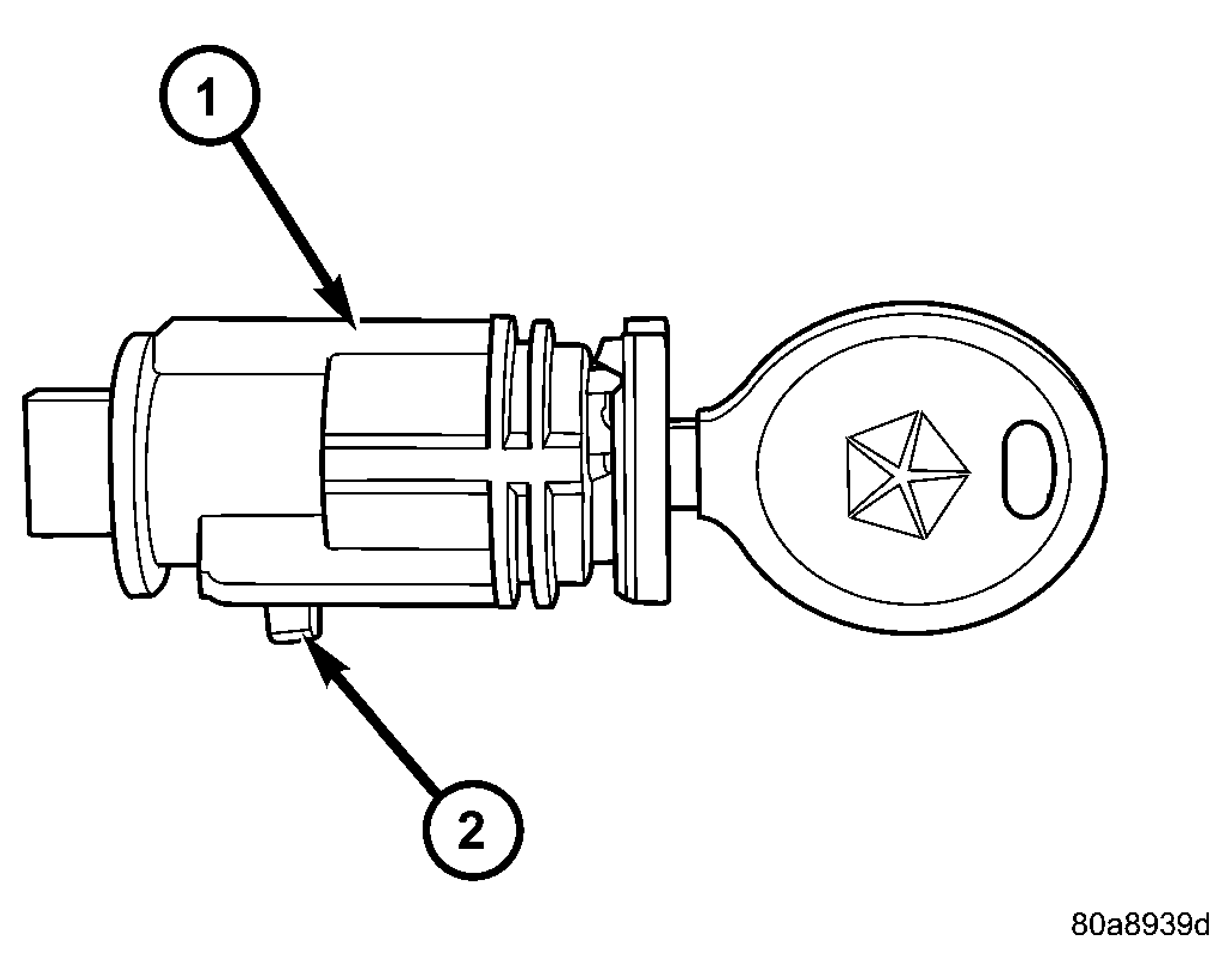

Fig 1: Key Cylinder Release Tang

Courtesy of DAIMLERCHRYSLER CORP.

1 - KEY CYLINDER

2 - RELEASE TANG

The ignition key must be in the key cylinder (1) for cylinder installation. See Fig 1.

Install the key cylinder (1) into the housing using care to align the end of the key cylinder with the ignition switch. See Fig 1.
Push the key cylinder (1) in until it clicks. See Fig 1.
Rotate the key to the insert position.
install the halo ring around the key cylinder housing.
Install the R.K.E. module.
Install the lower shroud cover.
