Section 505 (Exhaust System & Turbocharger): Muffler: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

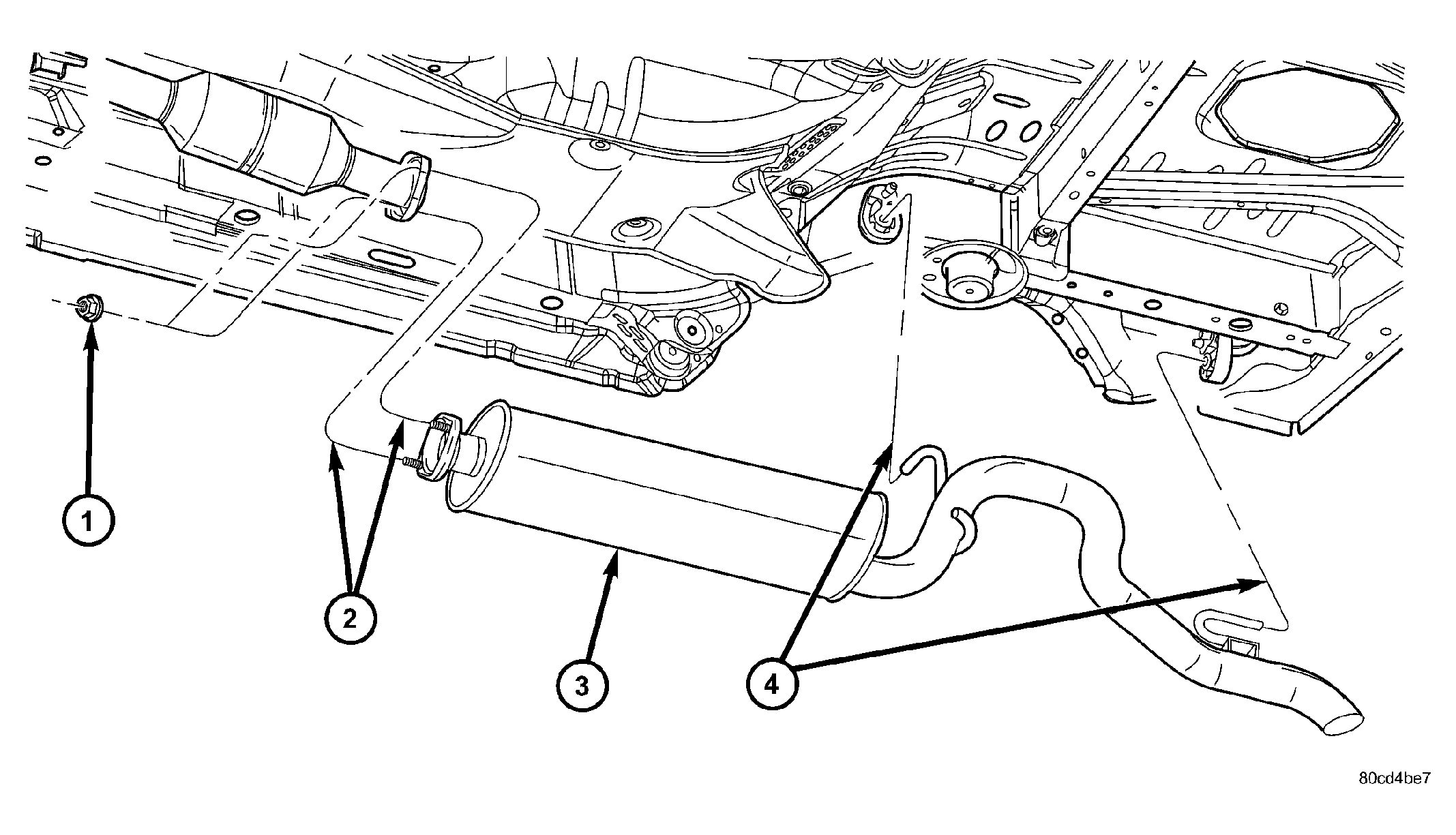

  1. Install muffler and tailpipe assembly in vehicle and attach to exhaust hangers. See Figure.
  2. Install muffler and tailpipe assembly to exhaust pipe retaining nuts. Torque nuts to 32.4N.m.
  3. Lower vehicle from hoist.
