Heat Shields: Description

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Heat shields are needed to protect both the vehicle and the environment from the high temperatures developed by the catalytic converter. The catalytic converter releases additional heat into the exhaust system. Under severe operating conditions, the temperature increases in the area of the converter. Such conditions can exist when the engine misfires or otherwise does not operate at peak efficiency. See Fig 1.

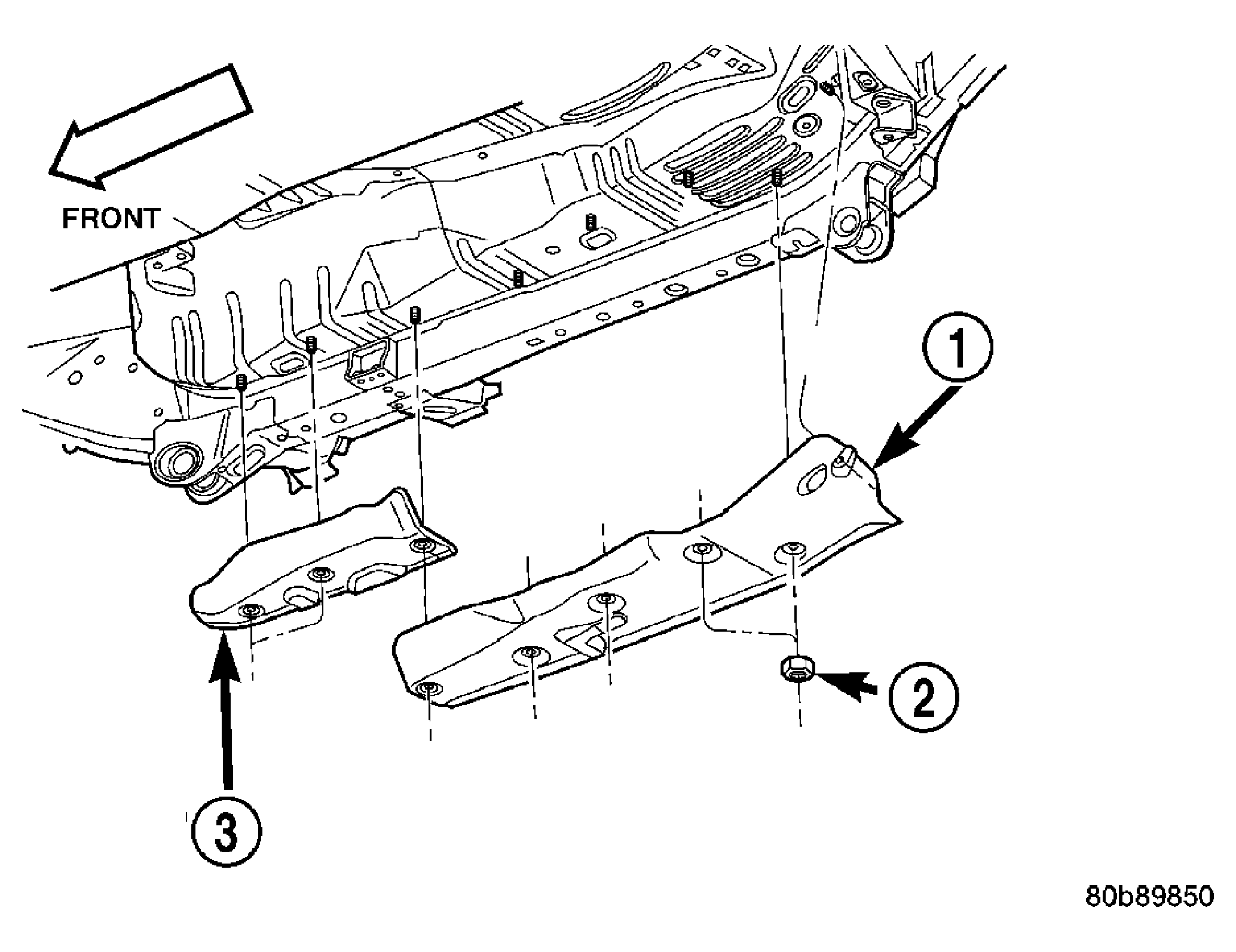

Fig 1: Front and Rear Floor Pan Heat Shields Typical

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR FLOOR PAN HEAT SHIELD

2 - HEAT SHIELD RETAINING NUTS

3 - FRONT FLOOR PAN HEAT SHIELD
