Swing Gate: Latch: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Install the latch and tighten the screws to 11 N.m (8 ft. lbs.).
Connect the electrical connector.
CAUTION: Make sure the latch wire harness is installed forward of the actuator rod.
Connect the actuator rod.
Insert a 5/32-inch hex-wrench through hole and into adjustment screw. Loosen screw. See Fig 1.
Operate outside handle several times to release any restriction because of misalignment.
Tighten adjustment screw to 3 N.m (30 in. lbs.)
Test handle for proper operation.
Install the trim panel and waterdam. (Refer to BODY/SWING GATE/TRIM PANEL - INSTALLATION) .

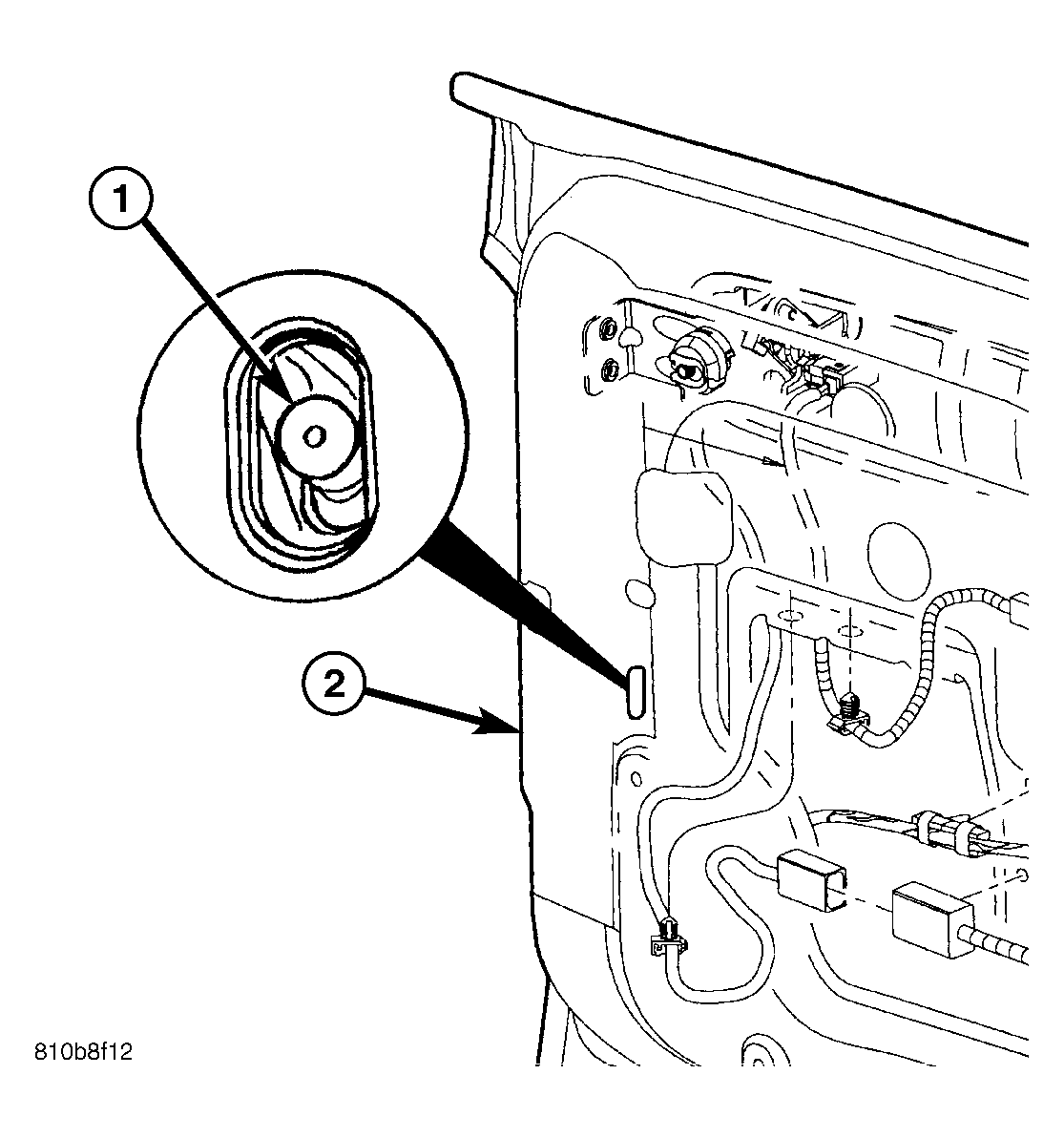

Fig 1: Latch Adjustment Screw

Courtesy of DAIMLERCHRYSLER CORP.

1 - ADJUSTMENT SCREW

2 - SWING GATE SHUT FACE
