Swing Gate: Hinge: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Install the hinges and install the inner and outer fasteners.
Tighten the outer fasteners to 31 N.m (23 ft. lbs.) using the sequence indicated. See Fig 1.
Tighten the inner fasteners to 31 N.m (23 ft. lbs.) using the sequence indicated. See Fig 2.
Install the swing gate. (Refer to BODY/SWING GATE/SWING GATE - INSTALLATION) .

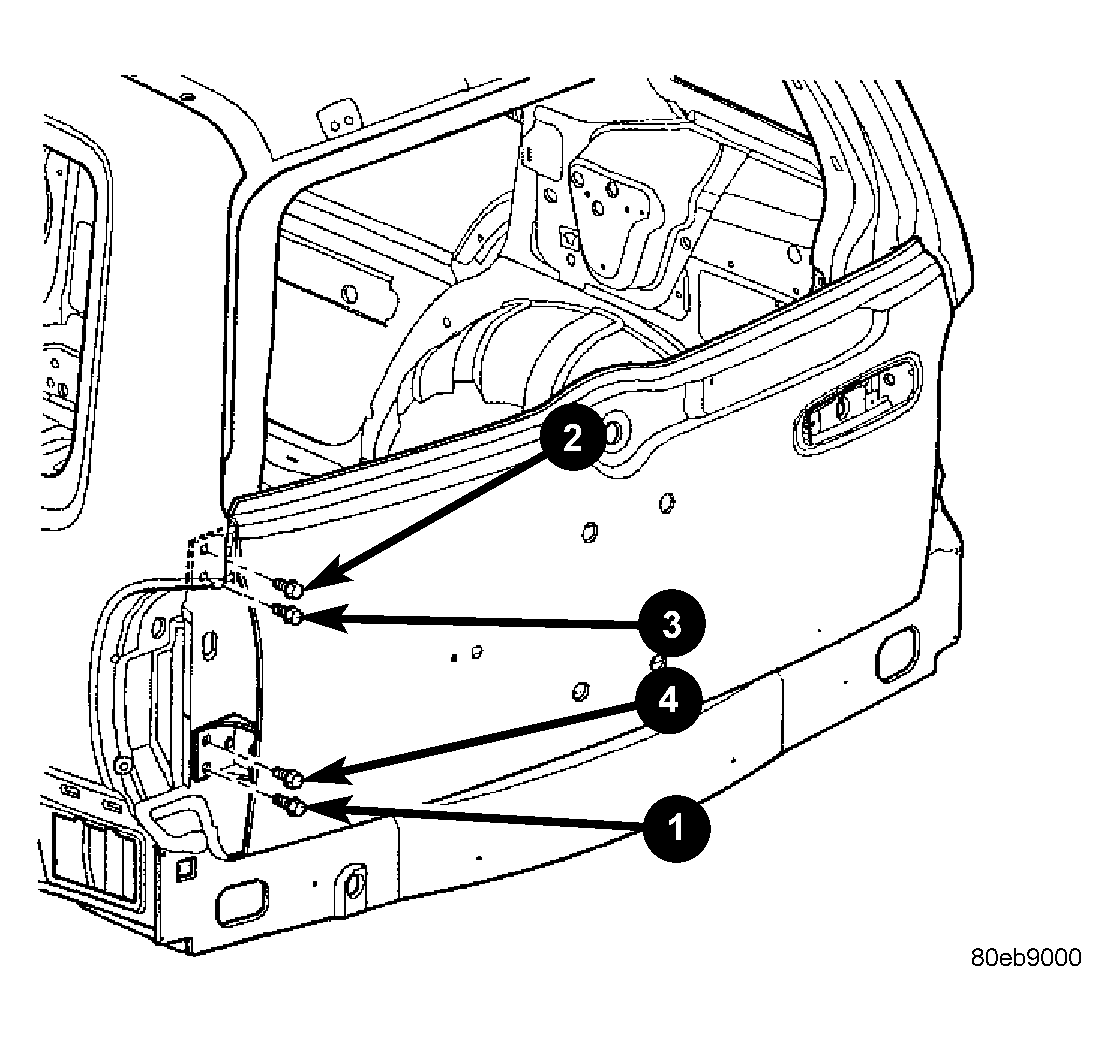

Fig 1: Hinge Fasteners/Outer Torque Sequence

Courtesy of DAIMLERCHRYSLER CORP.

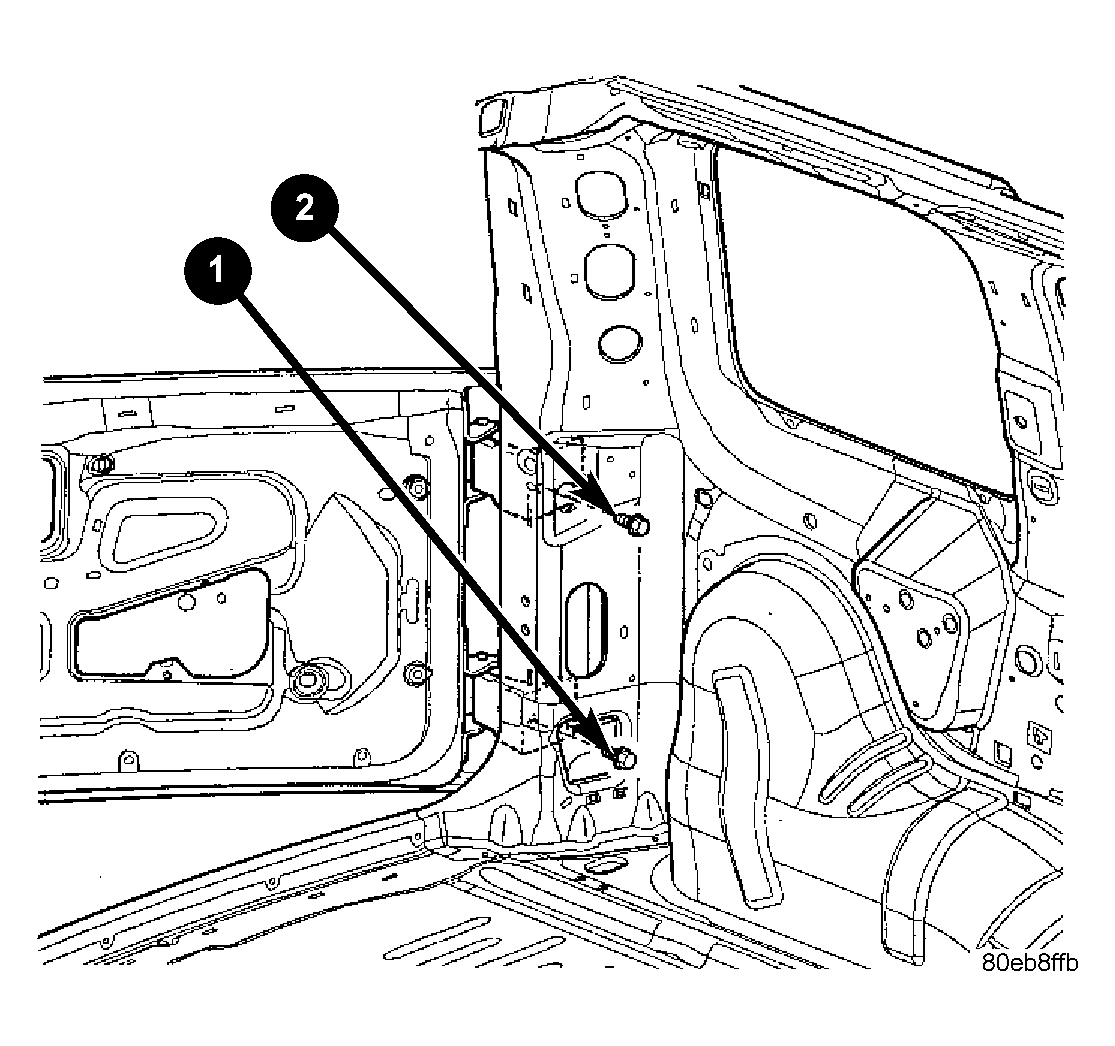

Fig 2: Hinge Fasteners/Inner Torque Sequence

Courtesy of DAIMLERCHRYSLER CORP.
