Flip-Up Glass Support Cylinder: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Open the flip-up glass and support.
- Using a small flat bladed tool, or equivalent, release the retaining clips while pulling the ball socket away from the ball stud. See Fig 1.
NOTE:
Lift the clips only enough to release the ball studs. See Fig 2.
- Remove the support cylinder.

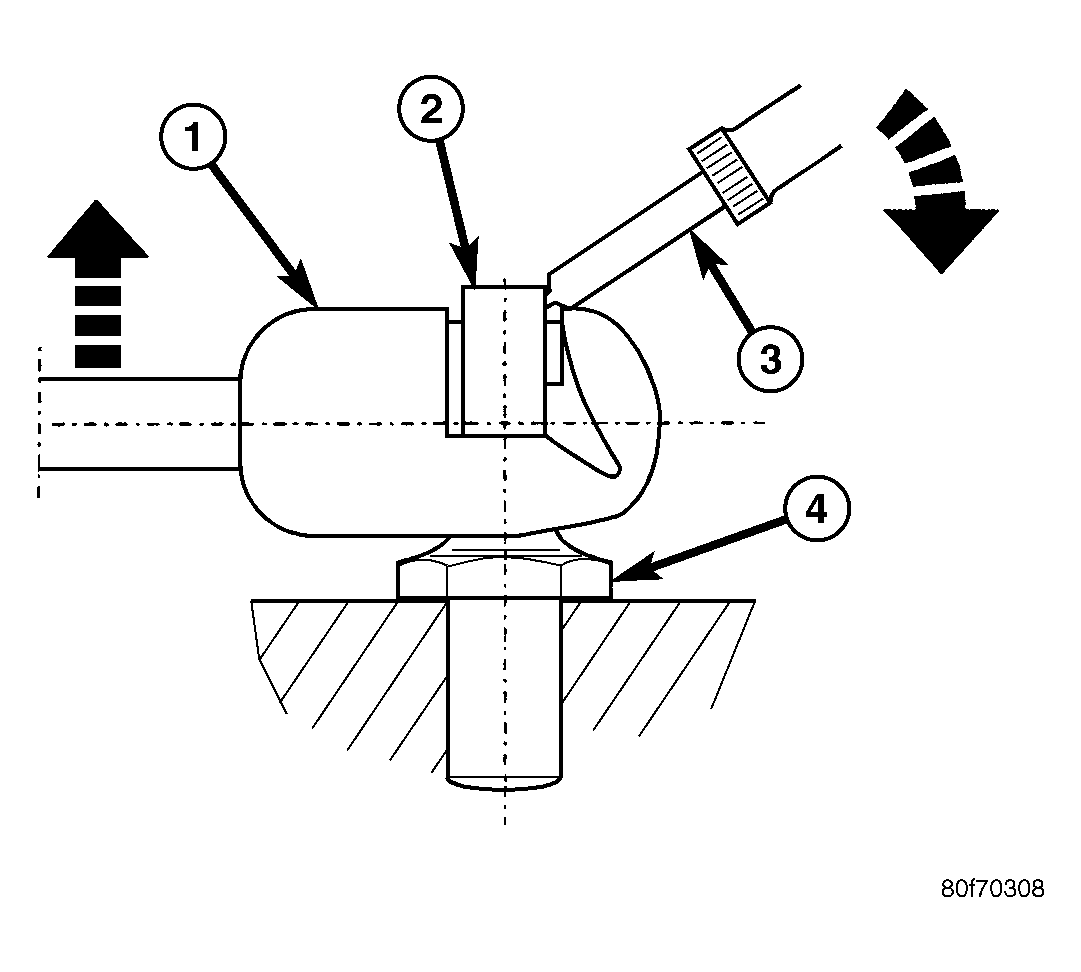

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - BALL SOCKET |
| 2 - RETAINING CLIP |
| 3 - FLAT BLADED TOOL |
| 4 - BALL STUD |

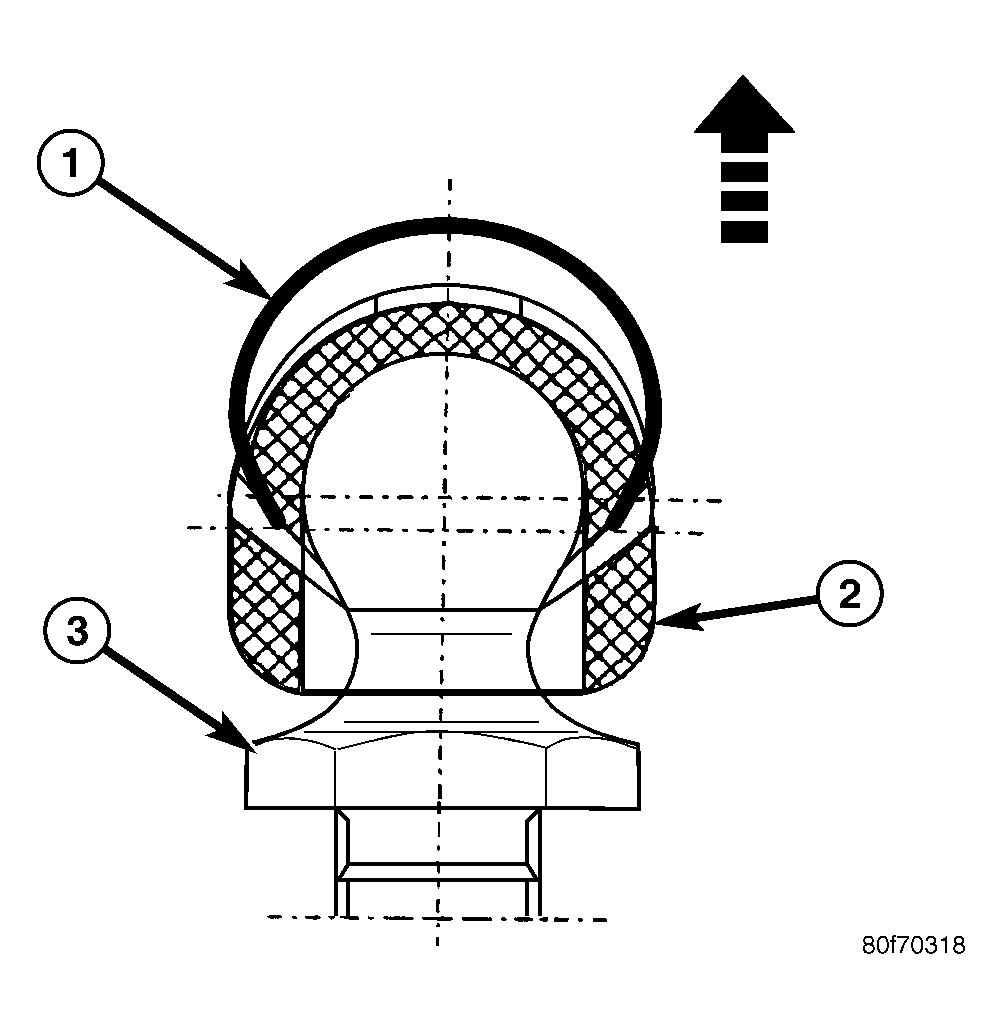

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - RETAINING CLIP |
| 2 - BALL SOCKET |
| 3 - BALL STUD |
