Flip-Up Glass - Hinge Cover: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Position the top of the hinge cover over the hinge and engage the cover tab. See Fig 1.
Rock the hinge cover down over the hinge and seat fully. Ensure both lower locking tabs snap into place.

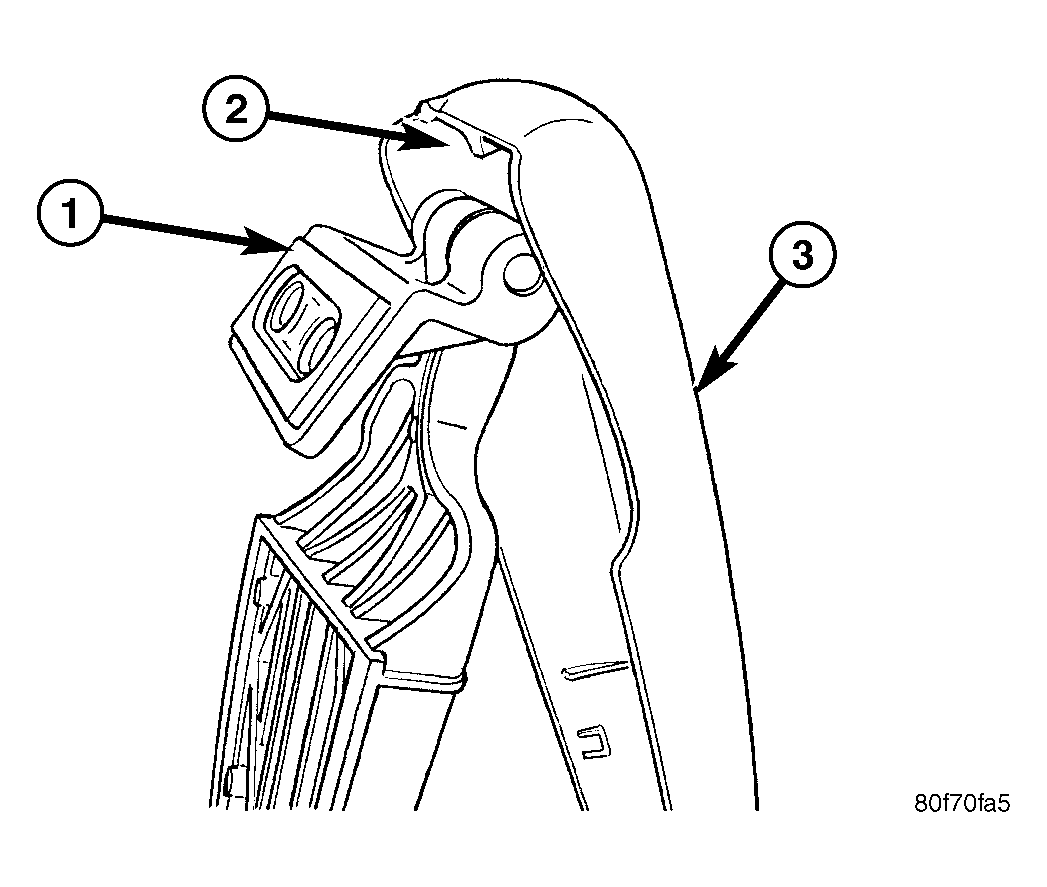

Fig 1: Hinge Cover Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - HINGE

2 - HINGE COVER TAB

3 - HINGE COVER
