Seat - Rear: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the outer seat belt anchors. (Refer to ELECTRICAL/RESTRAINTS/SEAT BELT & RETRACTOR - REMOVAL) .
Remove the inner seat belt buckles. (Refer to ELECTRICAL/RESTRAINTS/SEAT BELT BUCKLE - REMOVAL) .
Remove the center seat belt anchor. (Refer to ELECTRICAL/RESTRAINTS/SEAT BELT & RETRACTOR - REMOVAL) .
Remove the remaining rear seat fasteners. See Fig 1.
Remove the front bolts. See Fig 2.
Fold down the seat backs and remove the seat assembly through the rear door.

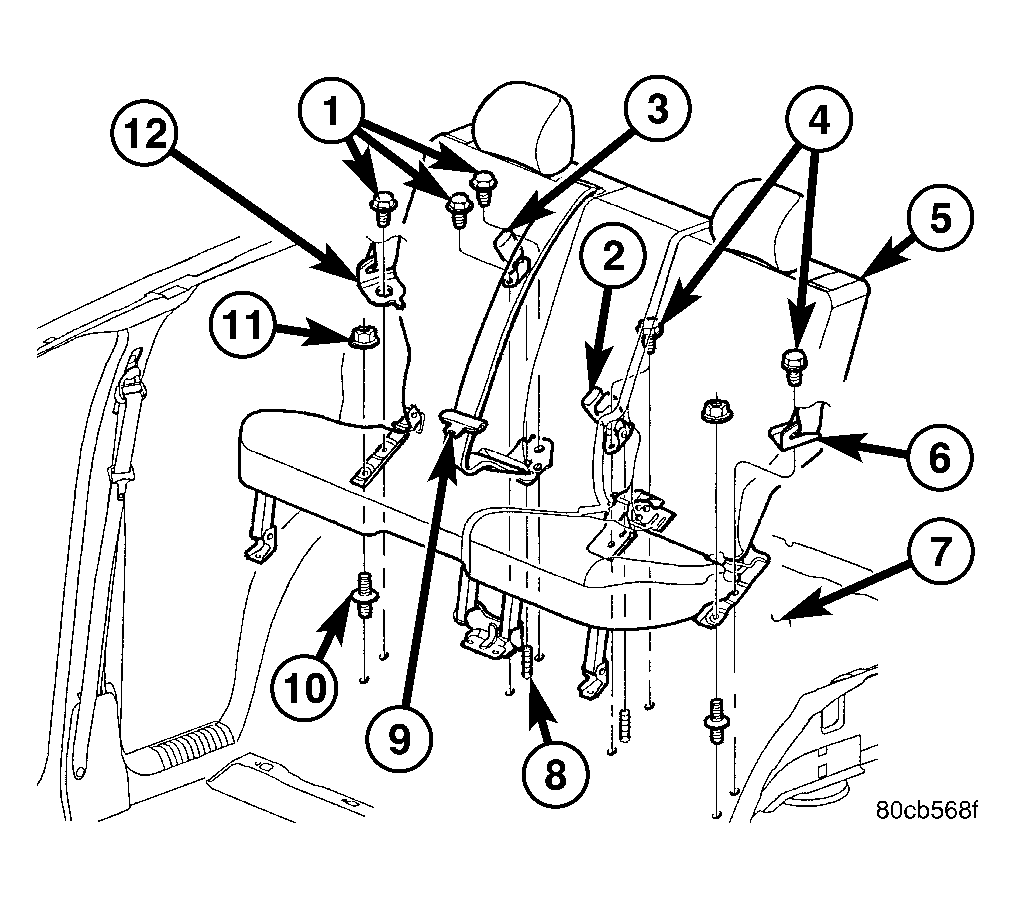

Fig 1: Rear Seat Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - SEAT BELT ANCHOR BOLTS

2 - BELT BUCKLES

3 - BELT BUCKLE

4 - SEAT BELT ANCHOR BOLTS

5 - REAR SEAT ASSEMBLY

6 - SEAT BELT ANCHOR

7 - FLOOR PAN

8 - STUDS

9 - CENTER SEAT BELT

10 - FRONT STUDS

11 - NUTS (2)

12 - SEAT BELT ANCHOR

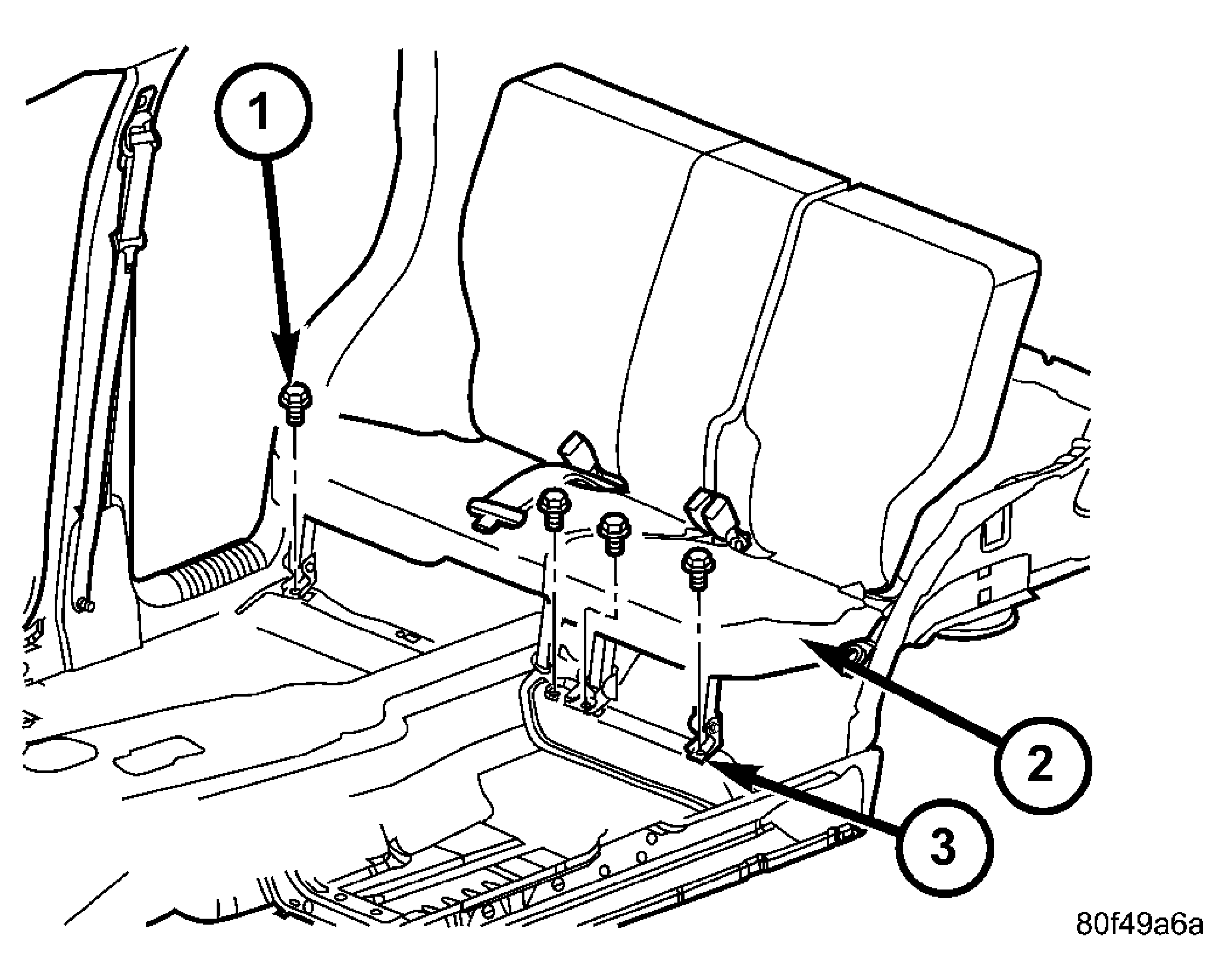

Fig 2: Rear Seat - Front Attachments

Courtesy of DAIMLERCHRYSLER CORP.

1 - BOLTS (4)

2 - REAR SEAT ASSEMBLY

3 - SEAT LEGS
