Rear View Mirror: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- If equipped, disconnect mirror harness connector.

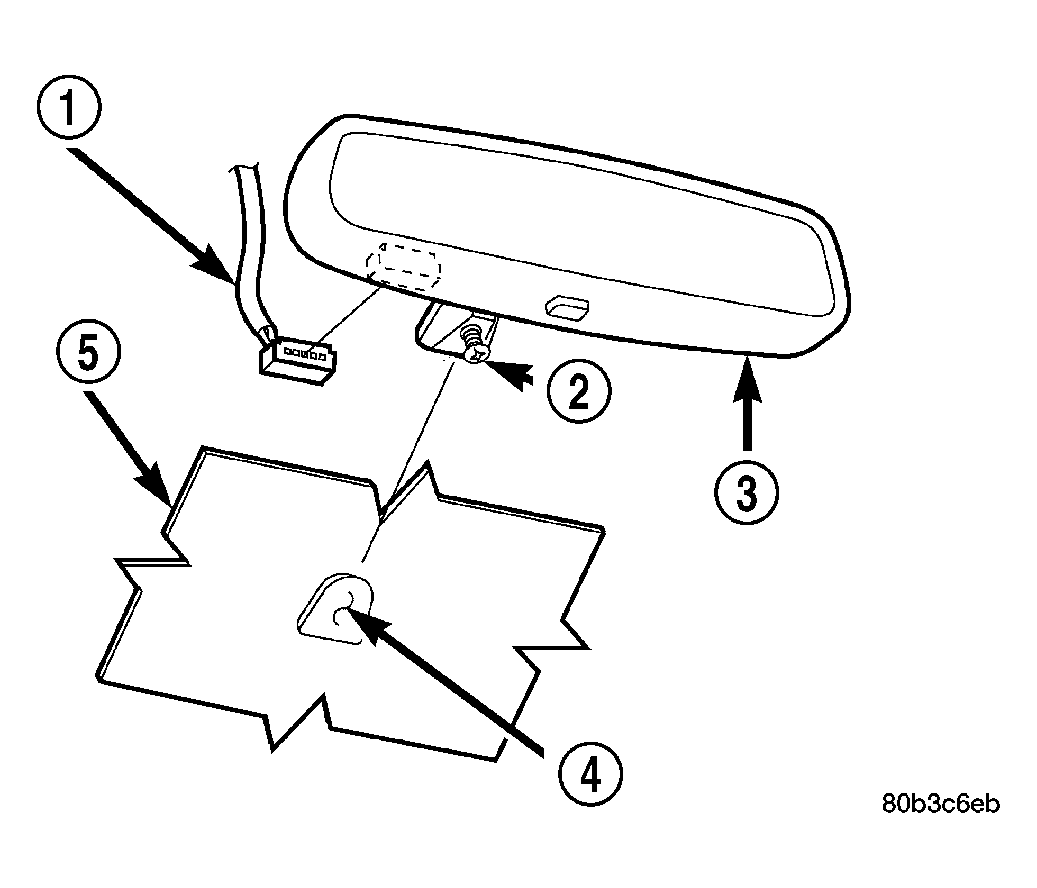

- Loosen the mirror base setscrew. See Fig 1.
- Slide the mirror base upward and off the bracket.
| 1 - CONNECTOR |
| 2 - SCREW |
| 3 - REAR VIEW MIRROR |
| 4 - SUPPORT BUTTON |
| 5 - WINDSHIELD |
