Section 504 (Body - Interior & Exterior): Hood: Latch: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the three bolts from the top of the grille opening reinforcement. See Fig 1.
Carefully pull the grille opening reinforcement forward and remove the two latch nuts.
Disconnect the release cable.

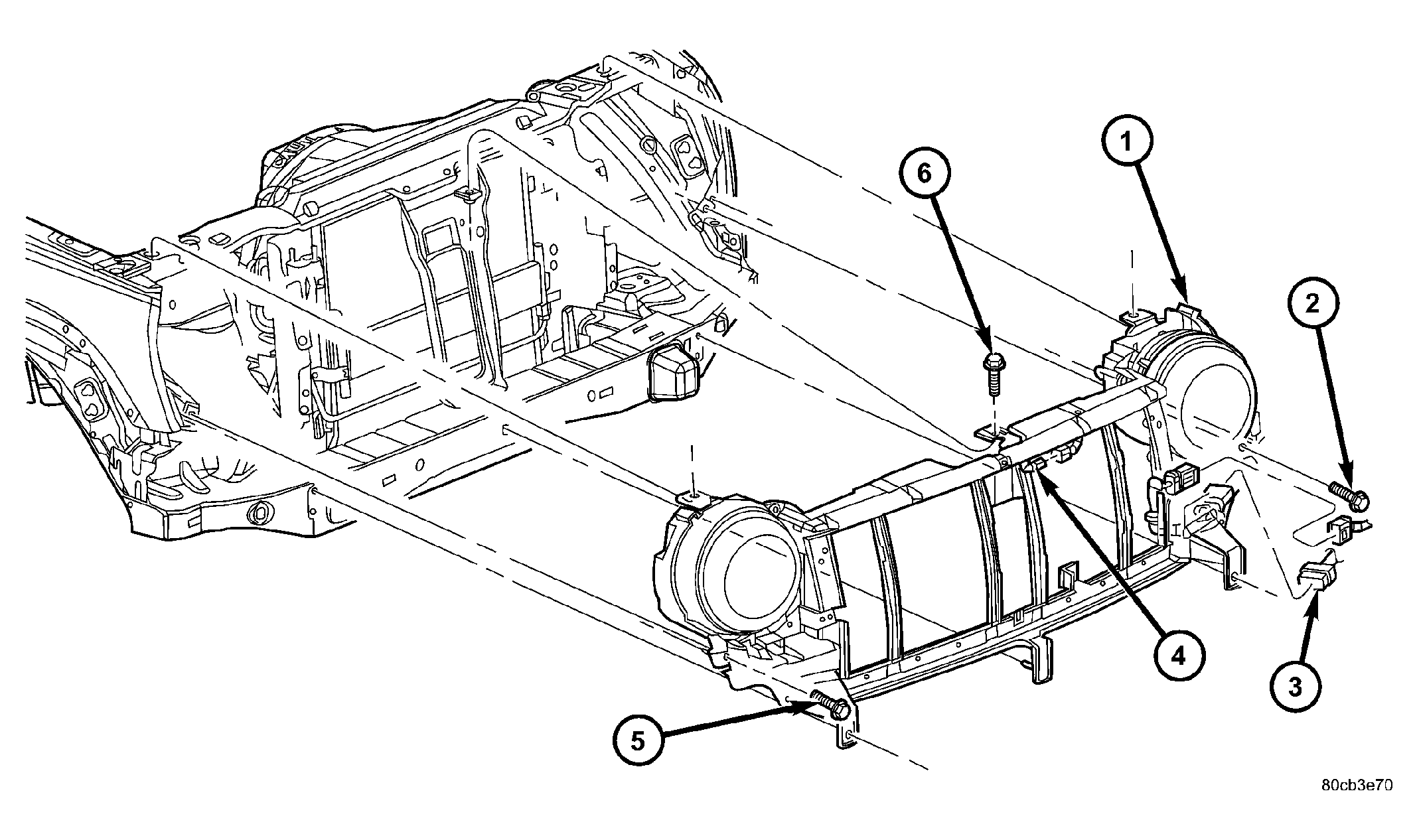

Fig 1: Grille Opening Reinforcement

Courtesy of DAIMLERCHRYSLER CORP.

1 - GRILLE OPENING REINFORCEMENT

2 - BOLTS (3)

3 - ELECTRICAL CONNECTORS

4 - ELECTRICAL CONNECTOR

5 - BOLTS (3)

6 - BOLT (1)
