Side View Mirror: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trim panel. (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
Disconnect the electrical connector. See Fig 1.
Remove the three nuts and remove the mirror assembly.

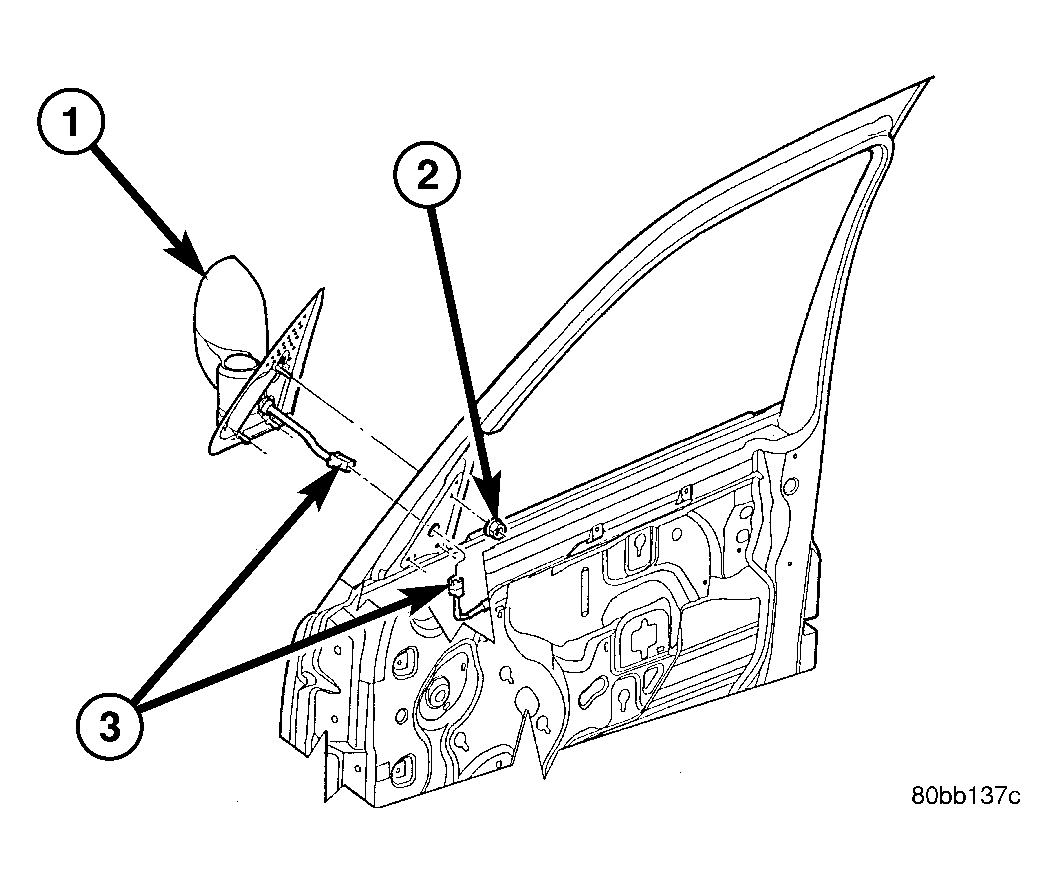

Fig 1: Side View Mirror

Courtesy of DAIMLERCHRYSLER CORP.

1 - MIRROR ASSEMBLY

2 - NUTS (3)

3 - ELECTRICAL CONNECTOR
