Rock Rail: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

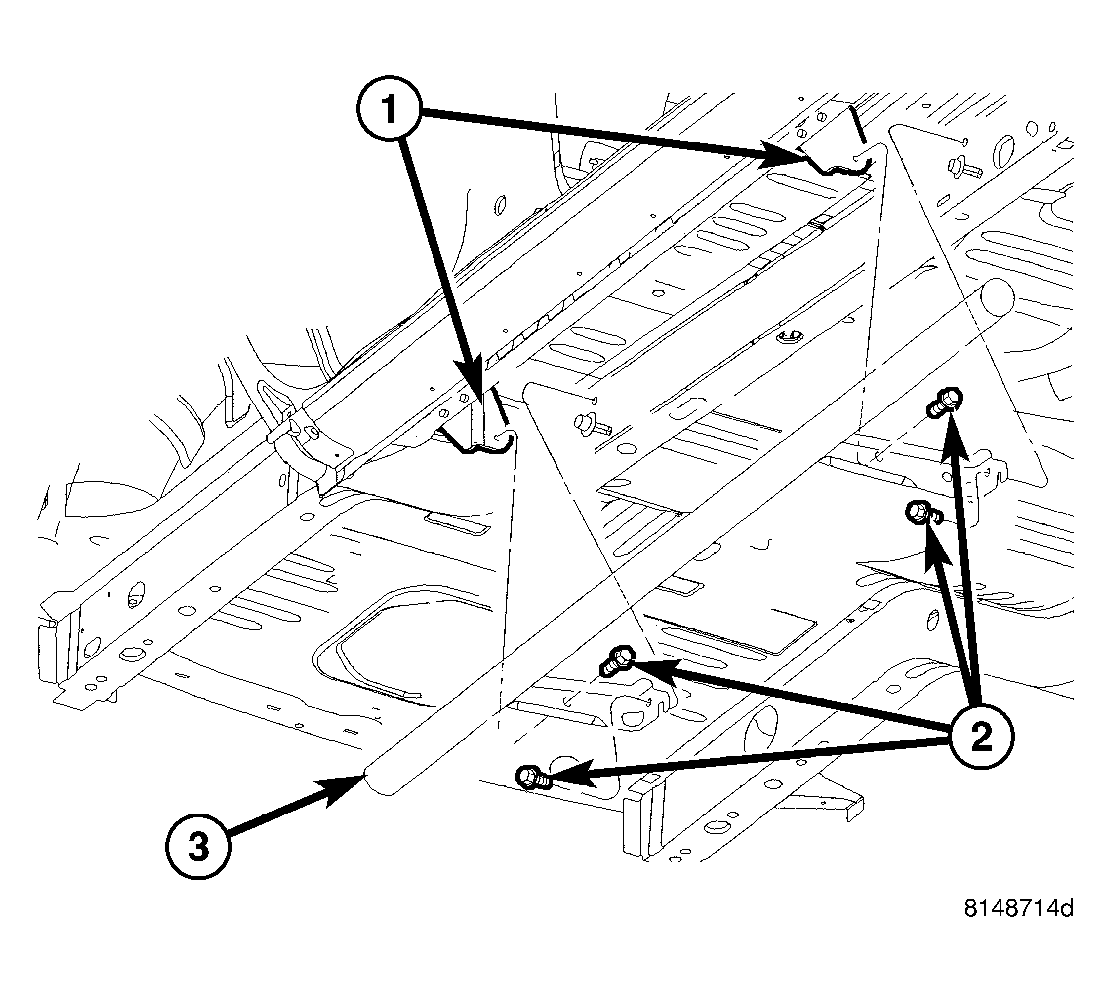

Fig 1: Rock Rail

Courtesy of DAIMLERCHRYSLER CORP.

1 - SUPPORT BRACKETS

2 - BOLTS (4)

Remove the bolts (2) and remove the rock rail. See Fig 1.

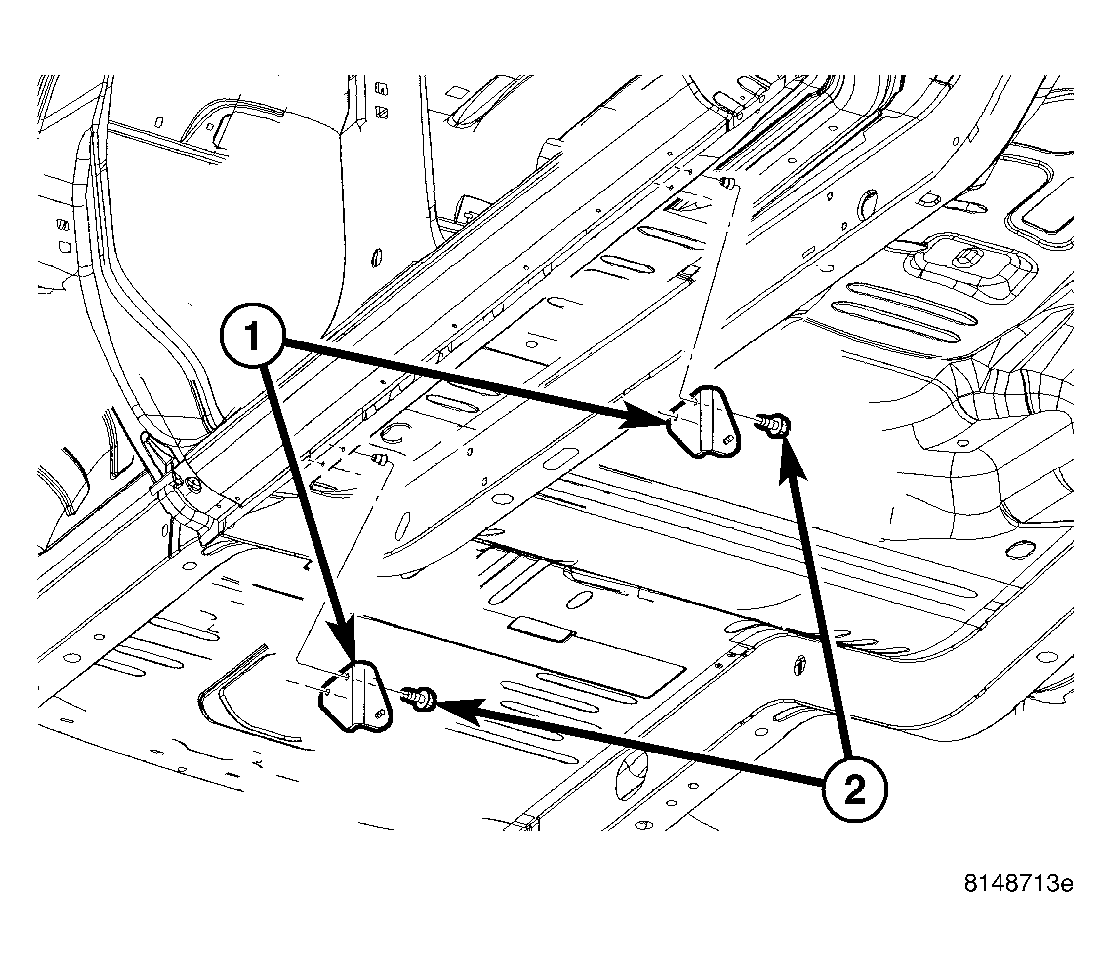

Fig 2: Rock Rail Sill Brackets
Courtesy of DAIMLERCHRYSLER CORP.

1 - SUPPORT BRACKETS

2 - BOLTS (2 PER BRACKET)
Remove the bolts (2) and remove the brackets. See Fig 2.
