Window Regulator - Power: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the waterdam. (Refer to BODY/DOORS - REAR/WATERDAM - REMOVAL) .
Raise the glass and line up the lift plate clip with the hole in the door panel shown. See Fig 1.
Using a long flat blade or hook type tool, disengage the clip attaching glass retainer to regulator lift plate.
Disconnect the glass from the regulator lift plate and reinstall the clip.
Secure the glass in the up position using a wood wedge, tape or equivalent.
Remove the bolts. See Fig 2.
Disconnect the runout tube clip and remove the regulator.
Disconnect the electrical connector.

Fig 1: Door Glass Position

Courtesy of DAIMLERCHRYSLER CORP.

1 - GLASS DIVISION BAR

2 - DOOR PANEL SIGHT HOLE

3 - DOOR GLASS

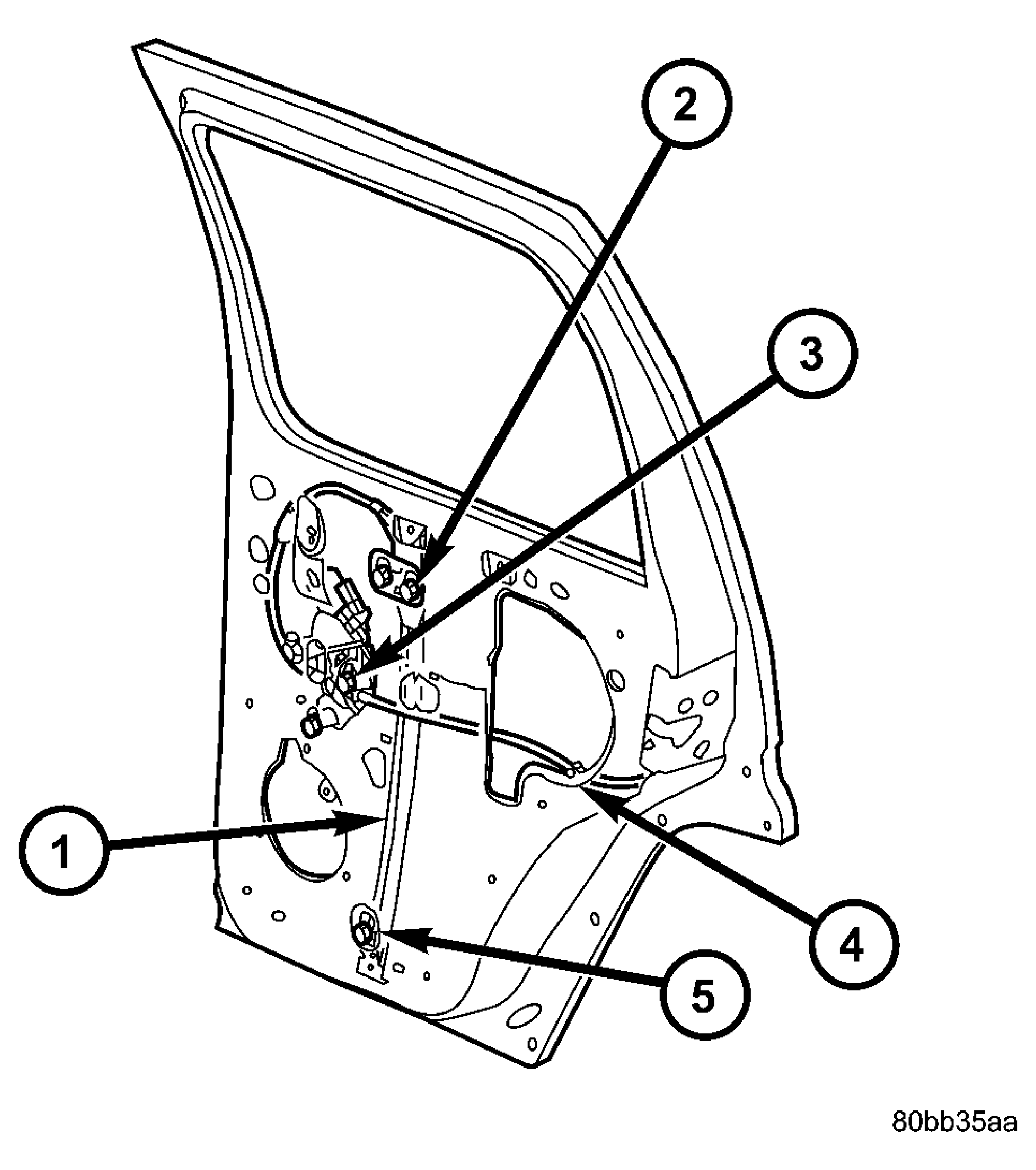

Fig 2: Window Regulator - Rear

Courtesy of DAIMLERCHRYSLER CORP.

1 - REGULATOR ASSEMBLY

2 - BOLTS (2)

3 - BOLTS (2)

4 - RUNOUT TUBE CLIP

5 - BOLT
