Glass Run Channel: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the outer belt molding. (Refer to BODY/WEATHERSTRIP/SEALS/REAR DOOR OUTER BELT MOLDING - REMOVAL) .
- Remove the door glass. (Refer to BODY/DOORS - REAR/DOOR GLASS - REMOVAL) .

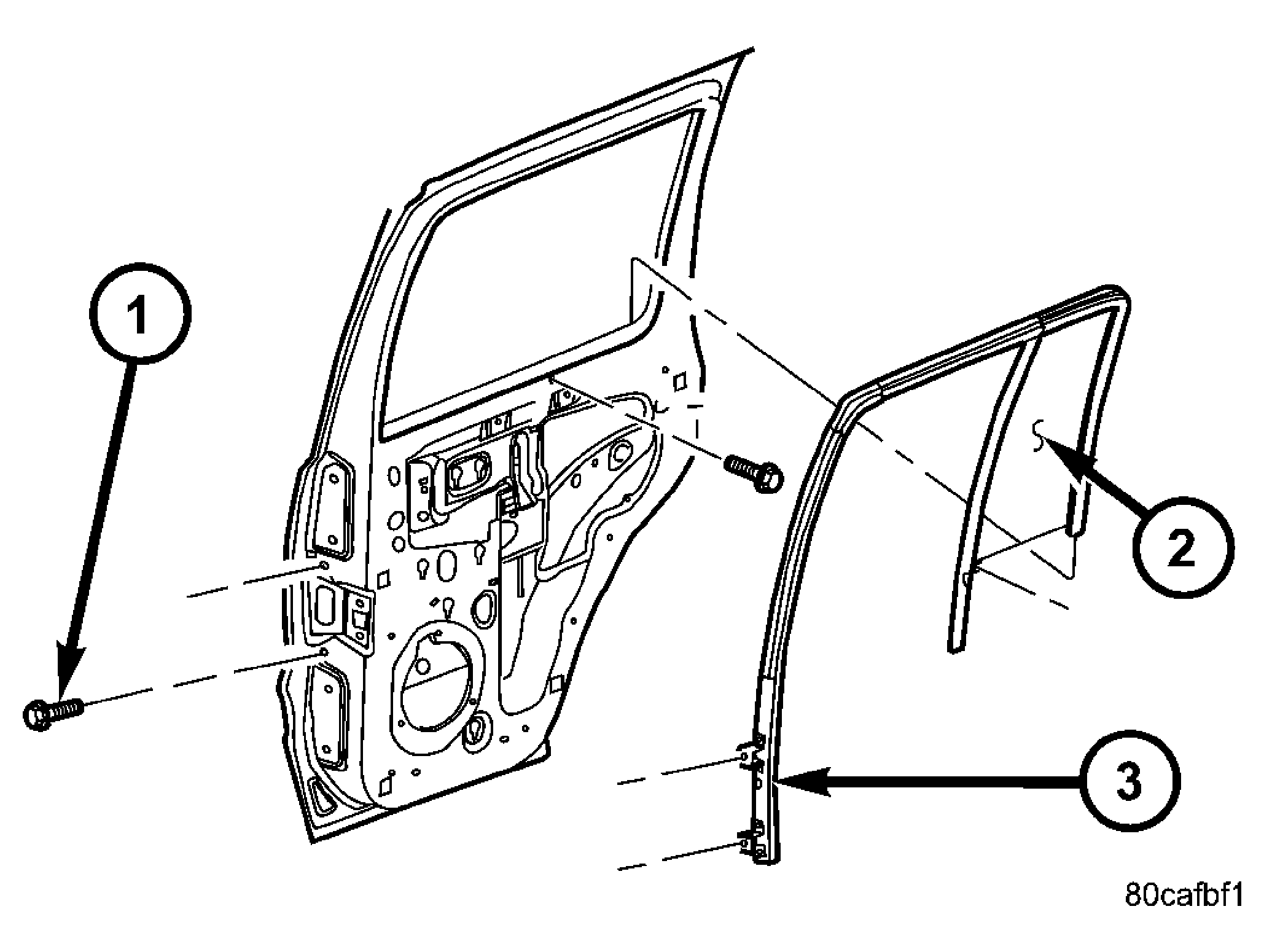

- Remove the front and rear bolts. See Fig 1.
- Peal the weatherstrip and quarter glass out of the door frame and remove the run channel through the window opening as an assembly.
| 1 - BOLTS (3) |
| 2 - QUARTER GLASS |
| 3 - GLASS RUN CHANNEL ASSEMBLY |
