Latch Striker: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolts. See Fig 1.
Remove the latch striker and the spacer, if equipped.

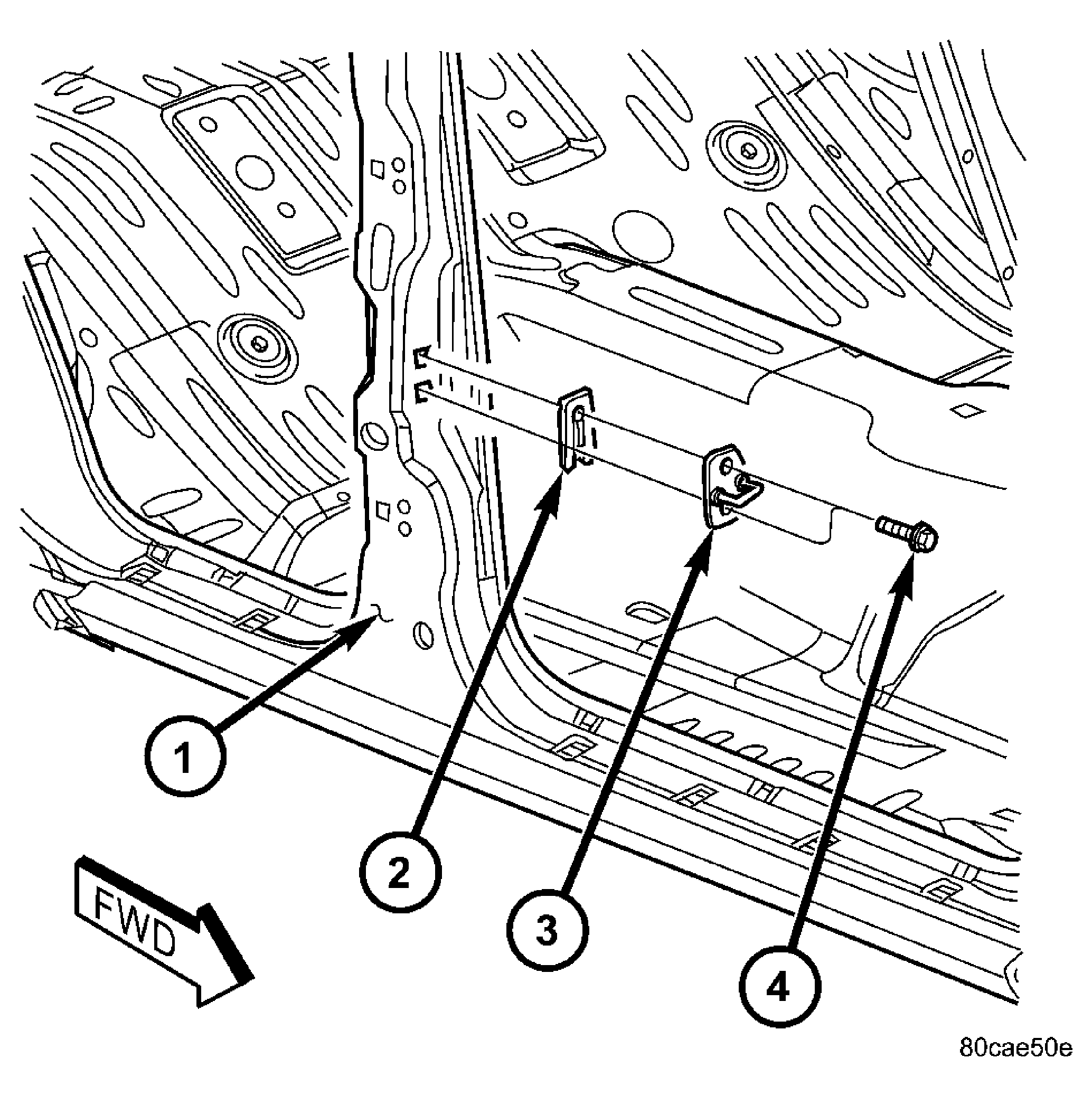

Fig 1: Latch Striker

GC0025749

Courtesy of DAIMLERCHRYSLER CORP.

1 - B-PILLAR

2 - SPACER

3 - STRIKER

4 - BOLTS (2)
