Rear Floor Pan Assembly

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

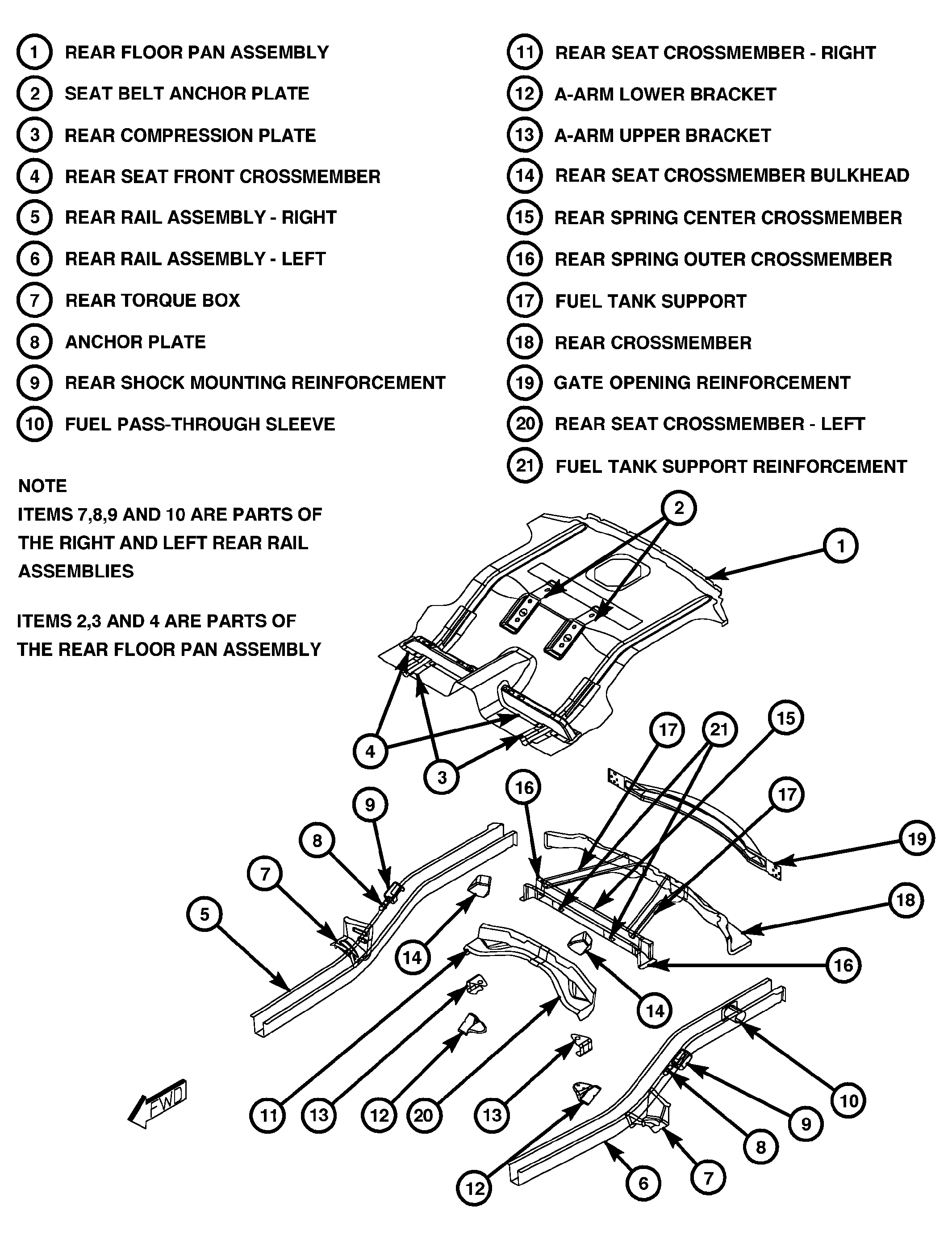

Fig 1: Rear Floor Pan Assembly

Courtesy of DAIMLERCHRYSLER CORP.

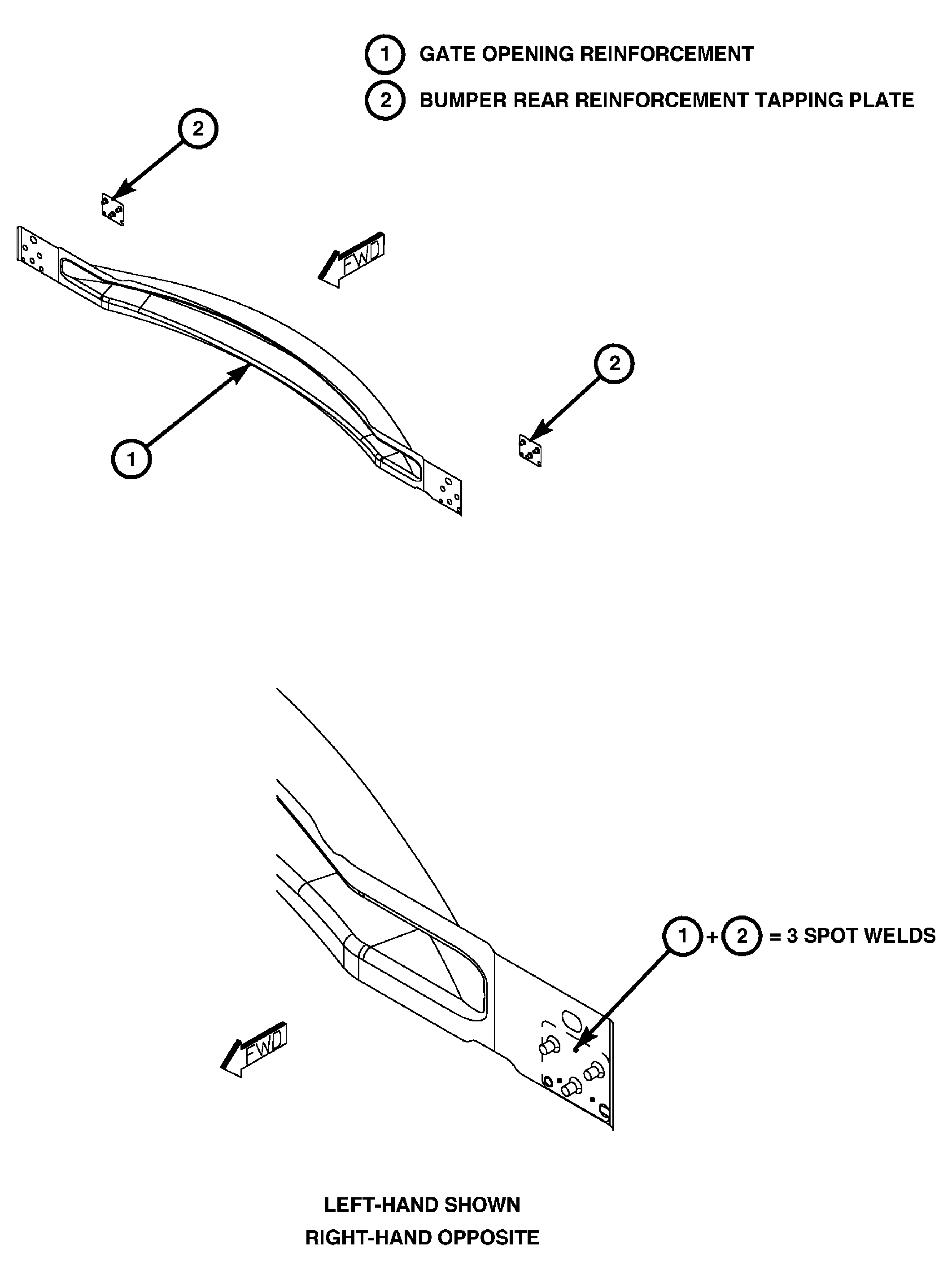

Fig 2: Bumper And Swing Gate Reinforcement

Courtesy of DAIMLERCHRYSLER CORP.

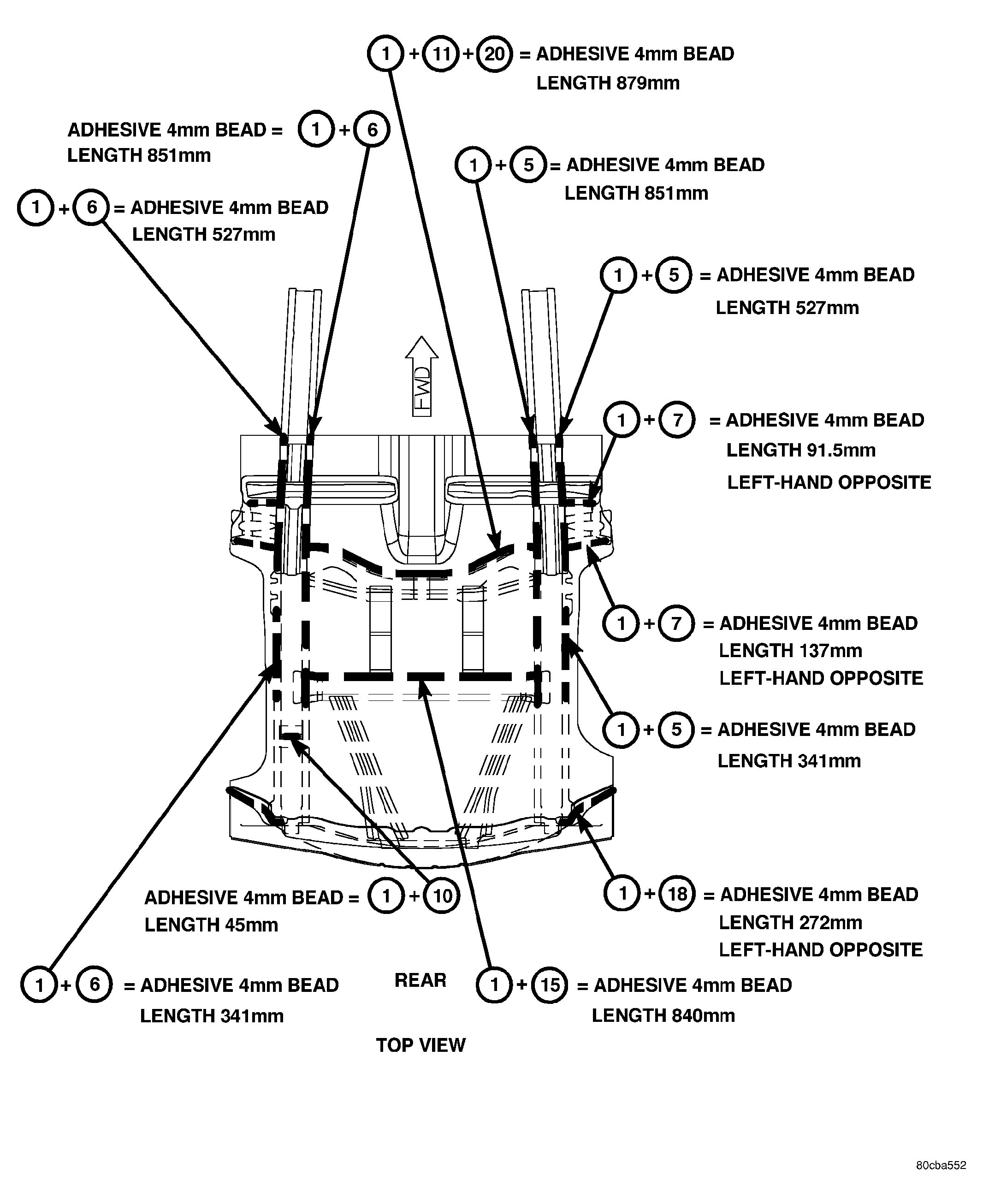

Fig 3: Rear Floor Pan

Courtesy of DAIMLERCHRYSLER CORP.

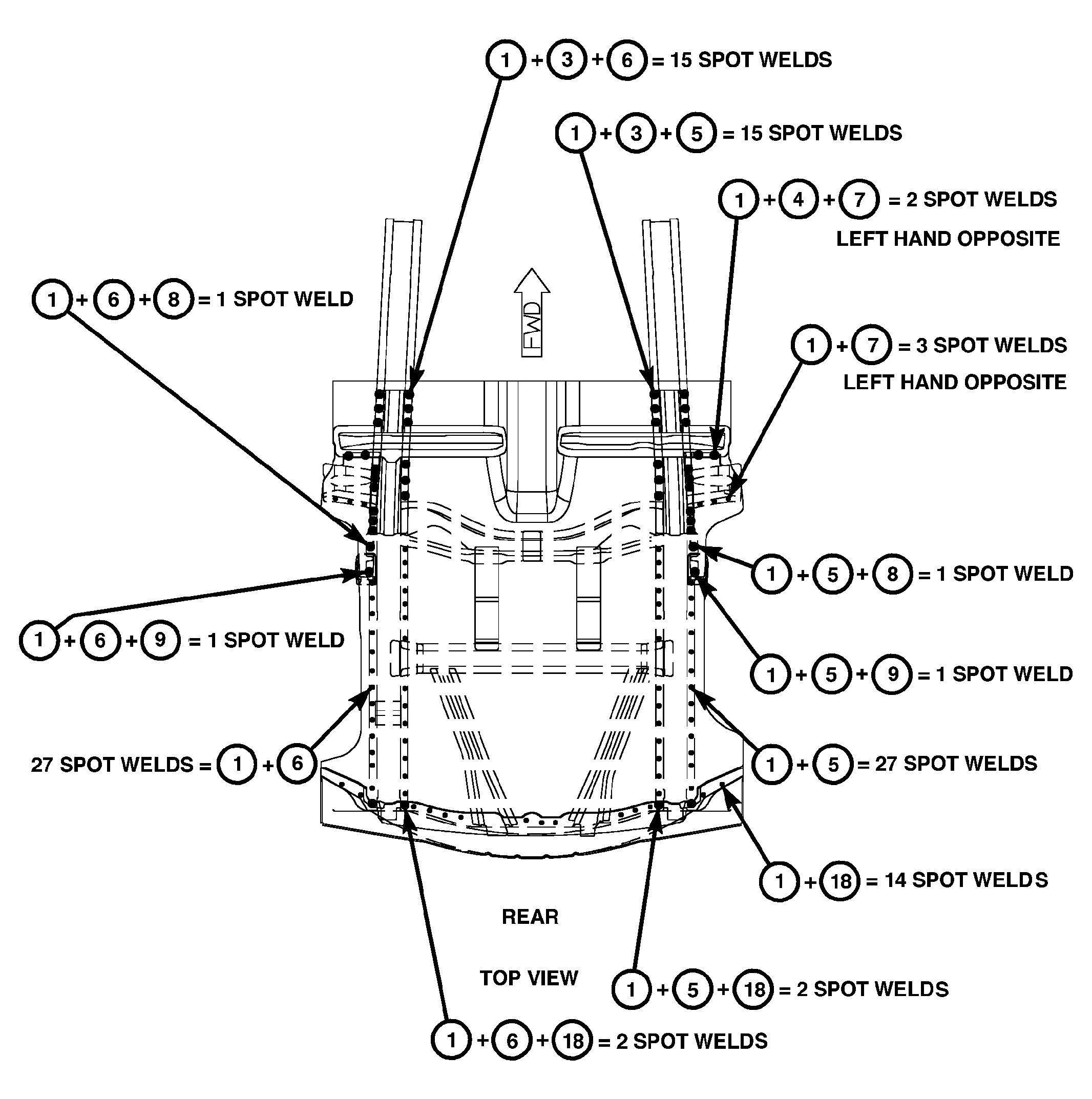

Fig 4: 007 Rear Floor Pan

Courtesy of DAIMLERCHRYSLER CORP.

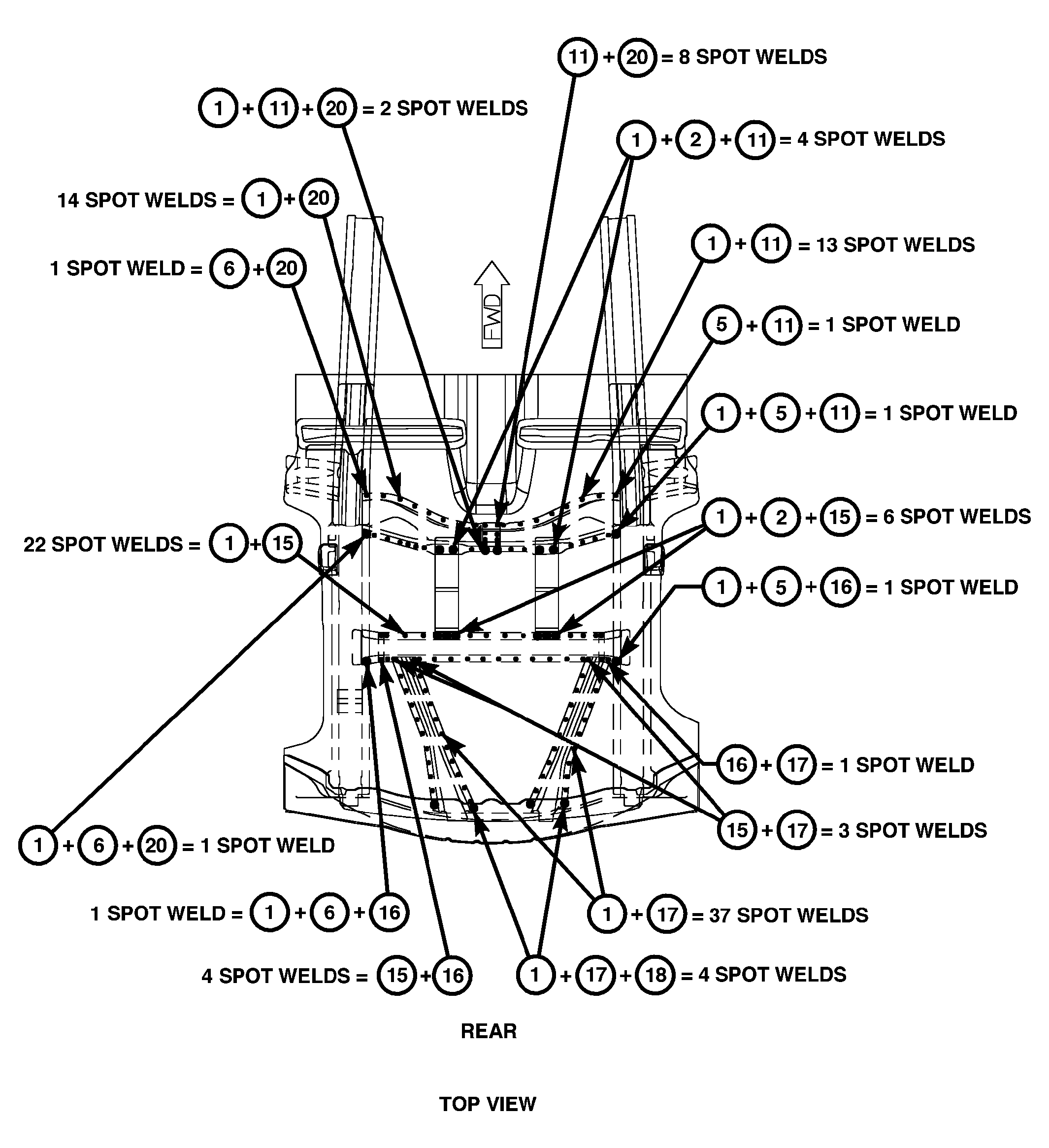

Fig 5: Rear Floor Pan

Courtesy of DAIMLERCHRYSLER CORP.

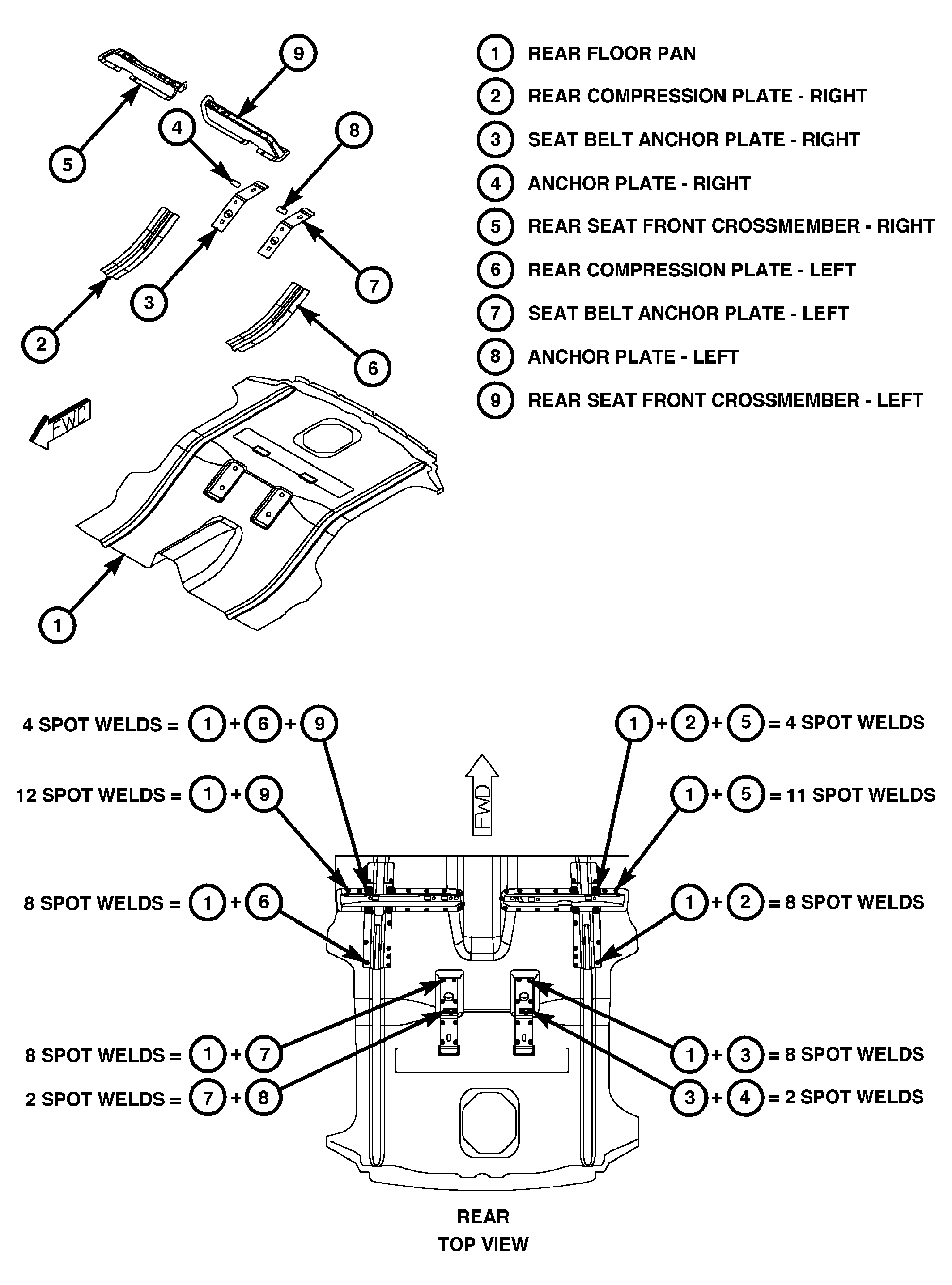

Fig 6: Rear Floor Pan

Courtesy of DAIMLERCHRYSLER CORP.

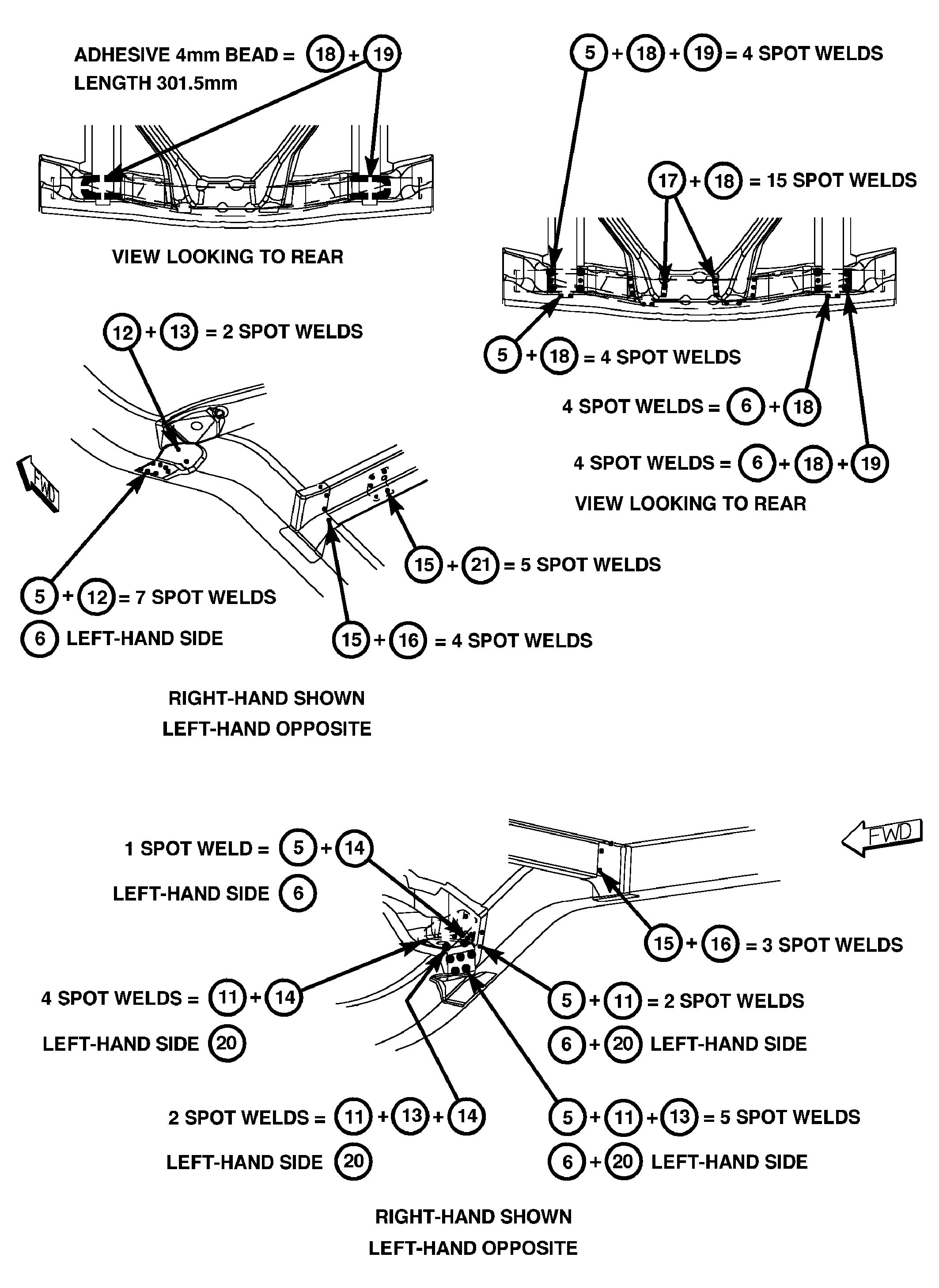

Fig 7: Rear Crossmembers And Reinforcements

Courtesy of DAIMLERCHRYSLER CORP.
