Full Floor Pan Assembly

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

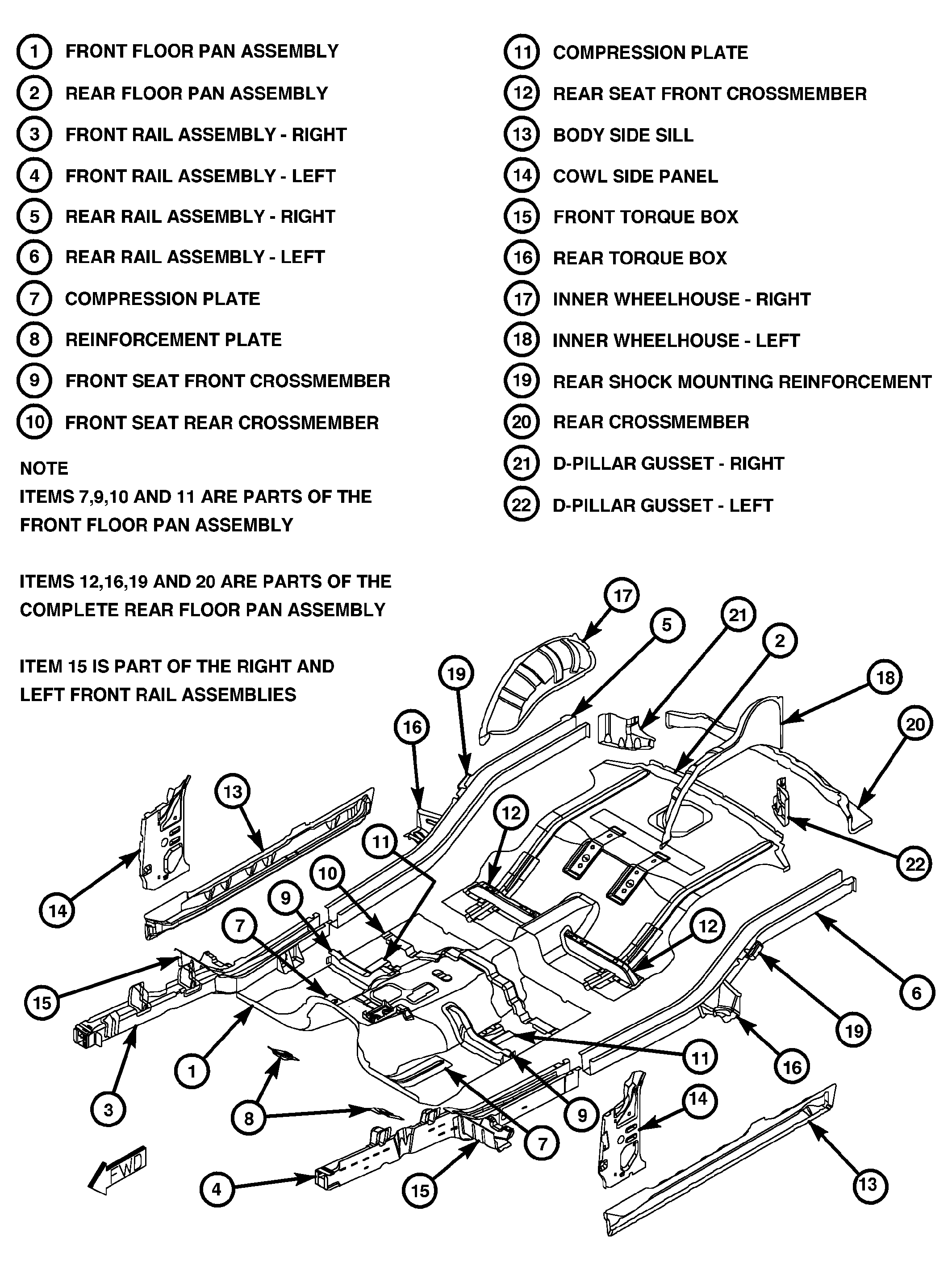

Fig 1: Floor Pan Assemblies

Courtesy of DAIMLERCHRYSLER CORP.

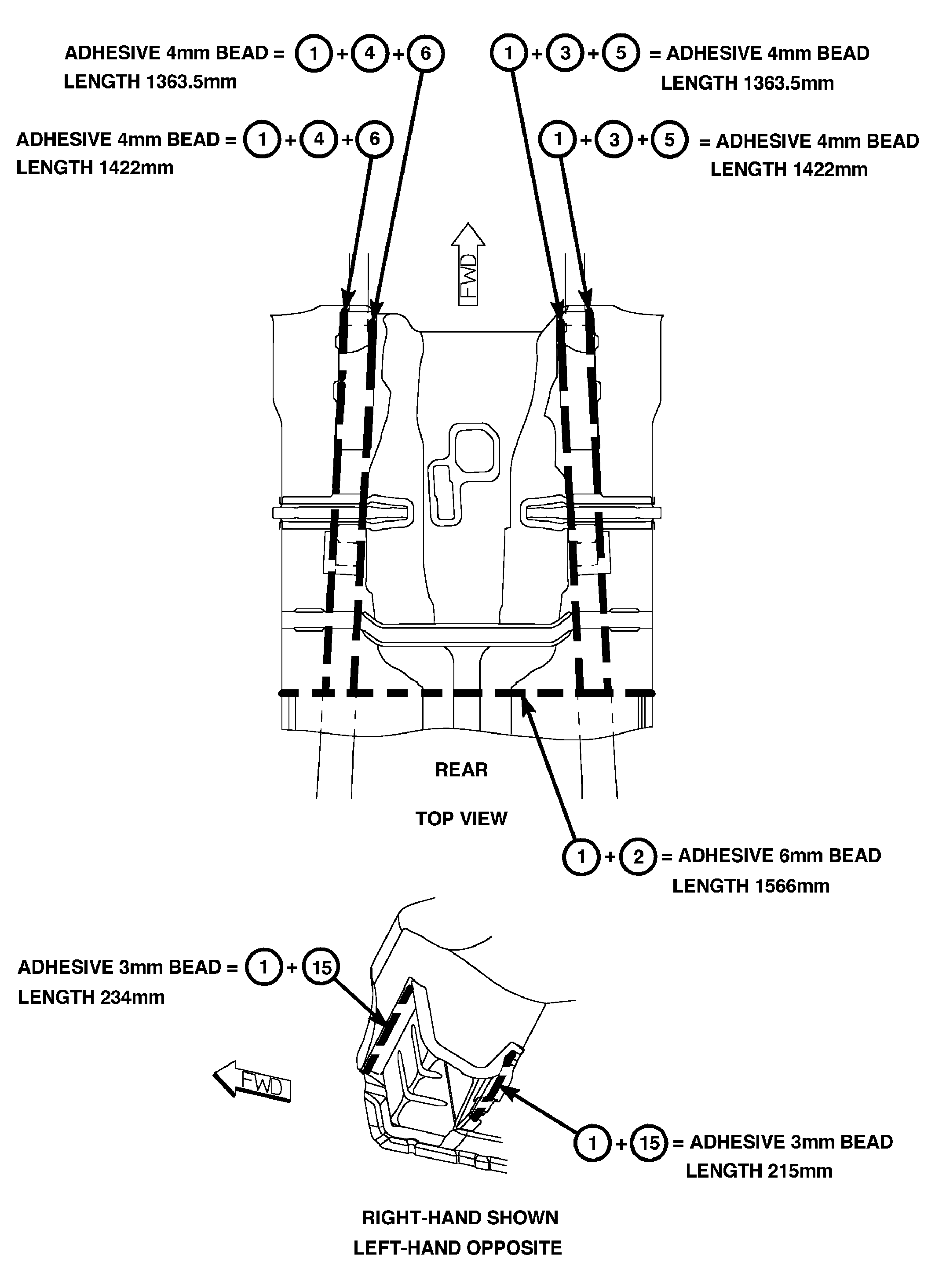

Fig 2: Front Rails - Adhesive Locations

Courtesy of DAIMLERCHRYSLER CORP.

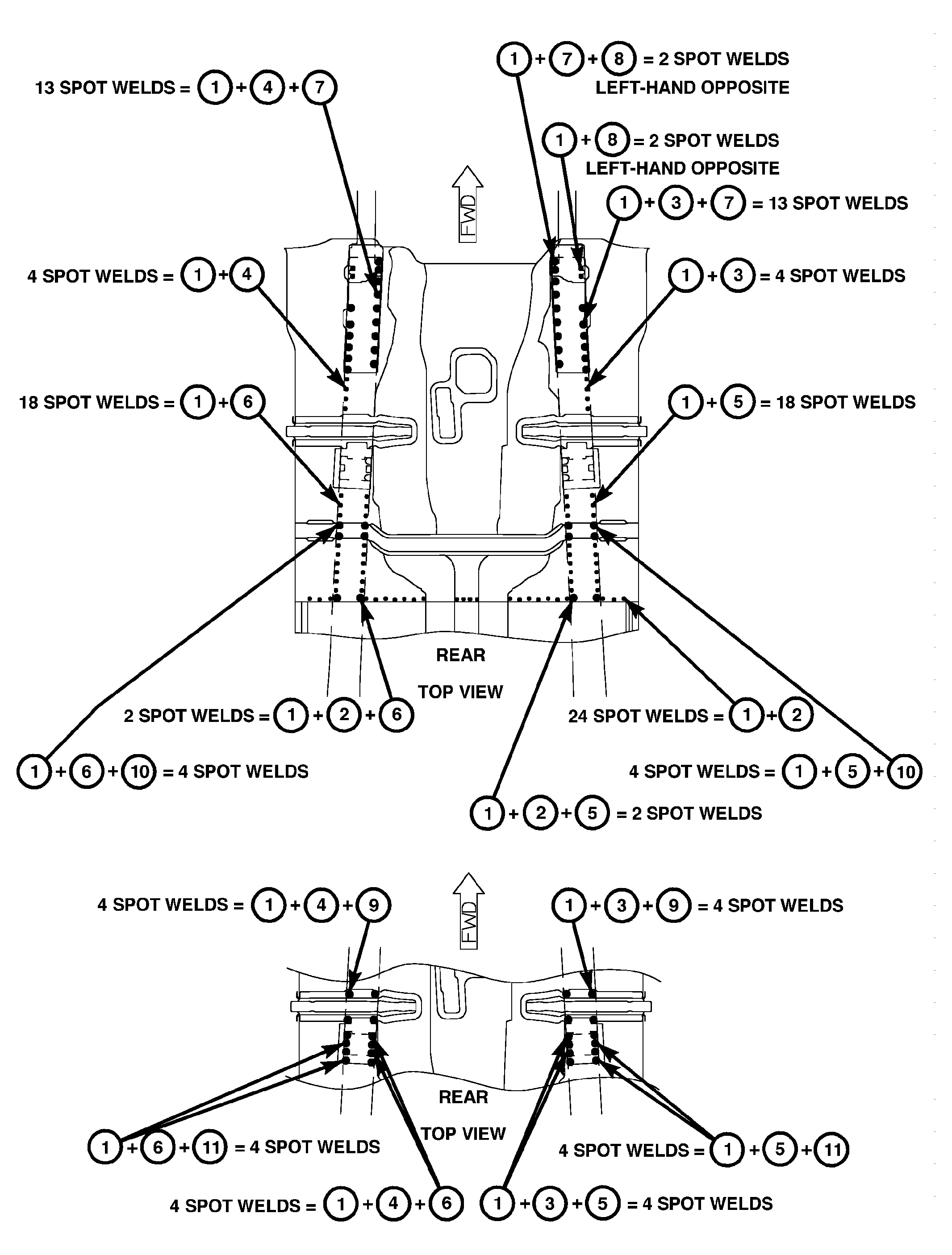

Fig 3: Front Rails - Weld Locations

Courtesy of DAIMLERCHRYSLER CORP.

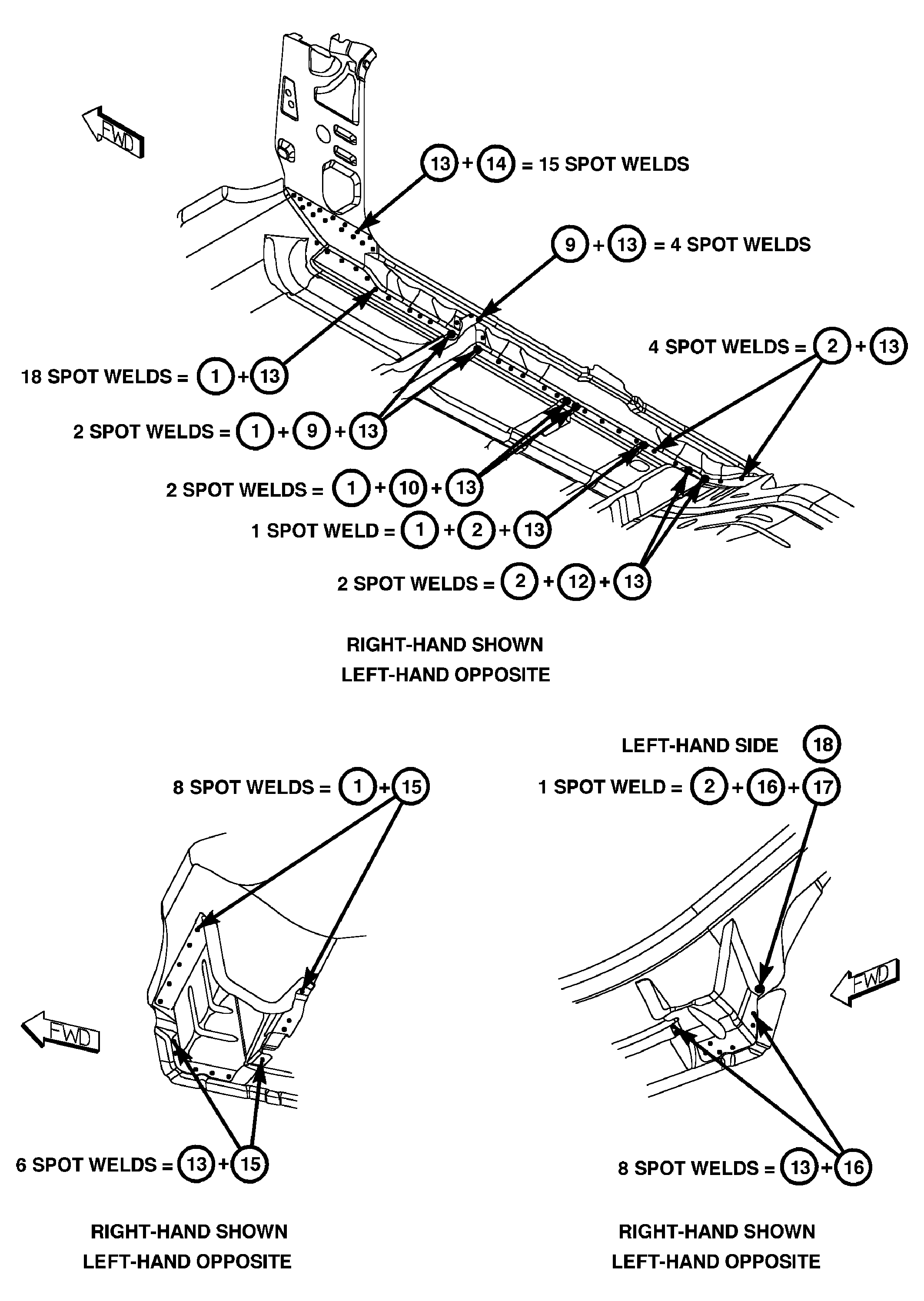

Fig 4: Side Sills

Courtesy of DAIMLERCHRYSLER CORP.

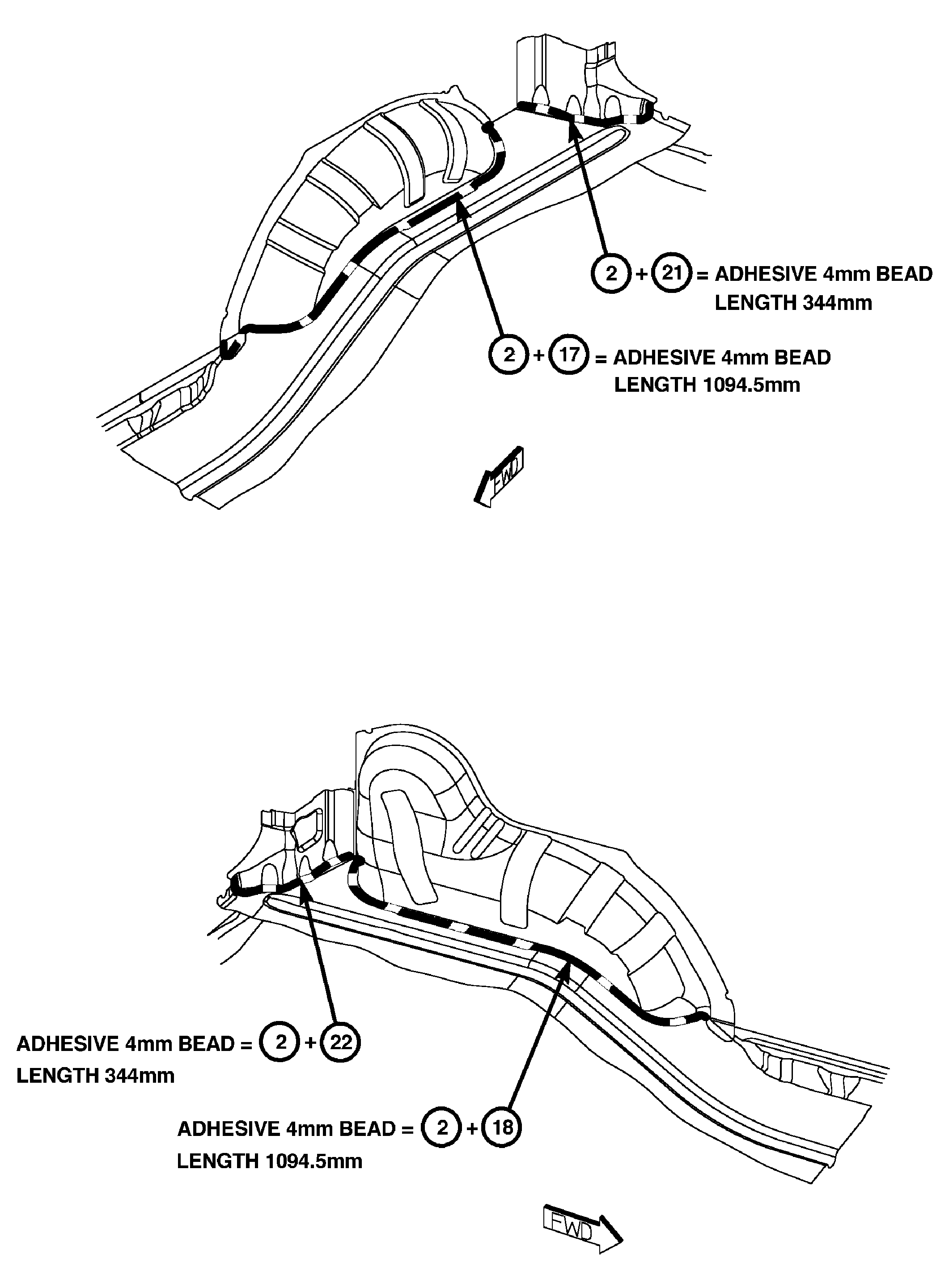

Fig 5: Wheelhouses - Adhesive Locations

Courtesy of DAIMLERCHRYSLER CORP.

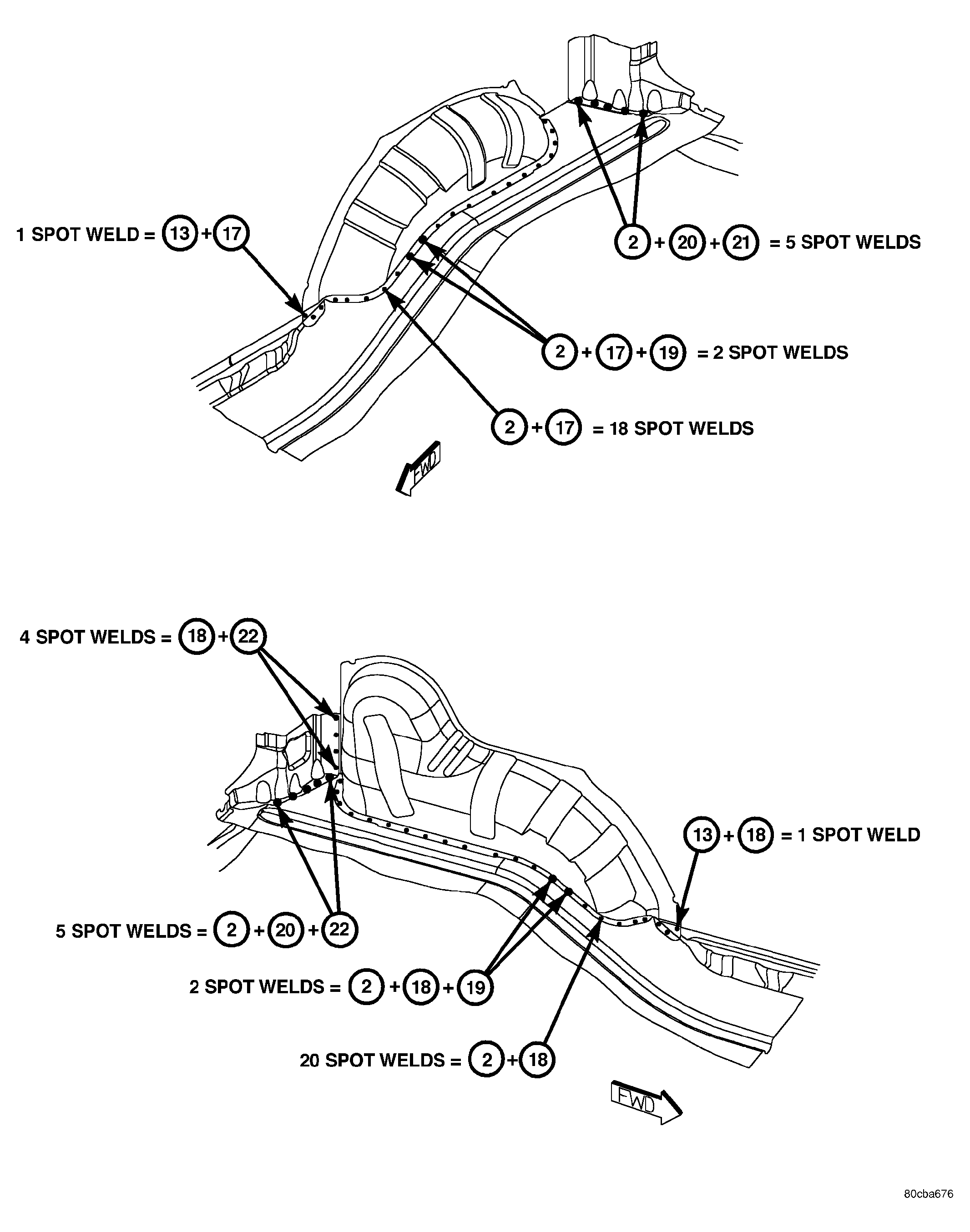

Fig 6: 008 Wheelhouses - Weld Locations

Courtesy of DAIMLERCHRYSLER CORP.
