Front End Assembly

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: 001 Inner Front Panels

Courtesy of DAIMLERCHRYSLER CORP.

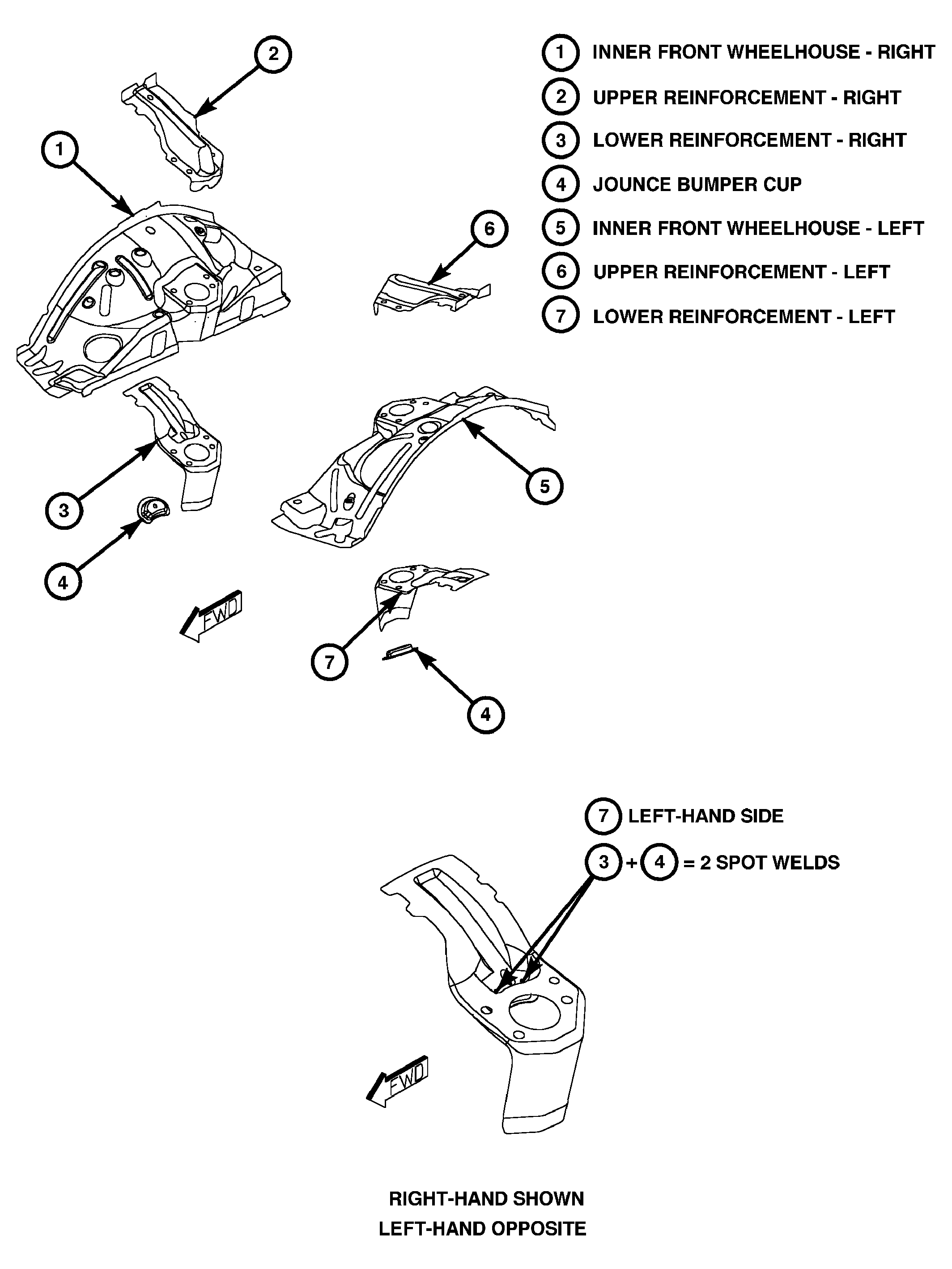

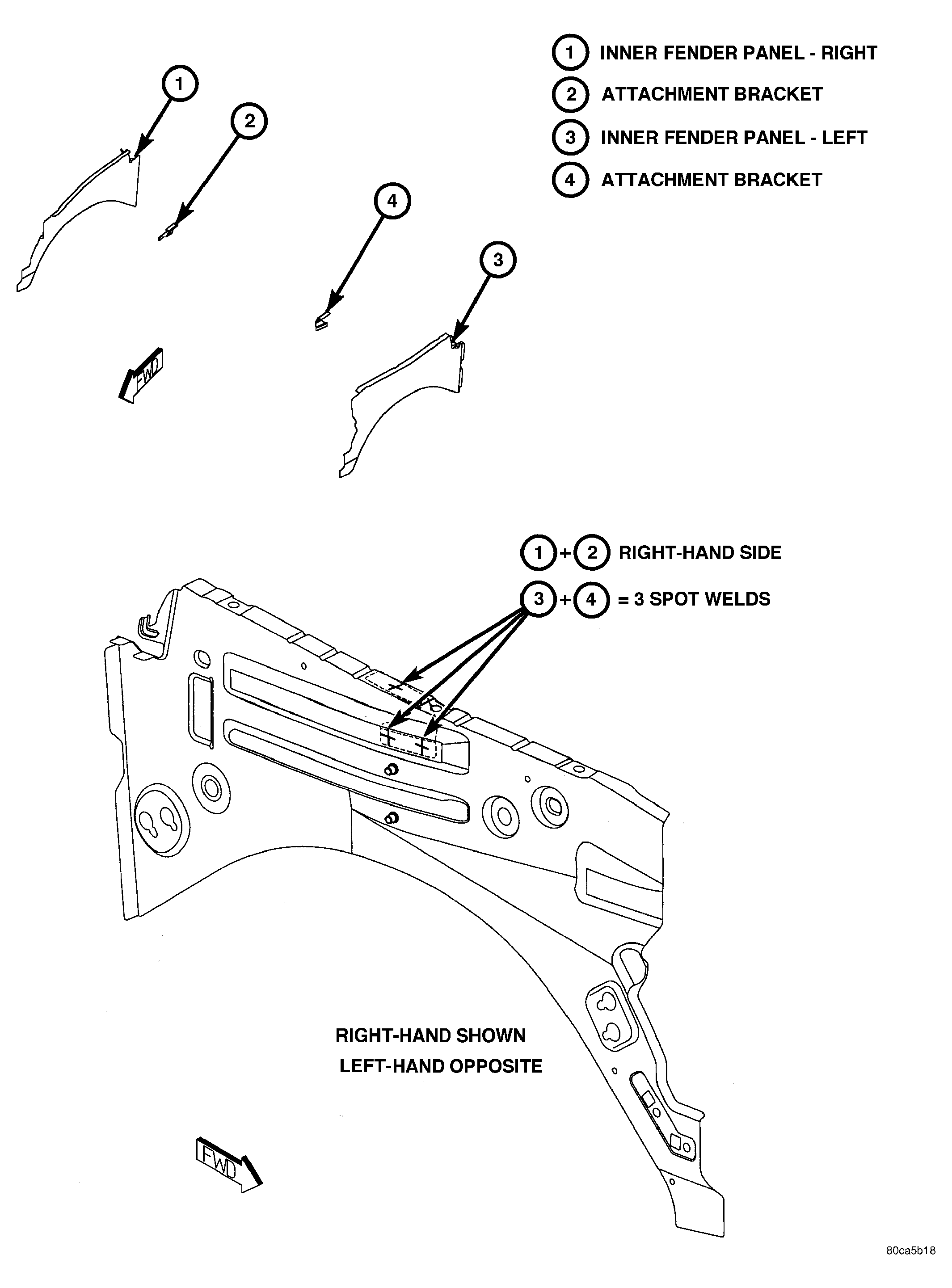

Fig 2: Inner Wheel Houses

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Inner Wheel Houses

Courtesy of DAIMLERCHRYSLER CORP.

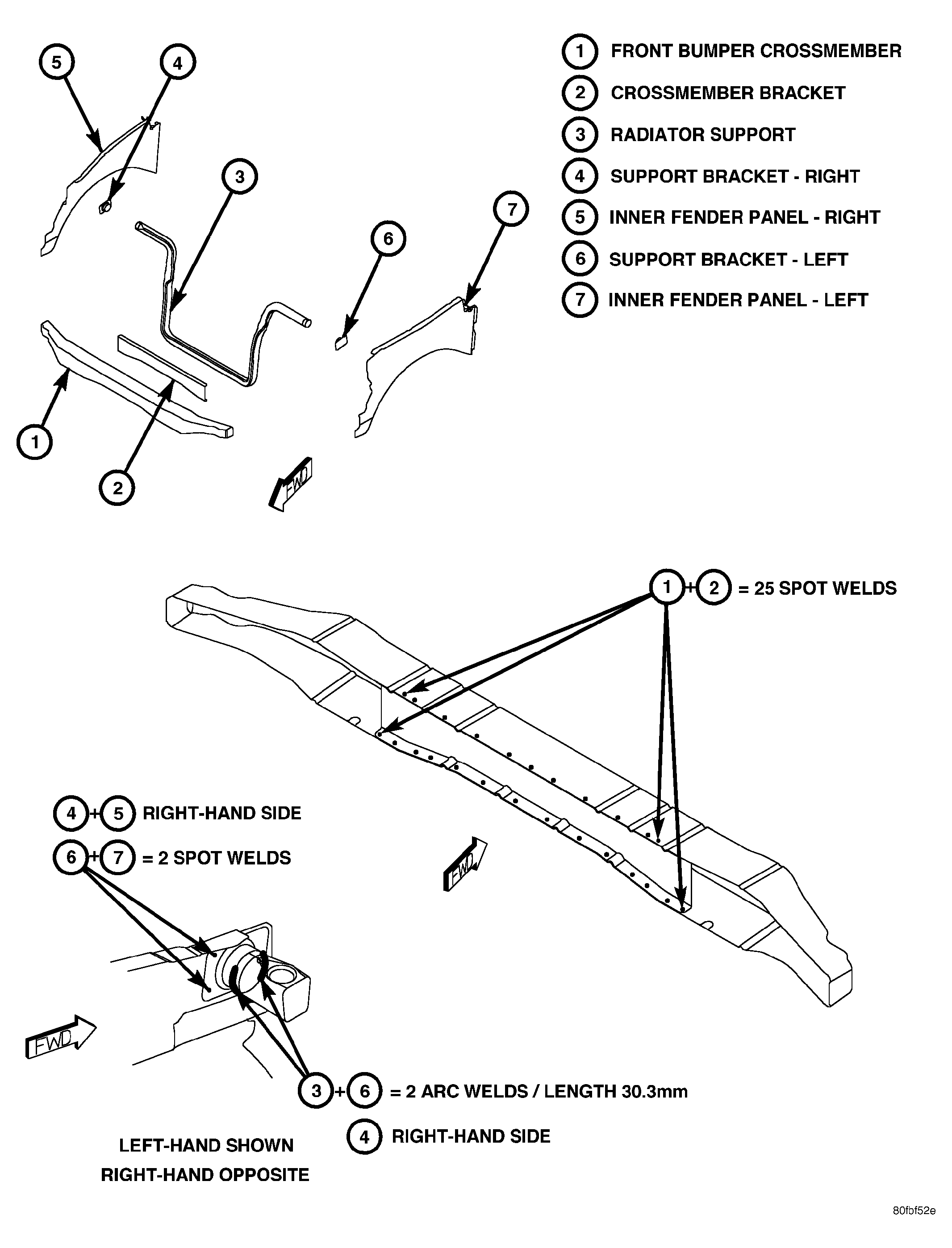

Fig 4: Front Bumper Crossmember

Courtesy of DAIMLERCHRYSLER CORP.

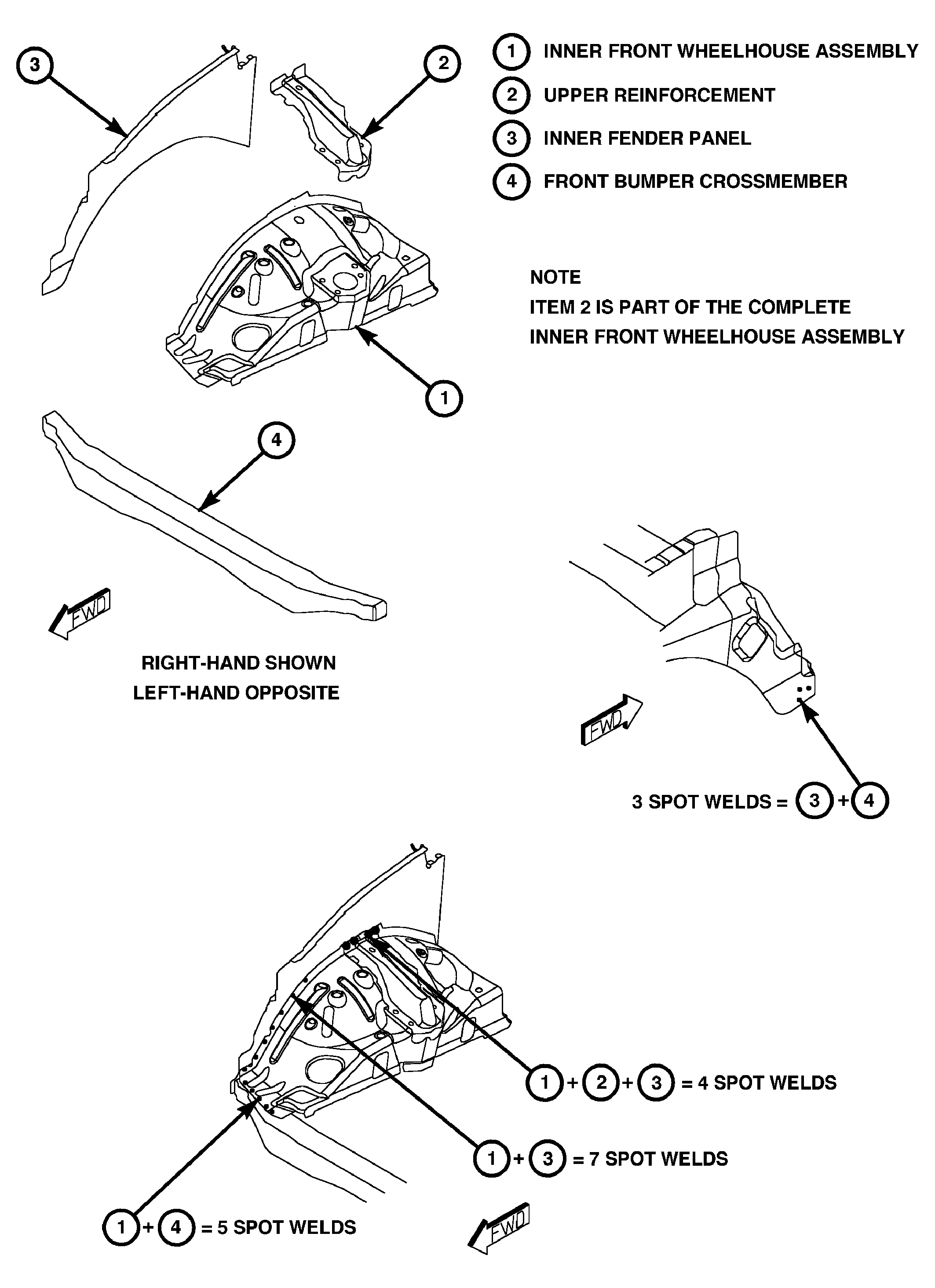

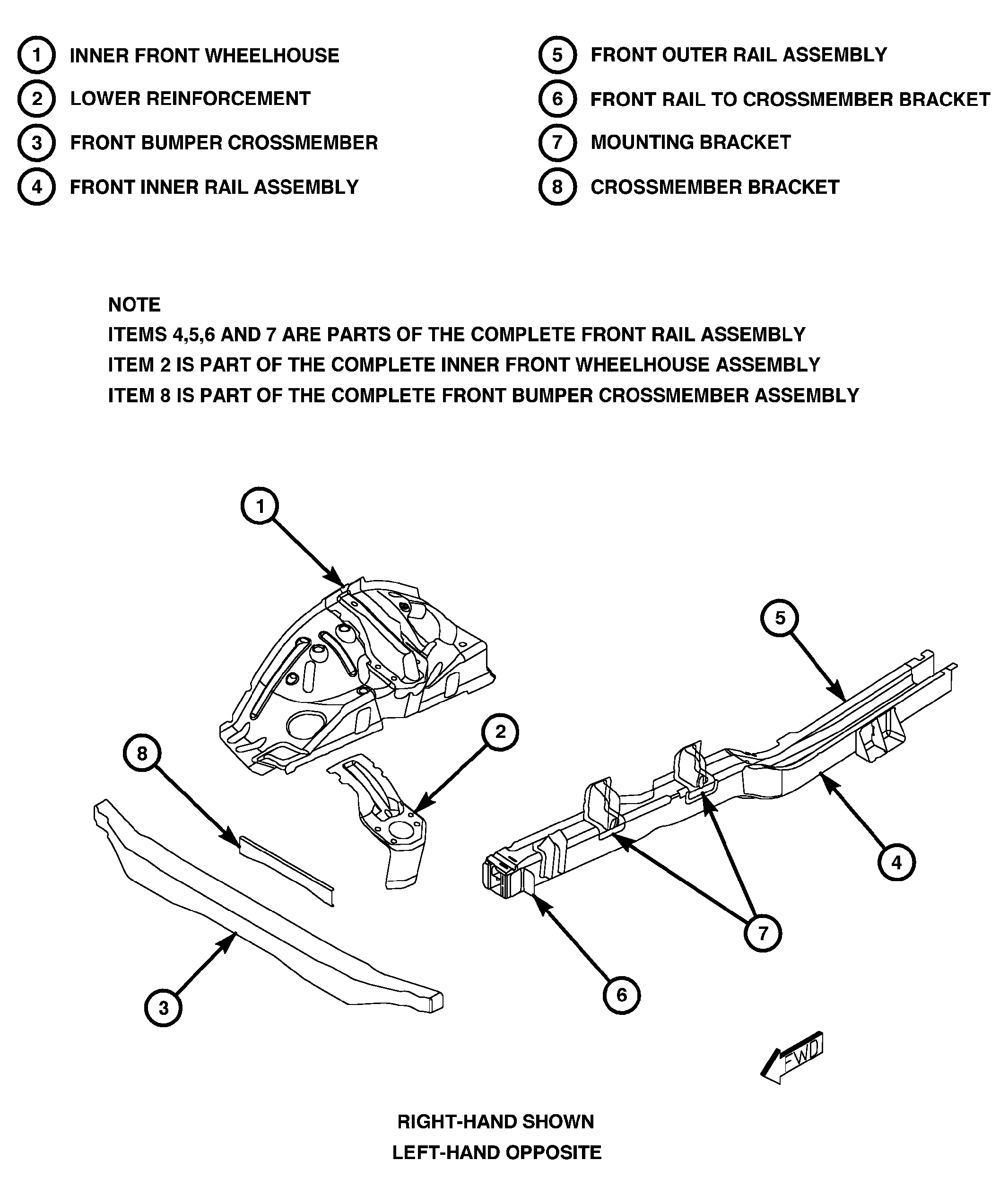

Fig 5: Inner Front Wheelhouse

Courtesy of DAIMLERCHRYSLER CORP.

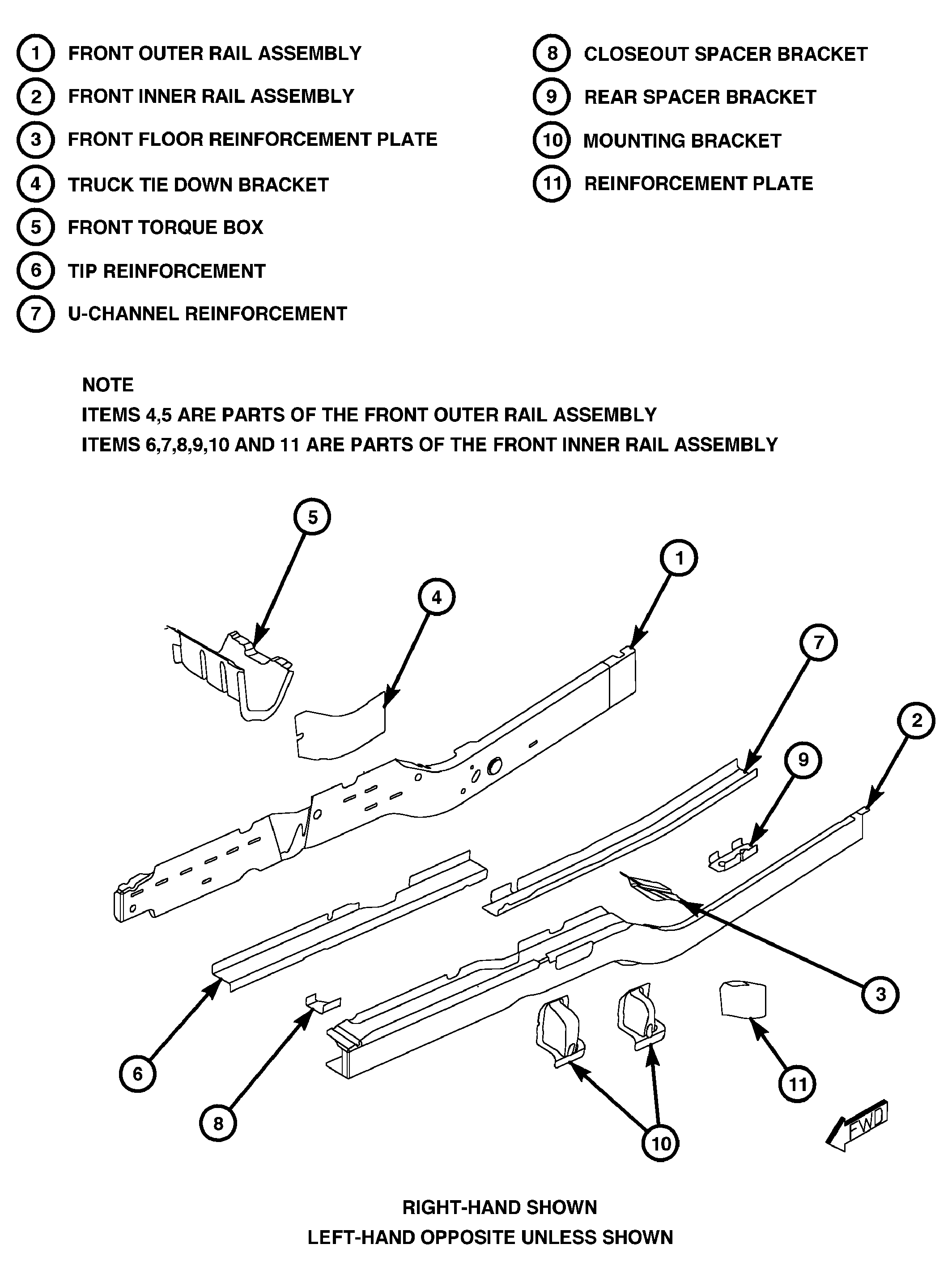

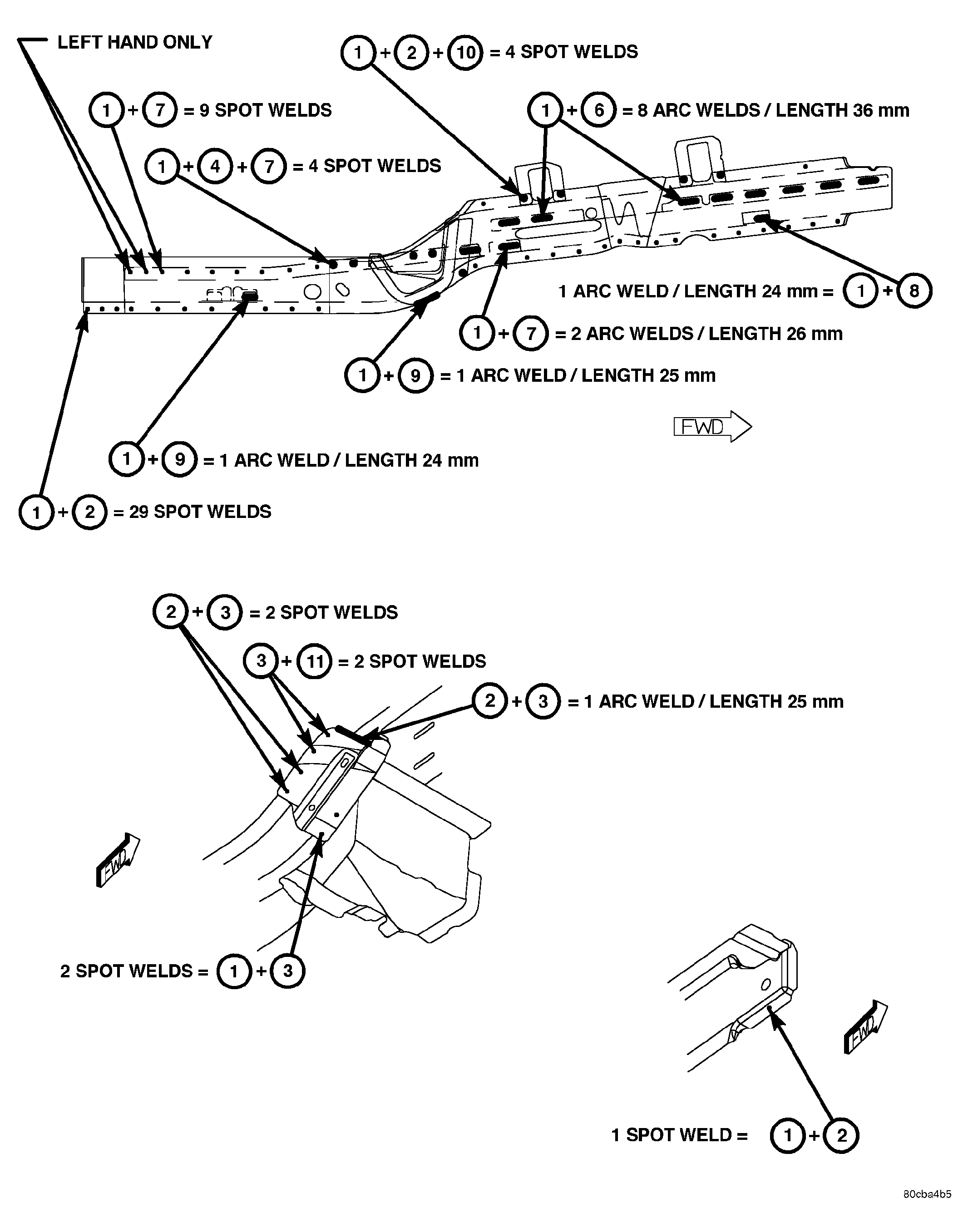

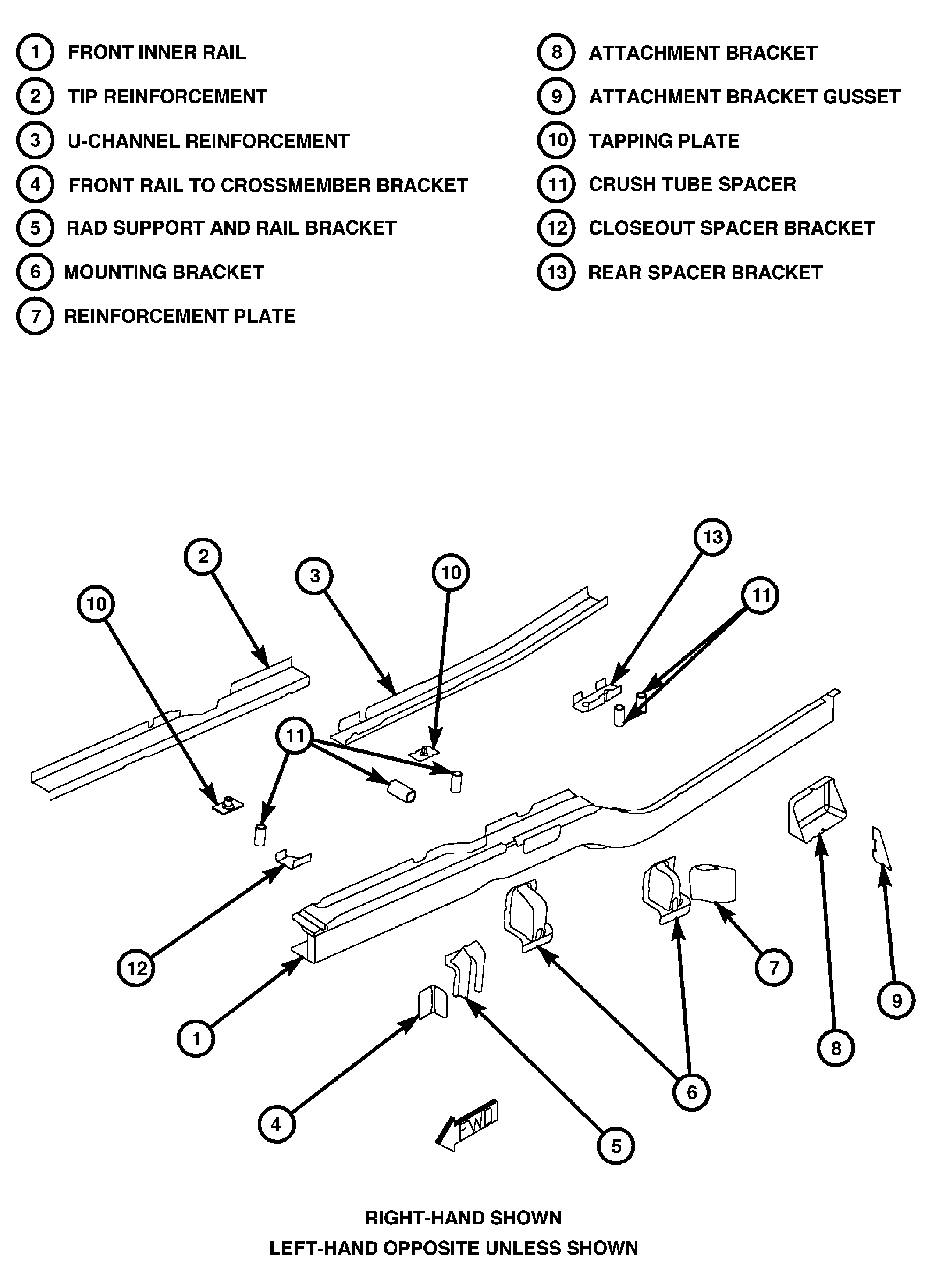

Fig 6: Front Inner Rails

Courtesy of DAIMLERCHRYSLER CORP.

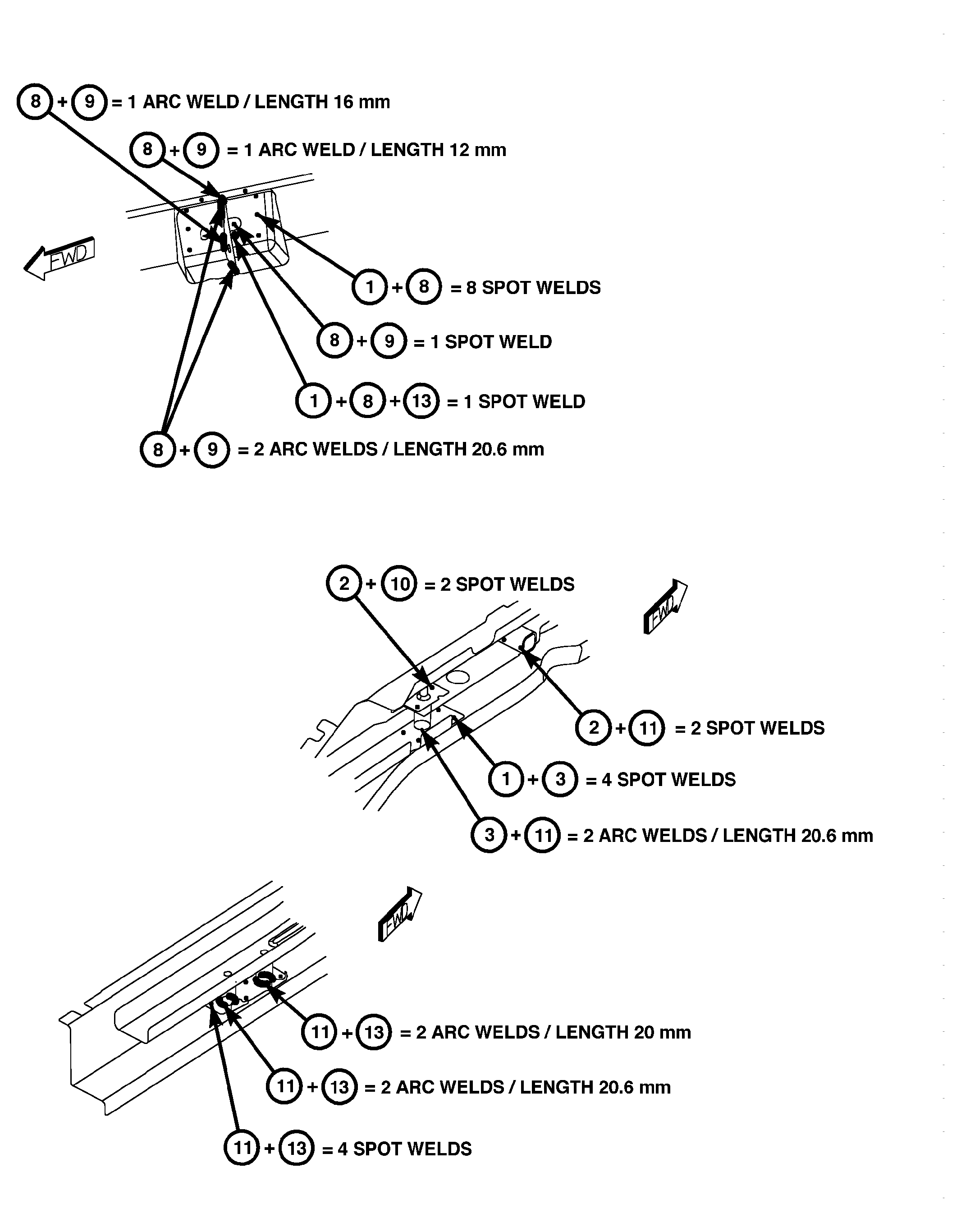

Fig 7: Front Inner Rails

Courtesy of DAIMLERCHRYSLER CORP.

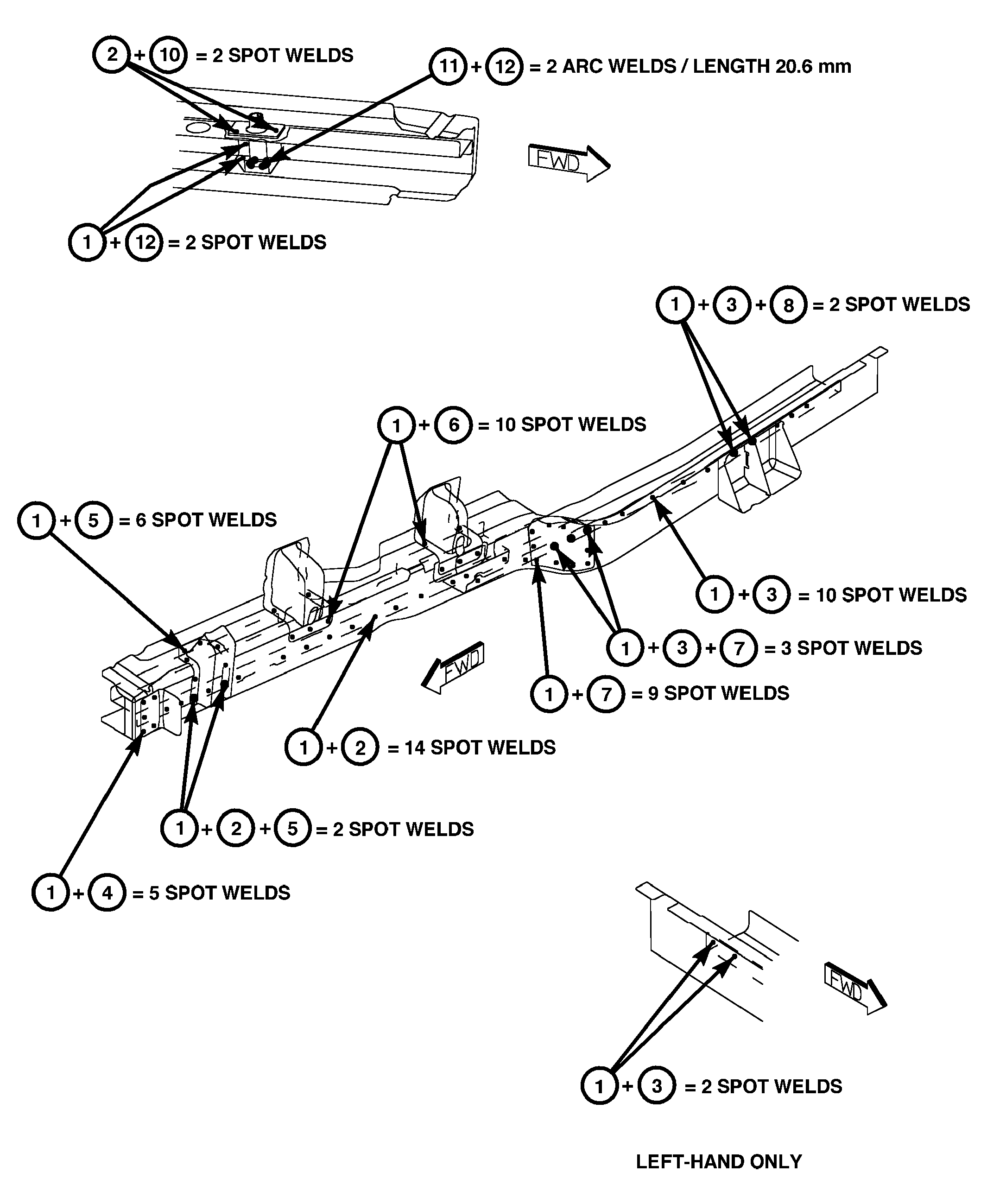

Fig 8: Front Inner Rails

Courtesy of DAIMLERCHRYSLER CORP.

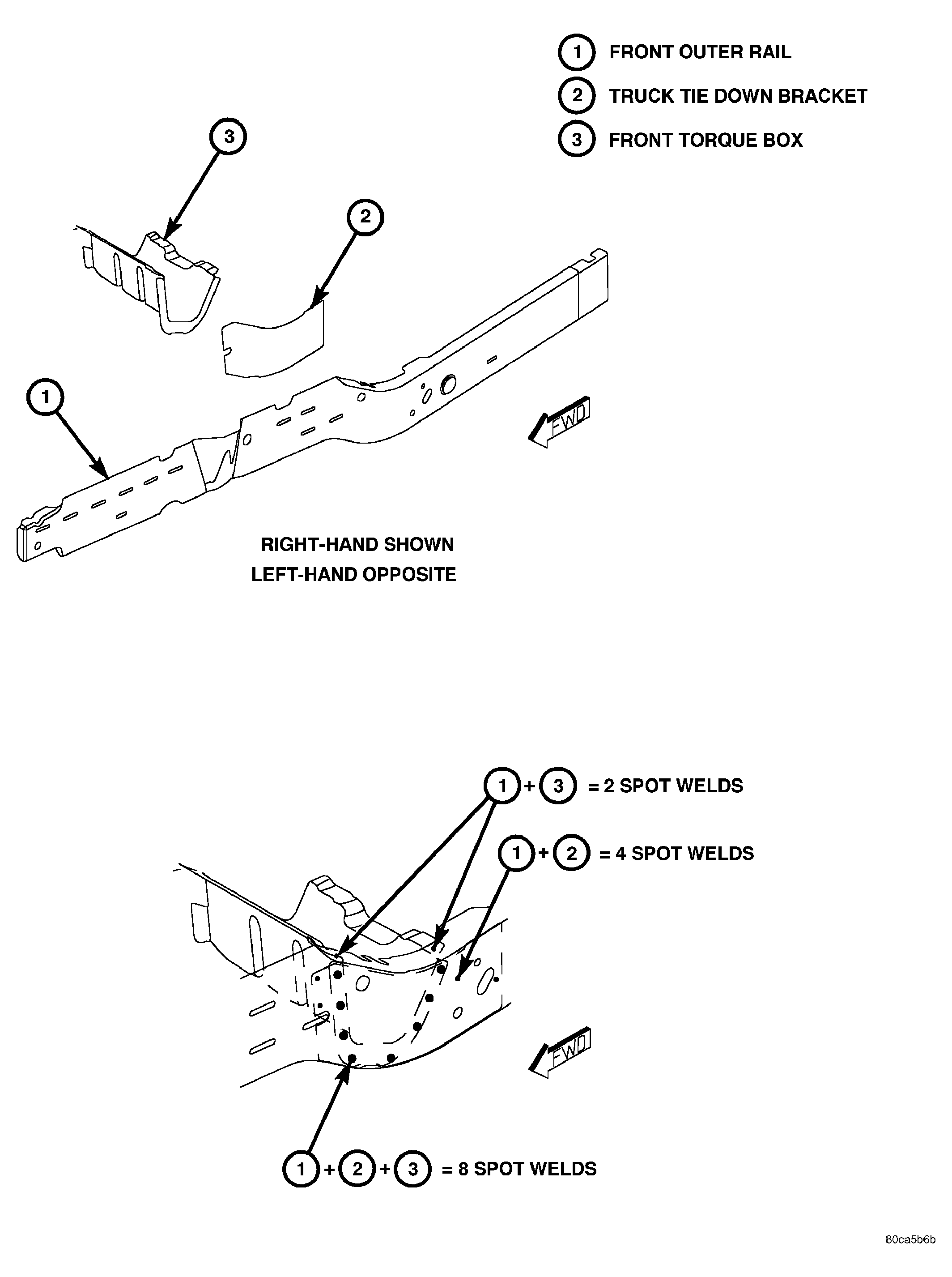

Fig 9: 002 Front Outer Rail

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Front Outer Rails

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: 003 Front Outer Rails

Courtesy of DAIMLERCHRYSLER CORP.

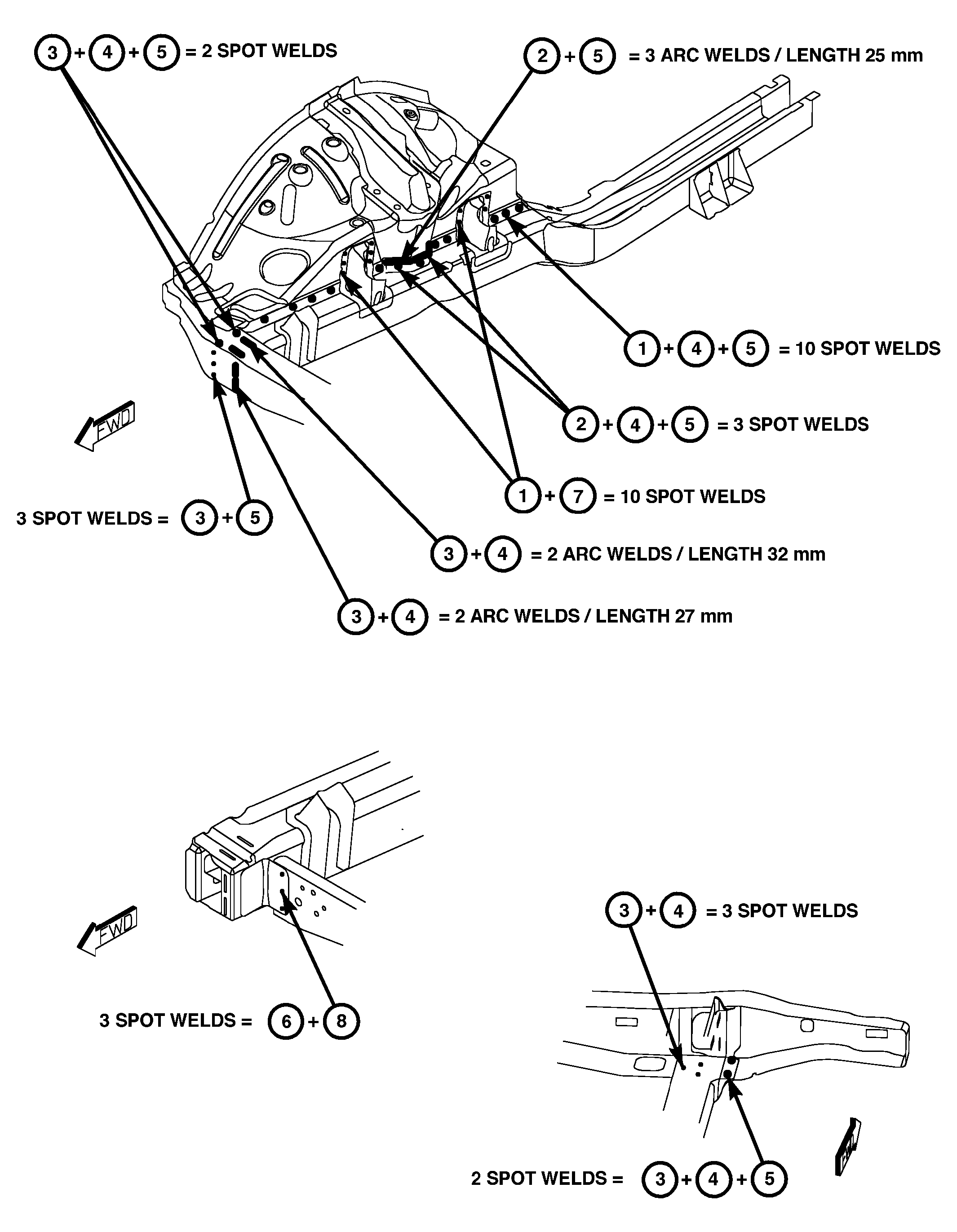

Fig 12: Inner Front Wheelhouse/Front Inner Rail

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Inner Front Wheelhouse/Front Inner Rail

Courtesy of DAIMLERCHRYSLER CORP.

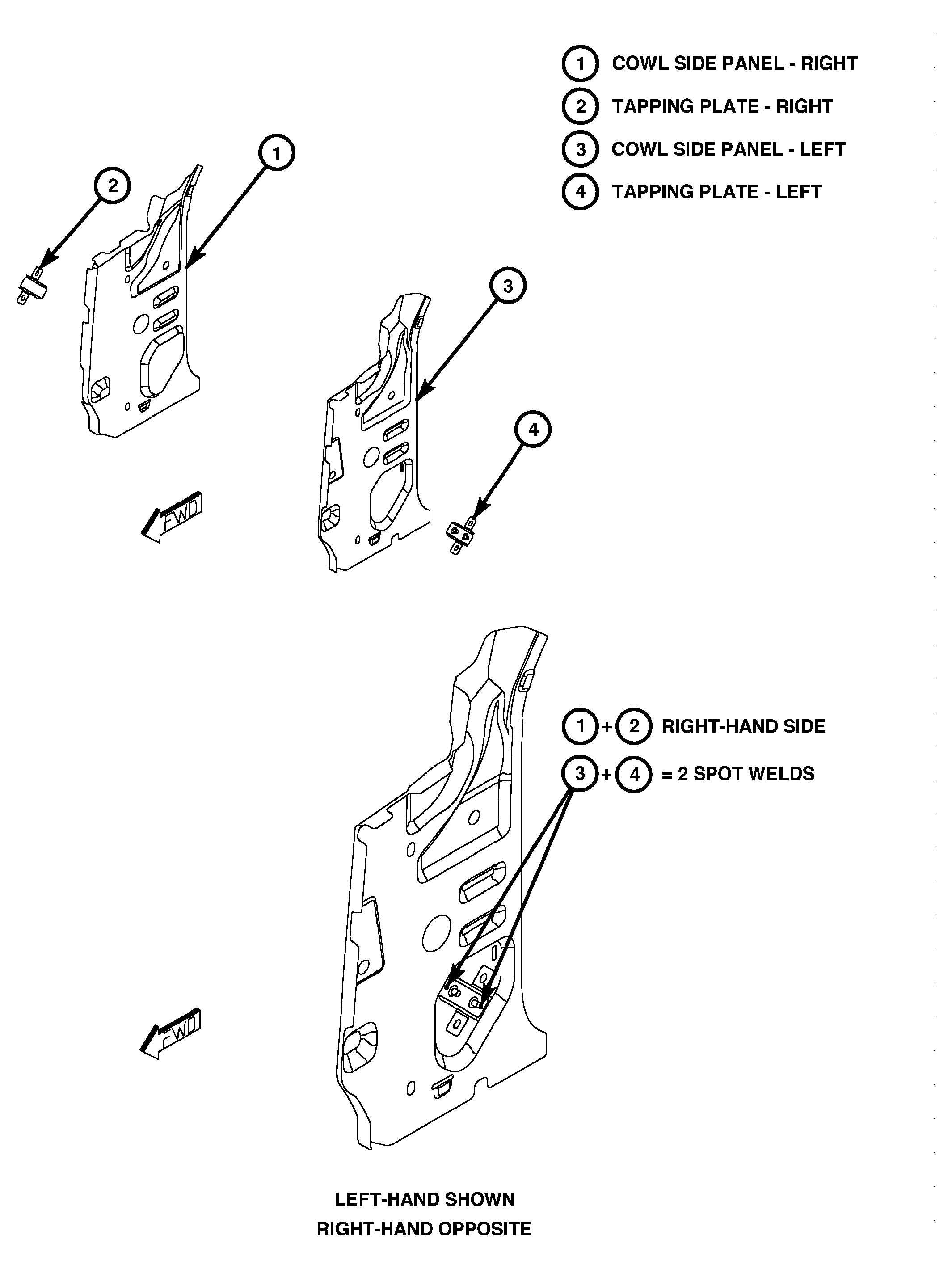

Fig 14: Cowl Side Panel

Courtesy of DAIMLERCHRYSLER CORP.

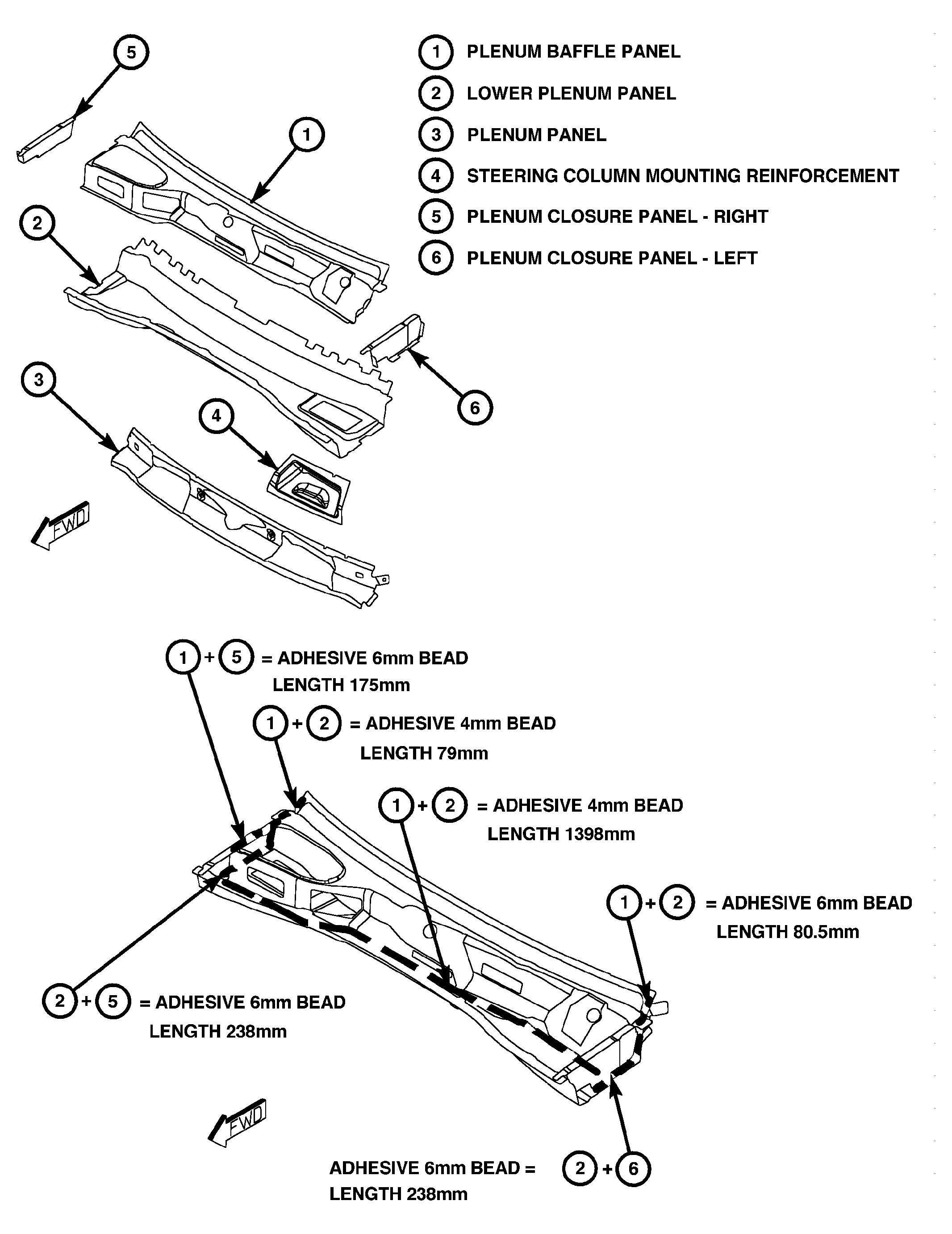

Fig 15: Plenum Assembly

Courtesy of DAIMLERCHRYSLER CORP.

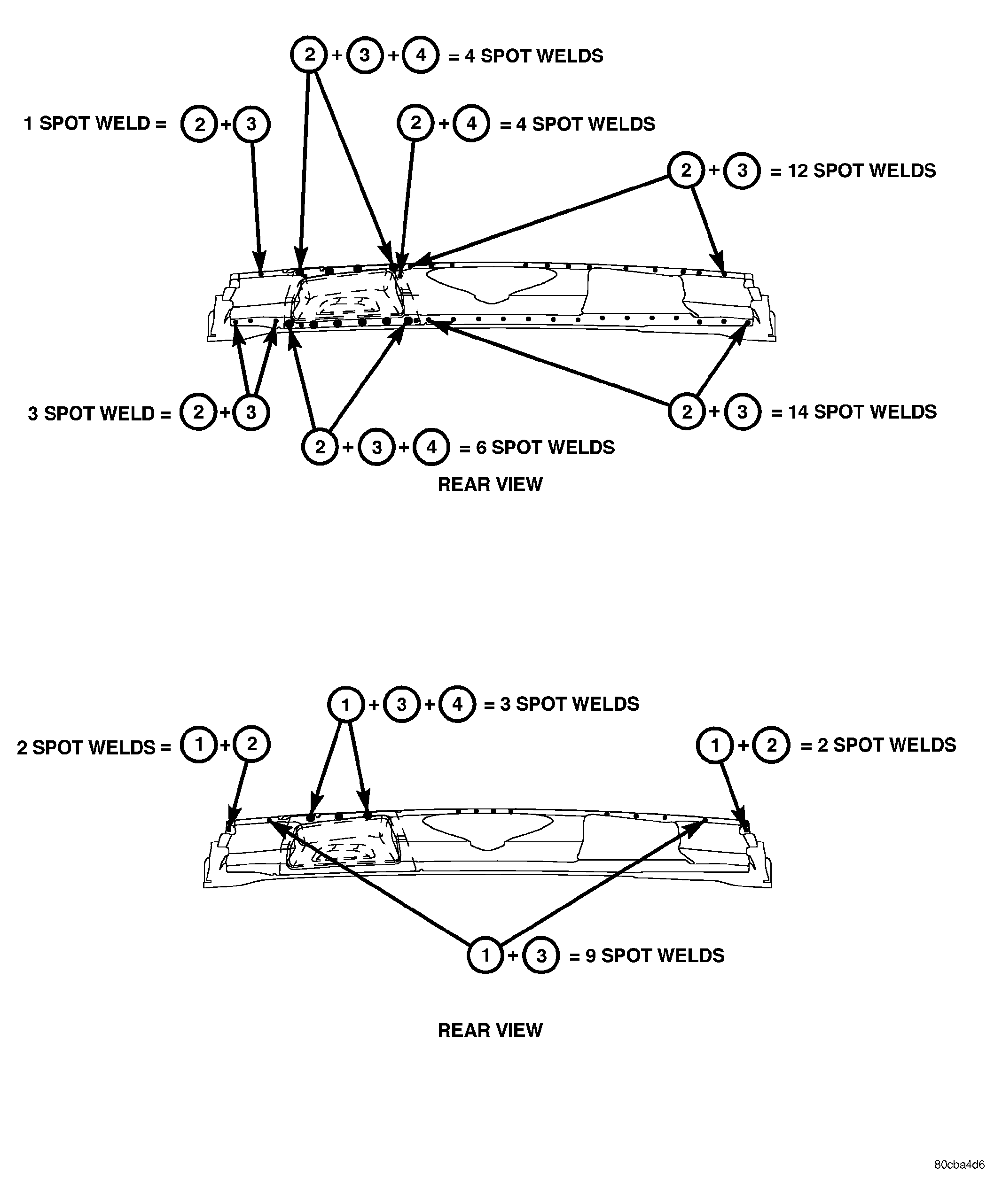

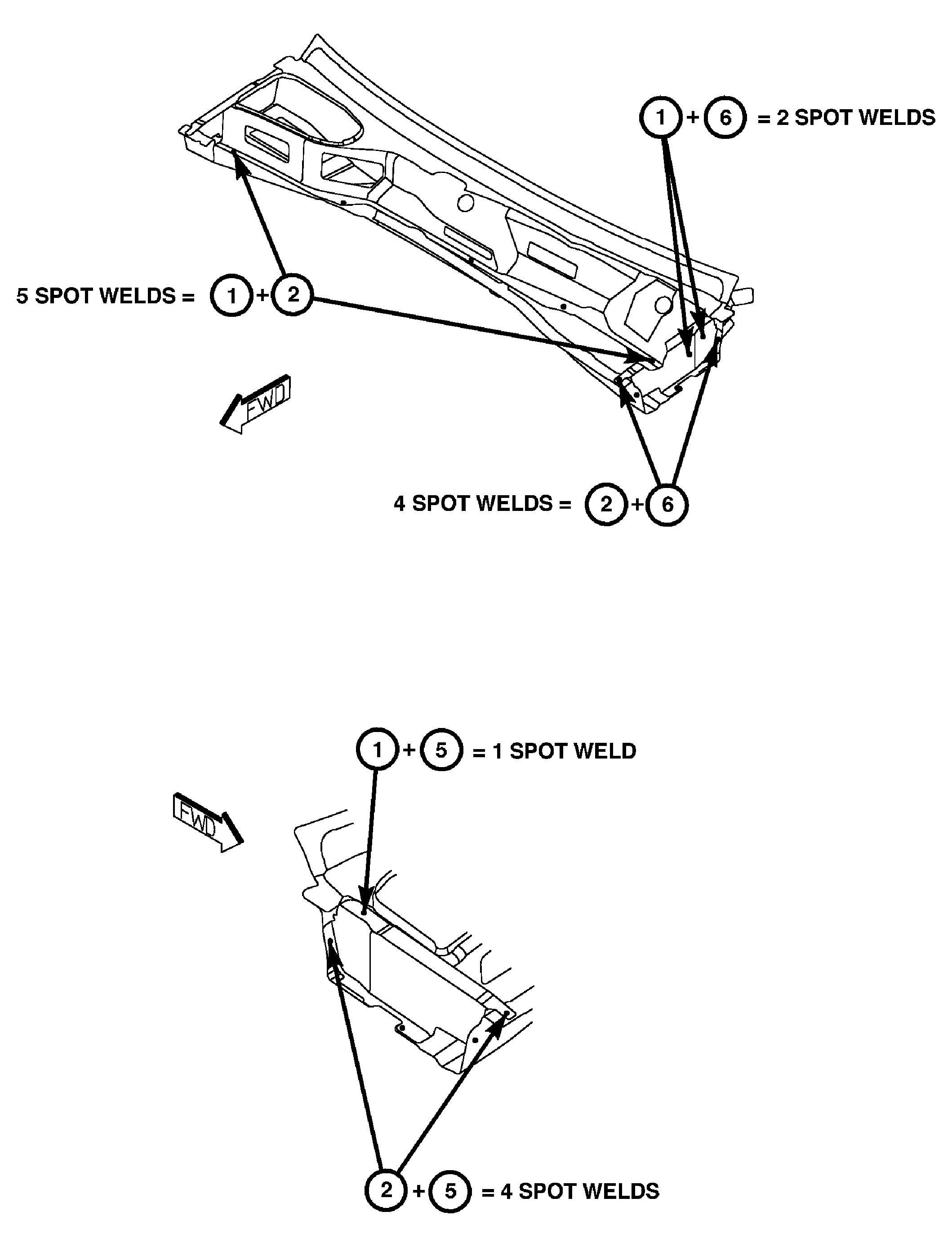

Fig 16: Plenum Assembly

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: 004 Plenum Assembly

Courtesy of DAIMLERCHRYSLER CORP.
