Front End Assembly/Underbody

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

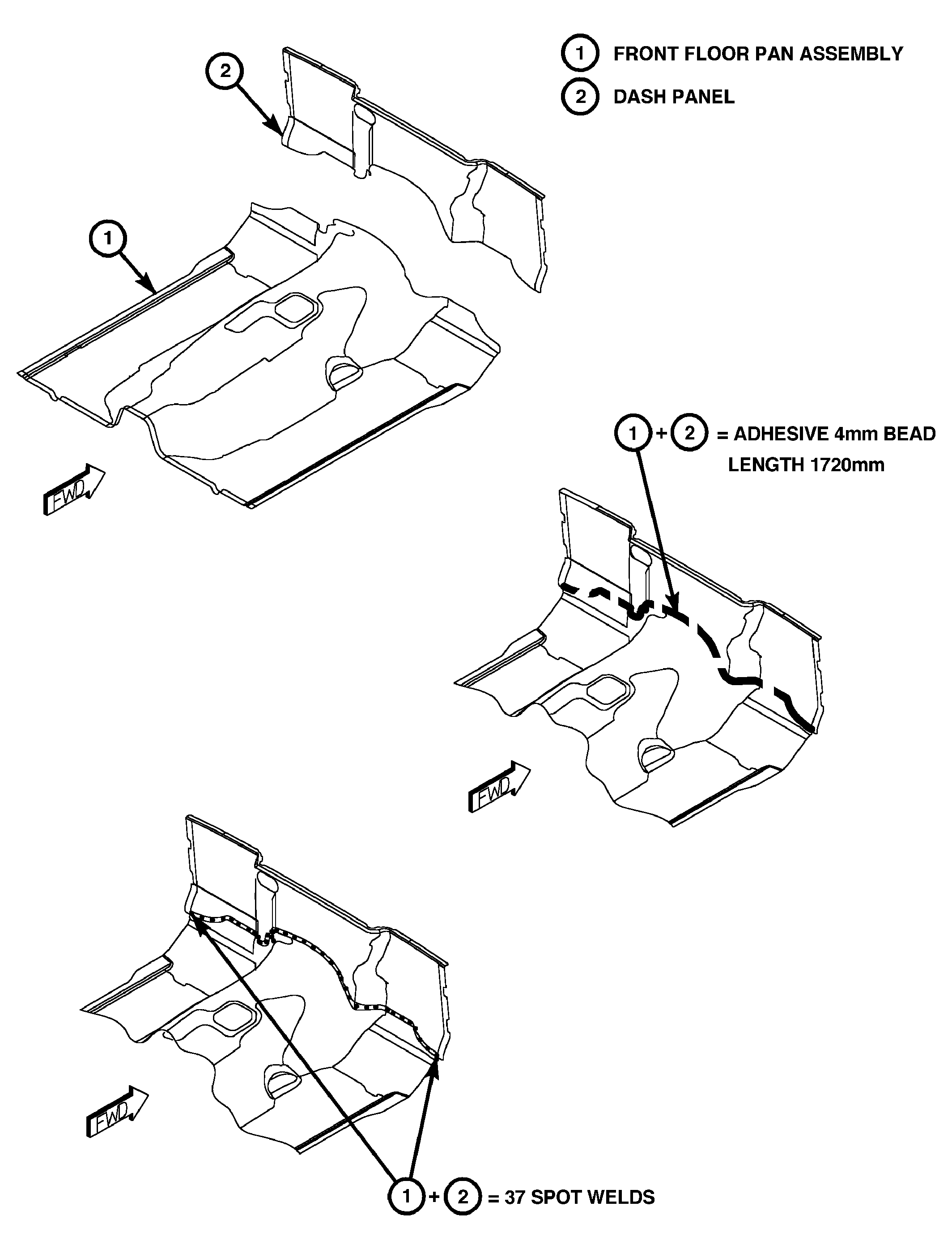

Fig 1: Floor Pan Assembly

Courtesy of DAIMLERCHRYSLER CORP.

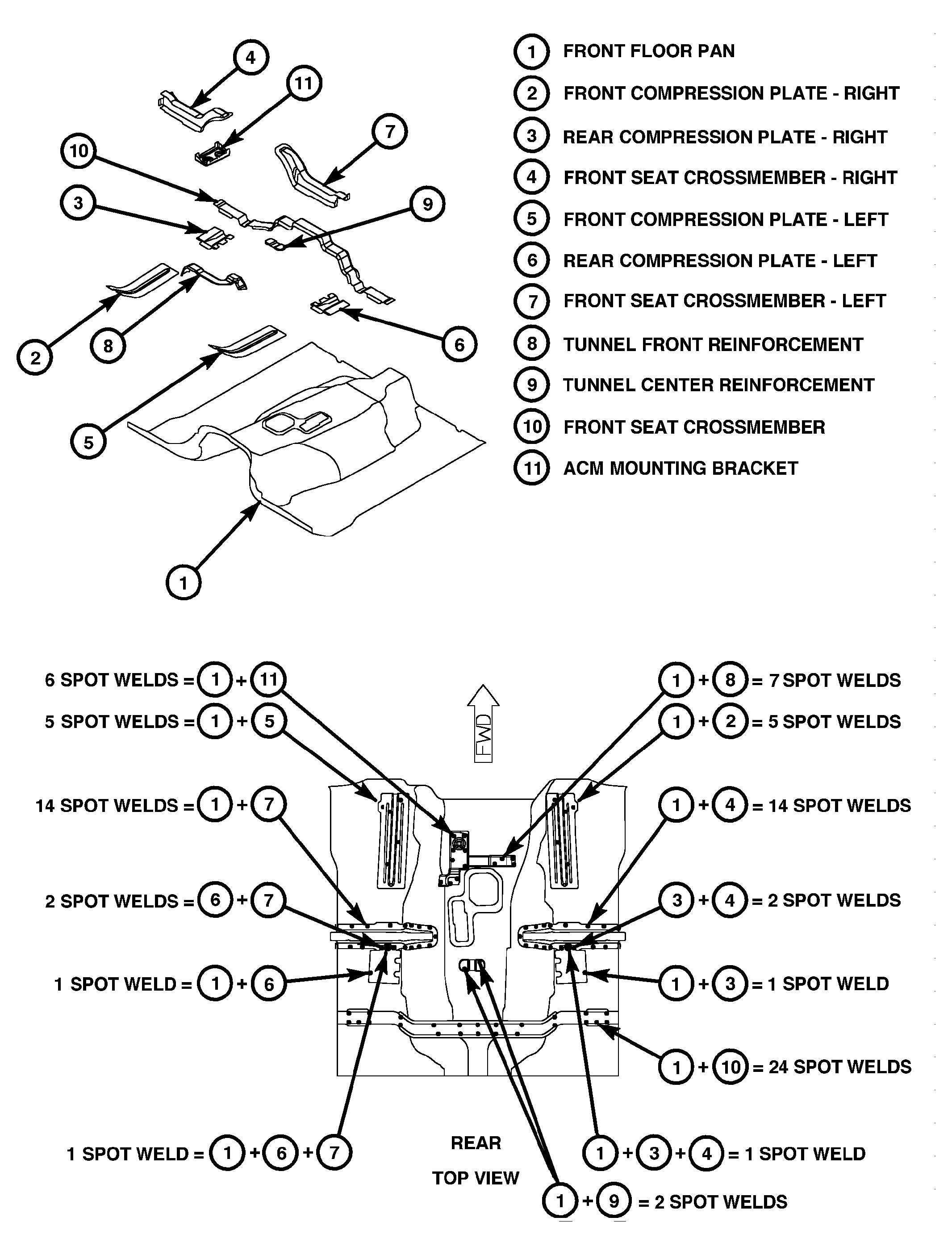

Fig 2: Floor Pan Assembly

Courtesy of DAIMLERCHRYSLER CORP.

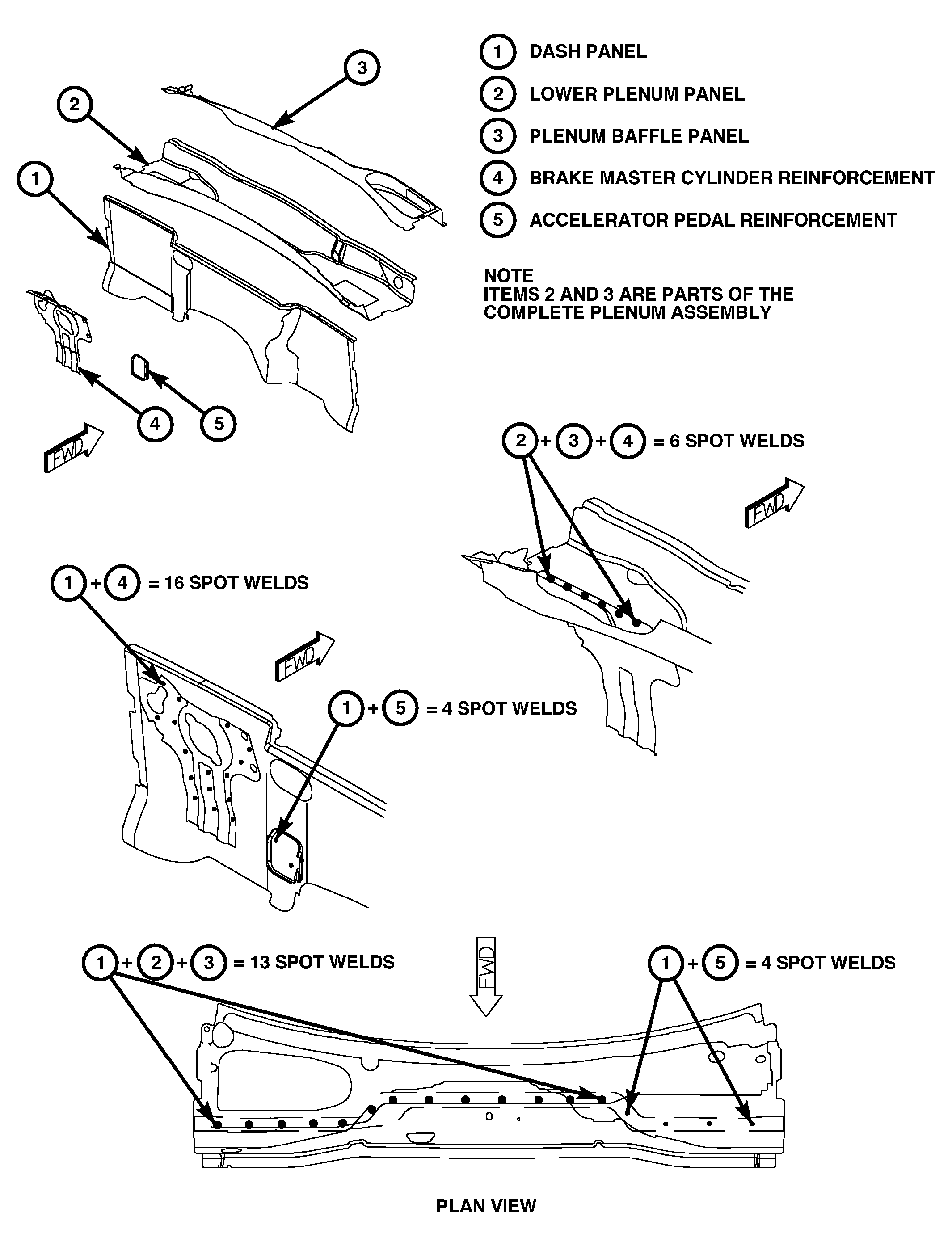

Fig 3: Dash Panel Assembly

Courtesy of DAIMLERCHRYSLER CORP.

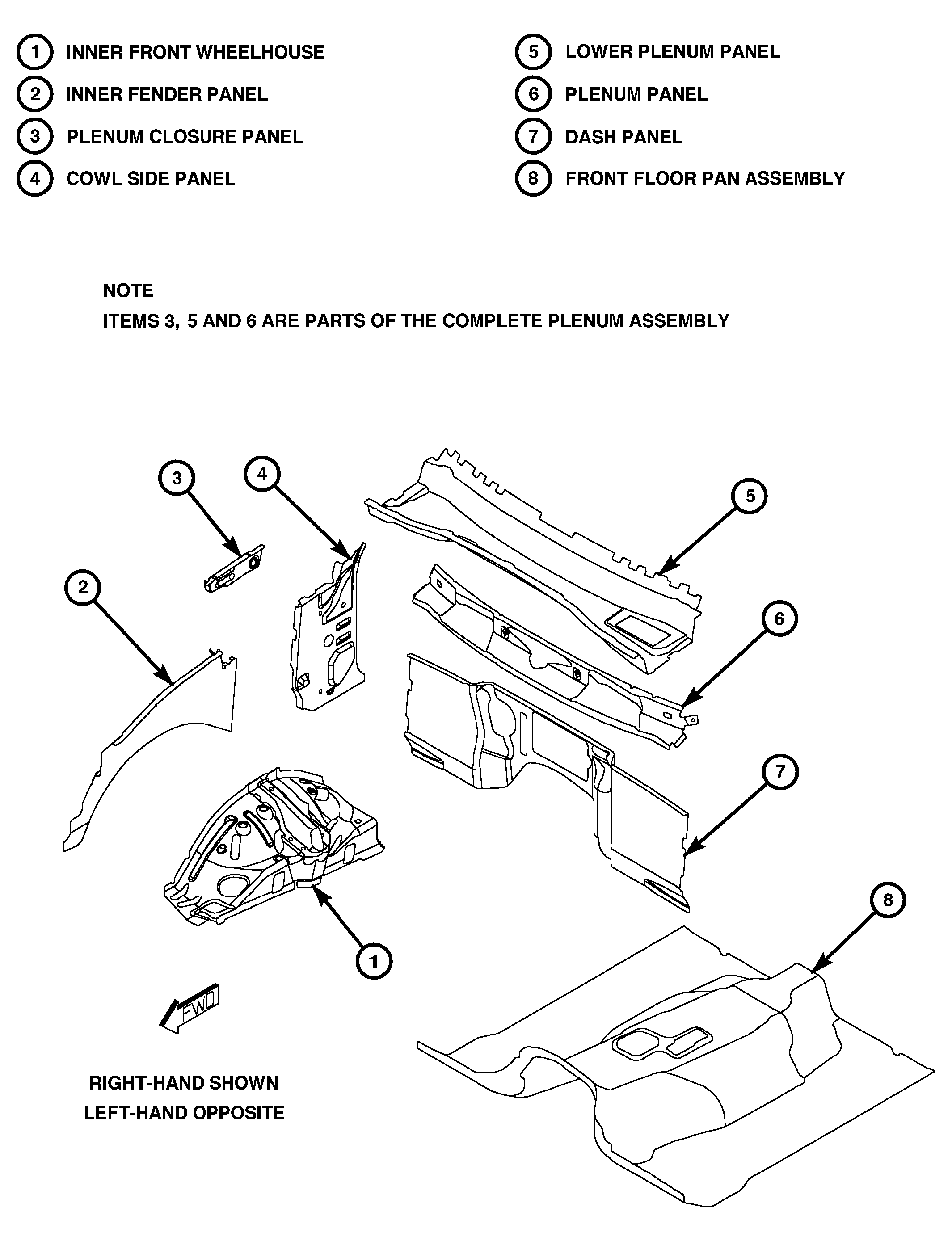

Fig 4: Dash Panel/Wheelhouse Assembly

Courtesy of DAIMLERCHRYSLER CORP.

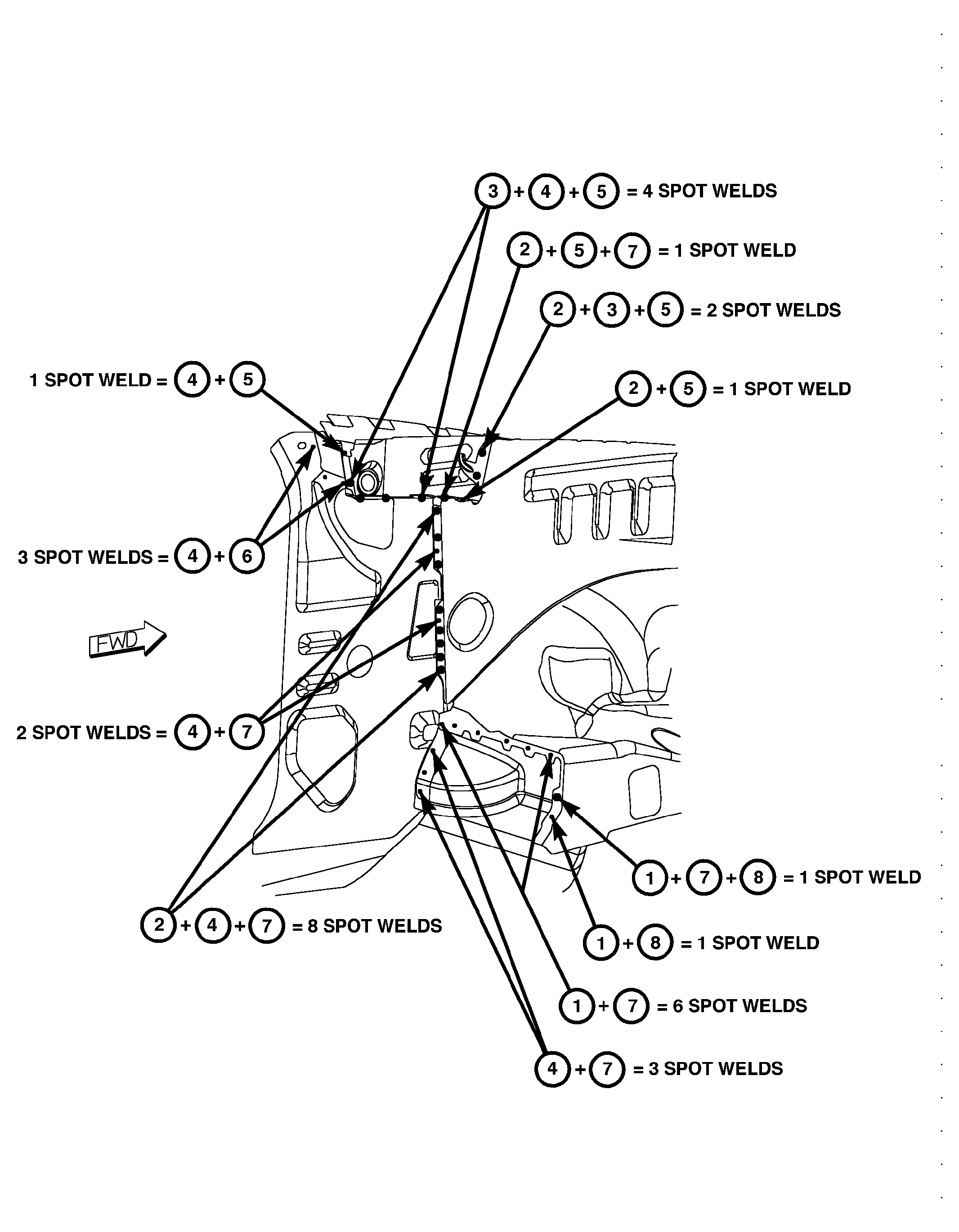

Fig 5: Cowl Side Panel

Courtesy of DAIMLERCHRYSLER CORP.
