Body Side Panels

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

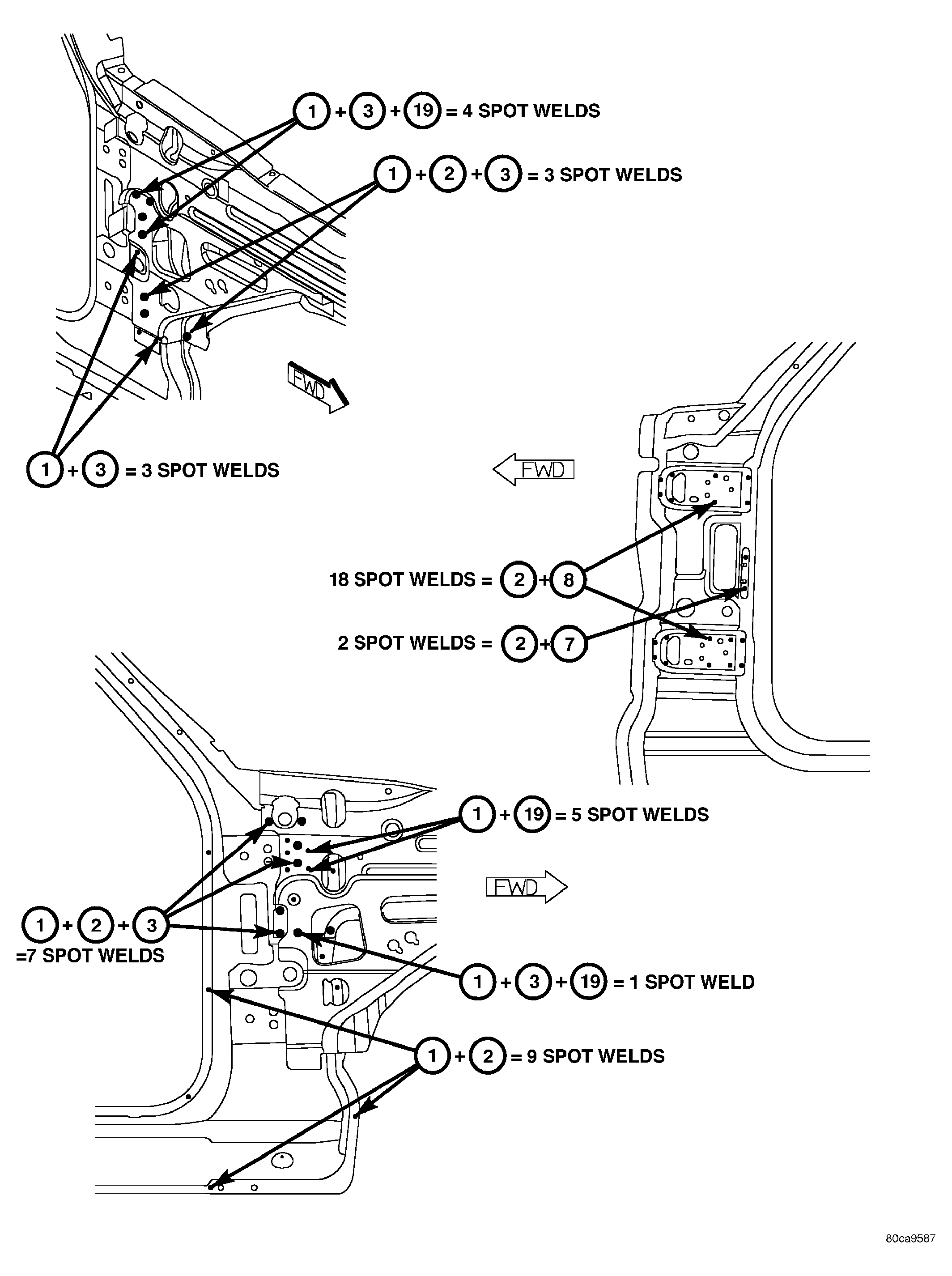

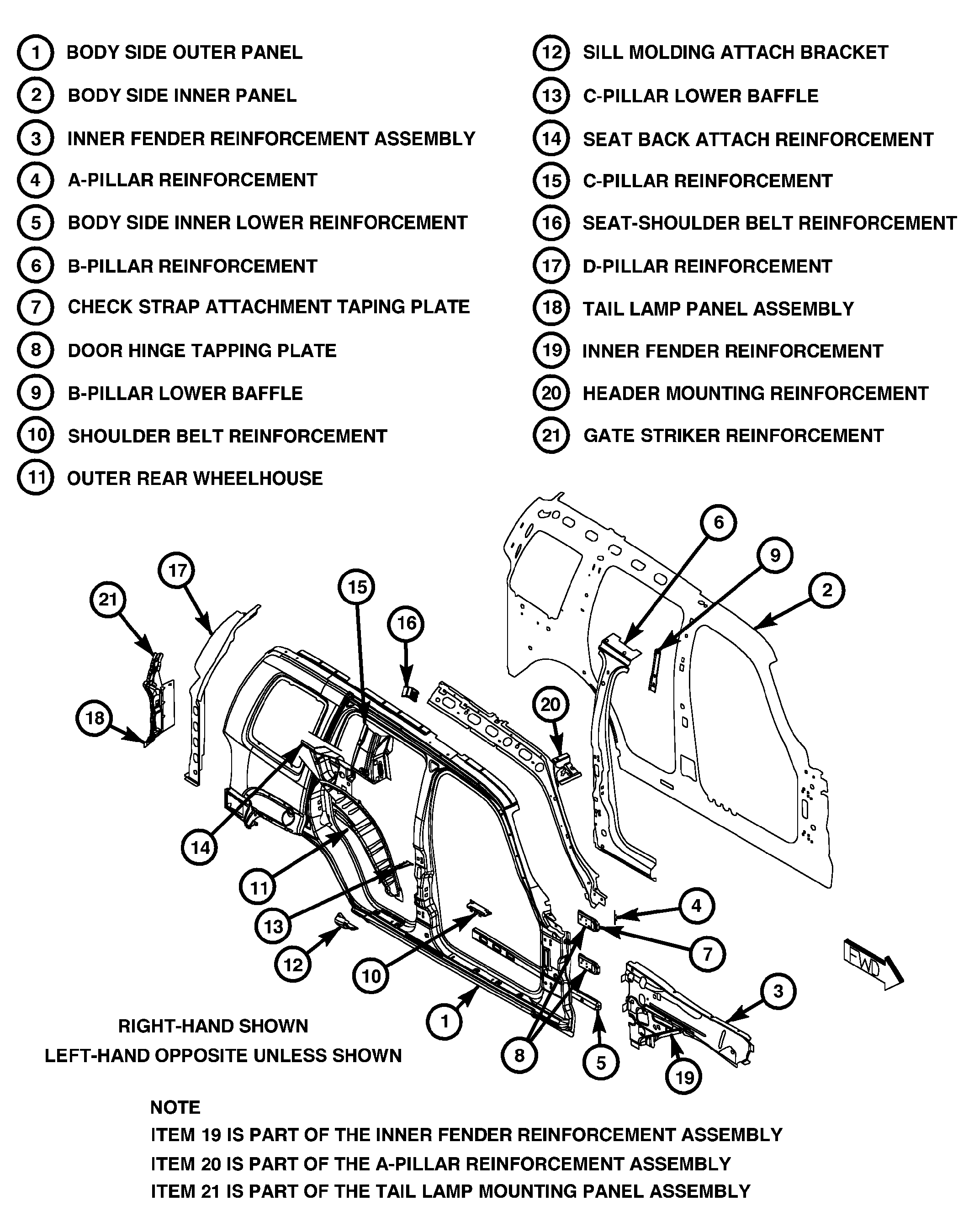

Fig 1: Body Side Panel Assembly

Courtesy of DAIMLERCHRYSLER CORP.

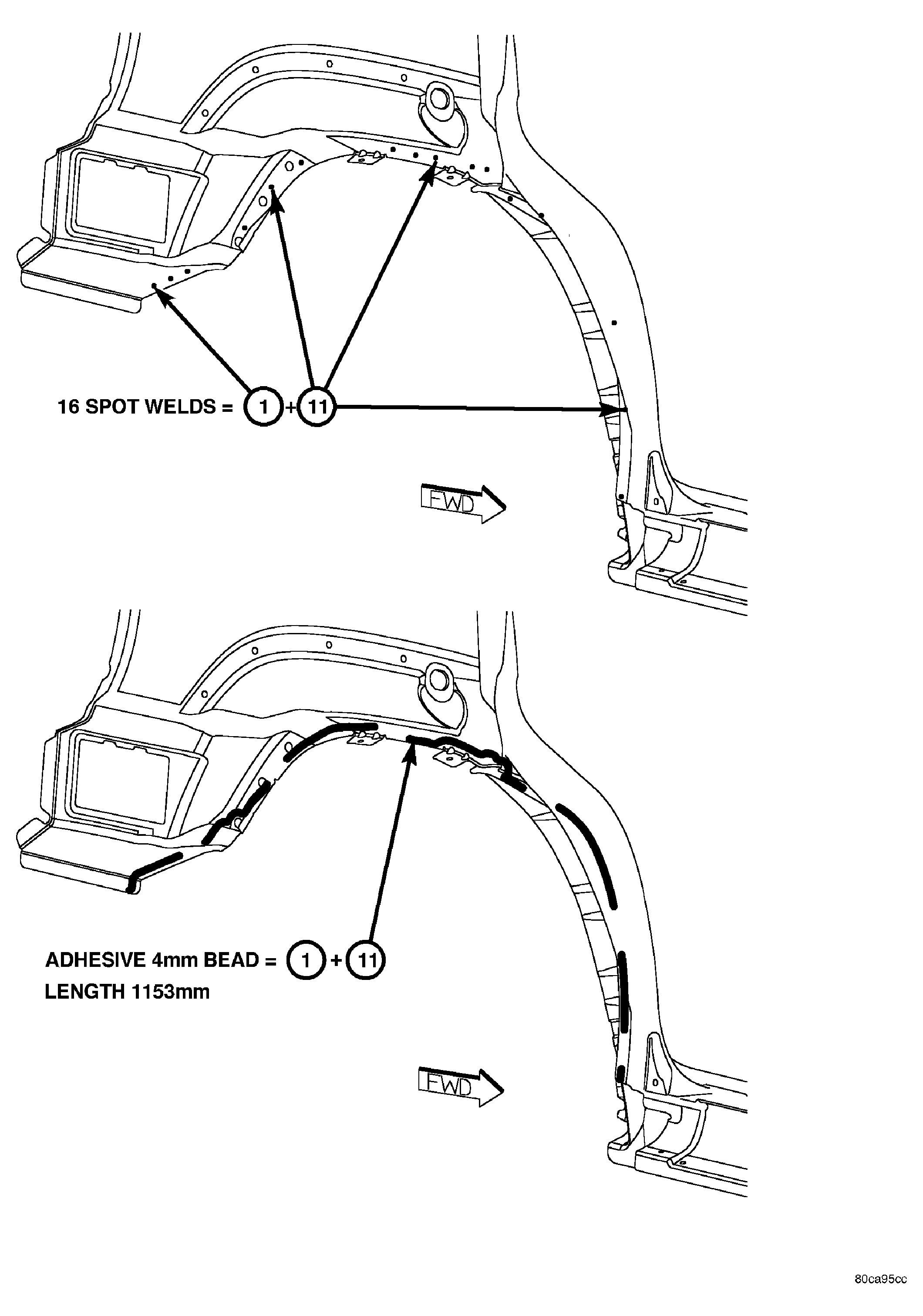

Fig 2: 011 Fender Reinforcement

Courtesy of DAIMLERCHRYSLER CORP.

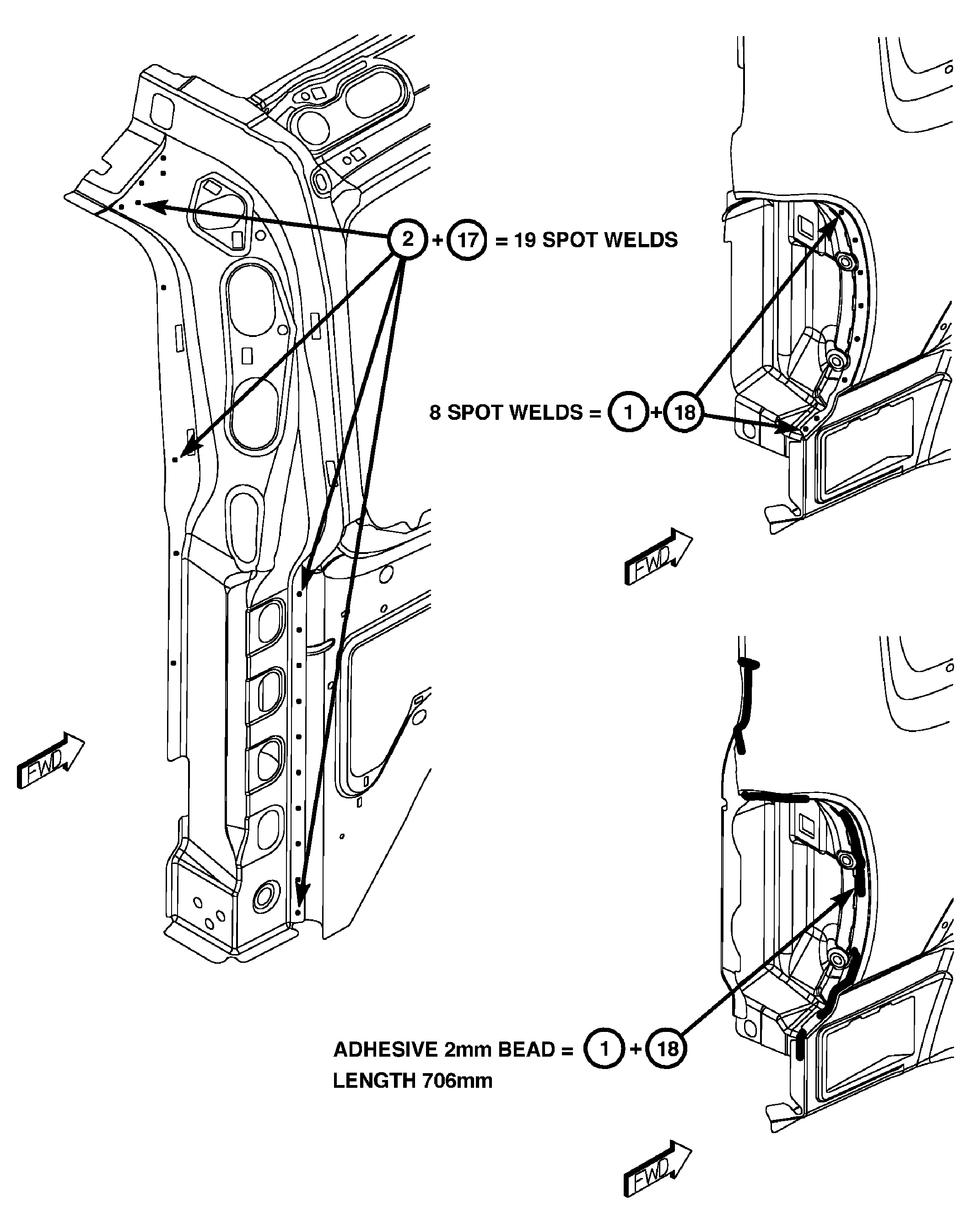

Fig 3: A-Pillar; Fender Reinforcement

Courtesy of DAIMLERCHRYSLER CORP.

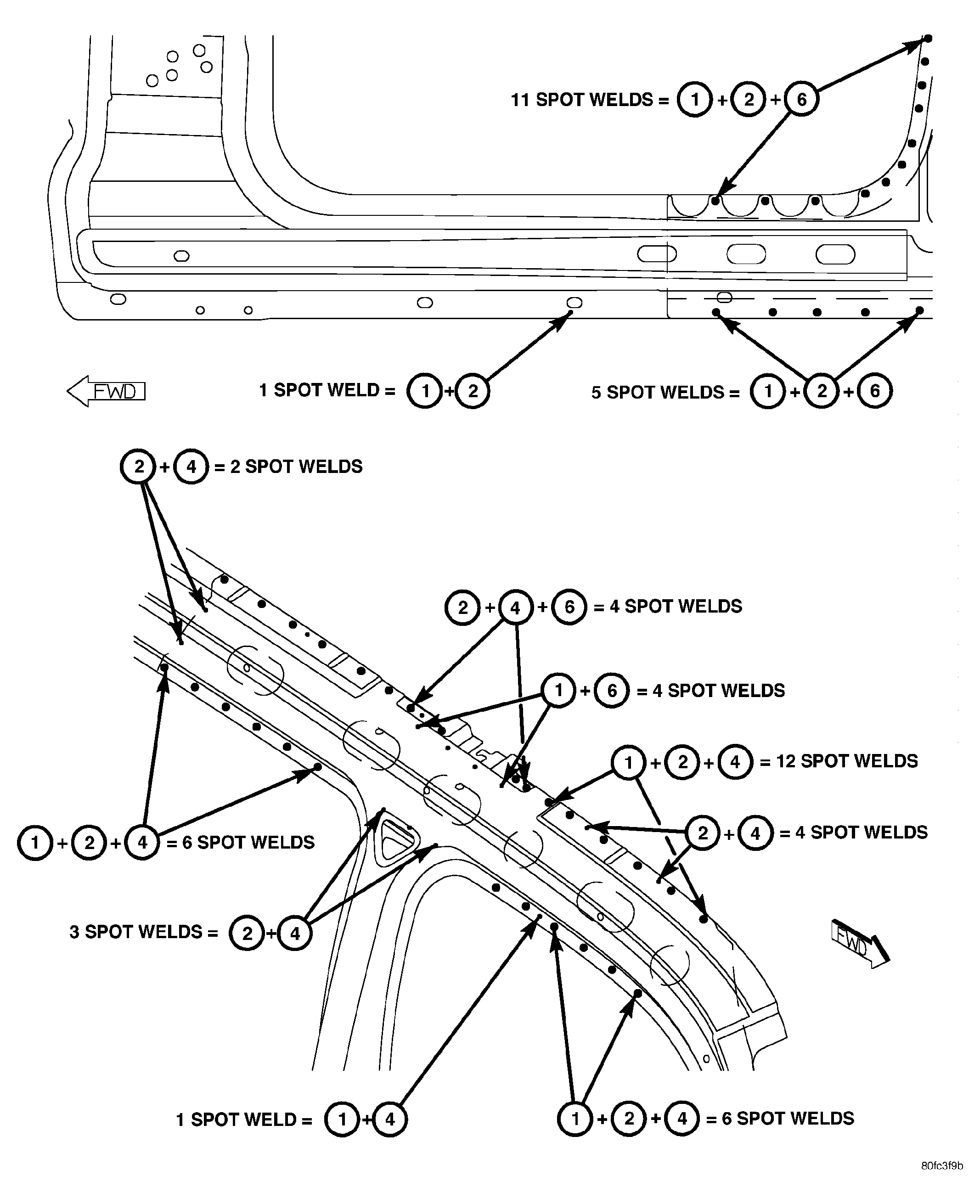

Fig 4: Upper And Lower Body Side Panel

Courtesy of DAIMLERCHRYSLER CORP.

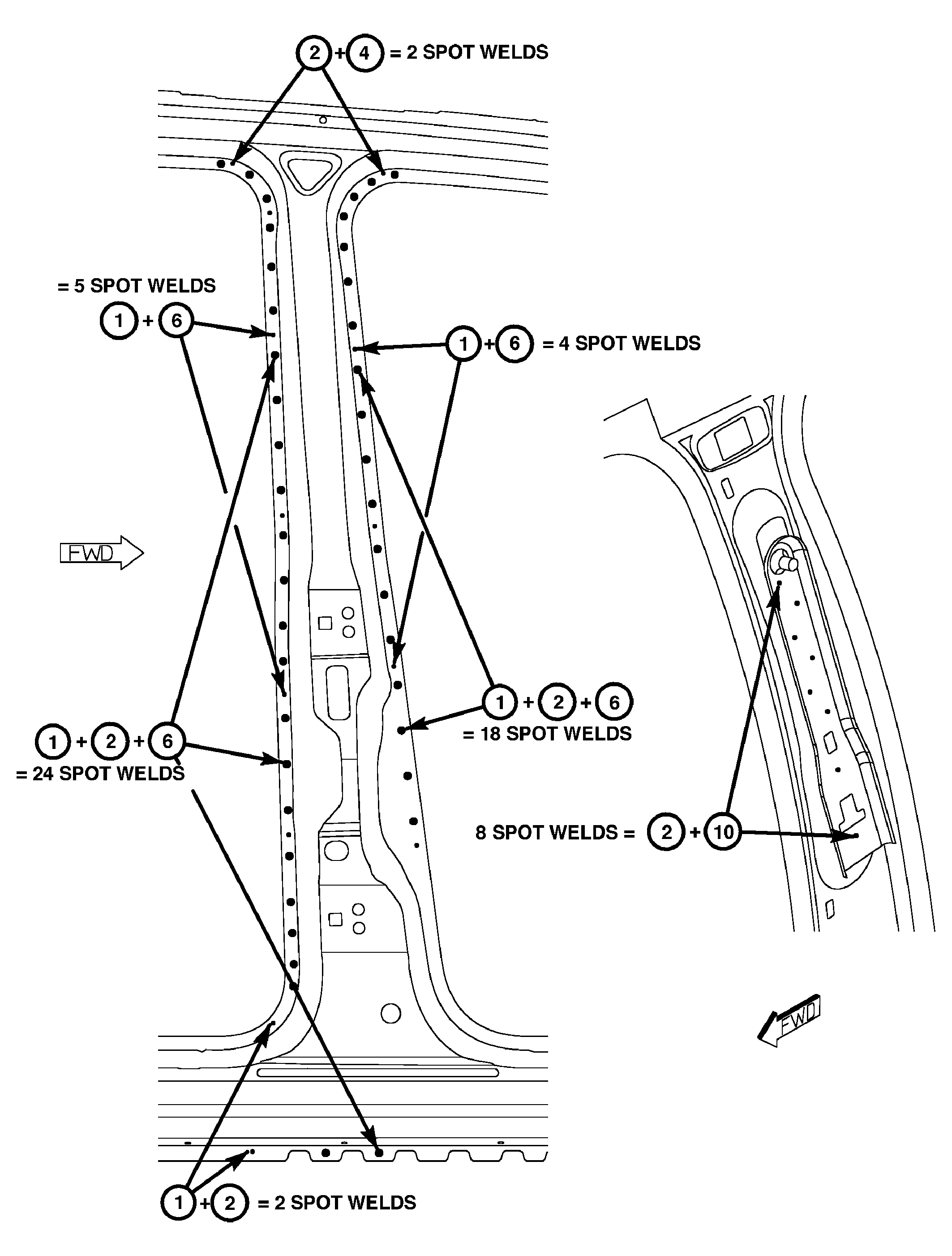

Fig 5: B-Pillar

Courtesy of DAIMLERCHRYSLER CORP.

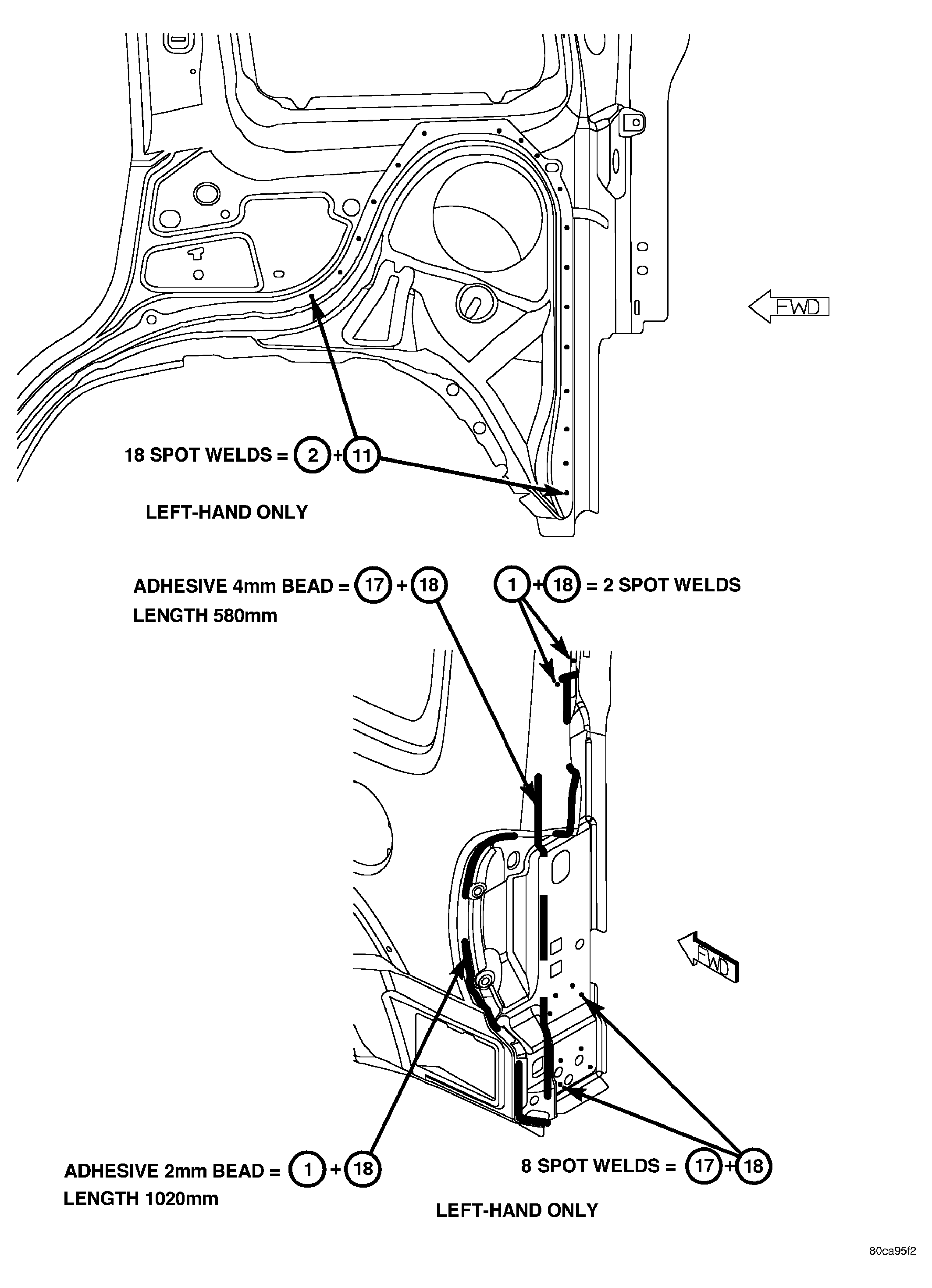

Fig 6: C-Pillar

Courtesy of DAIMLERCHRYSLER CORP.

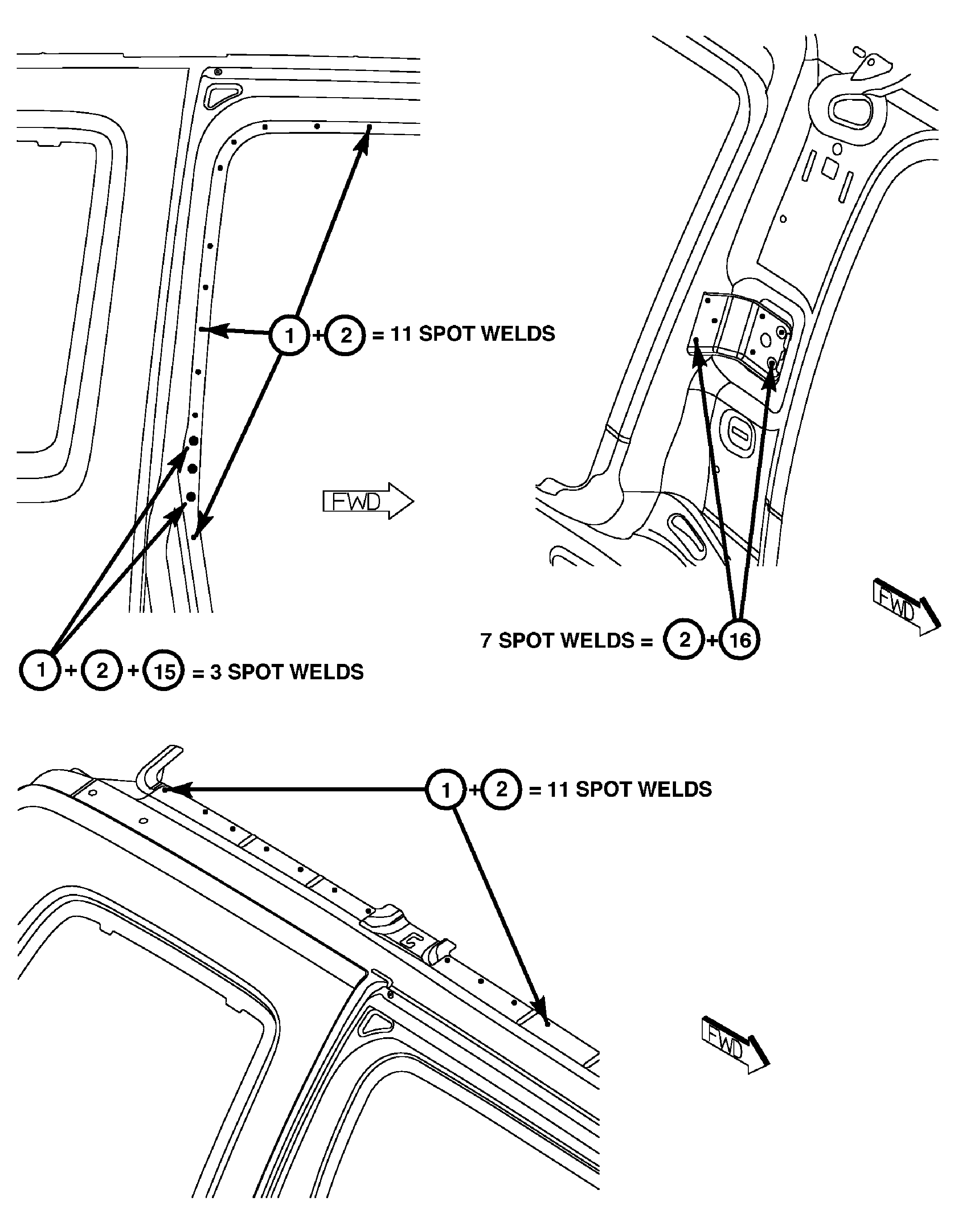

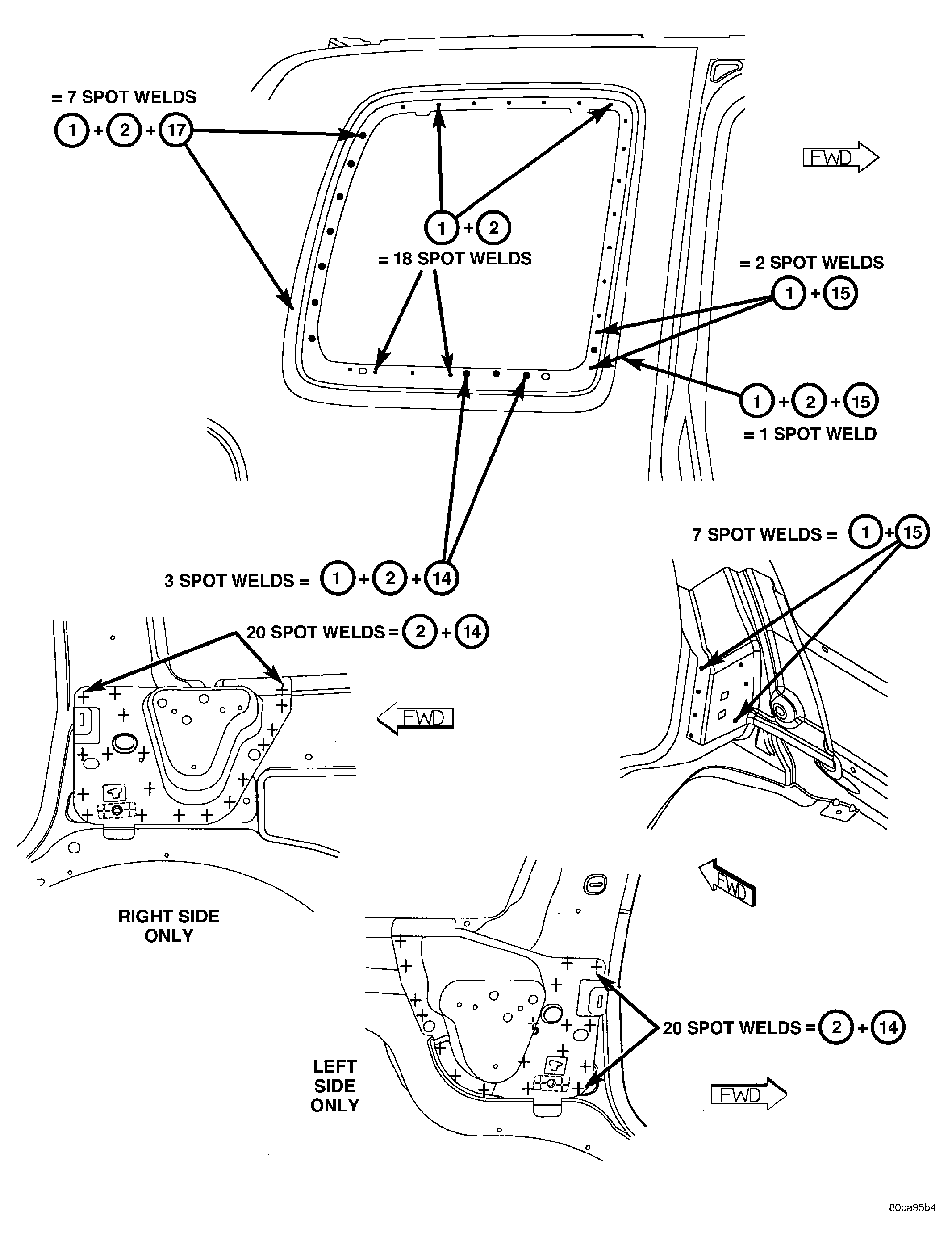

Fig 7: 012 Quarter Window Opening

Courtesy of DAIMLERCHRYSLER CORP.

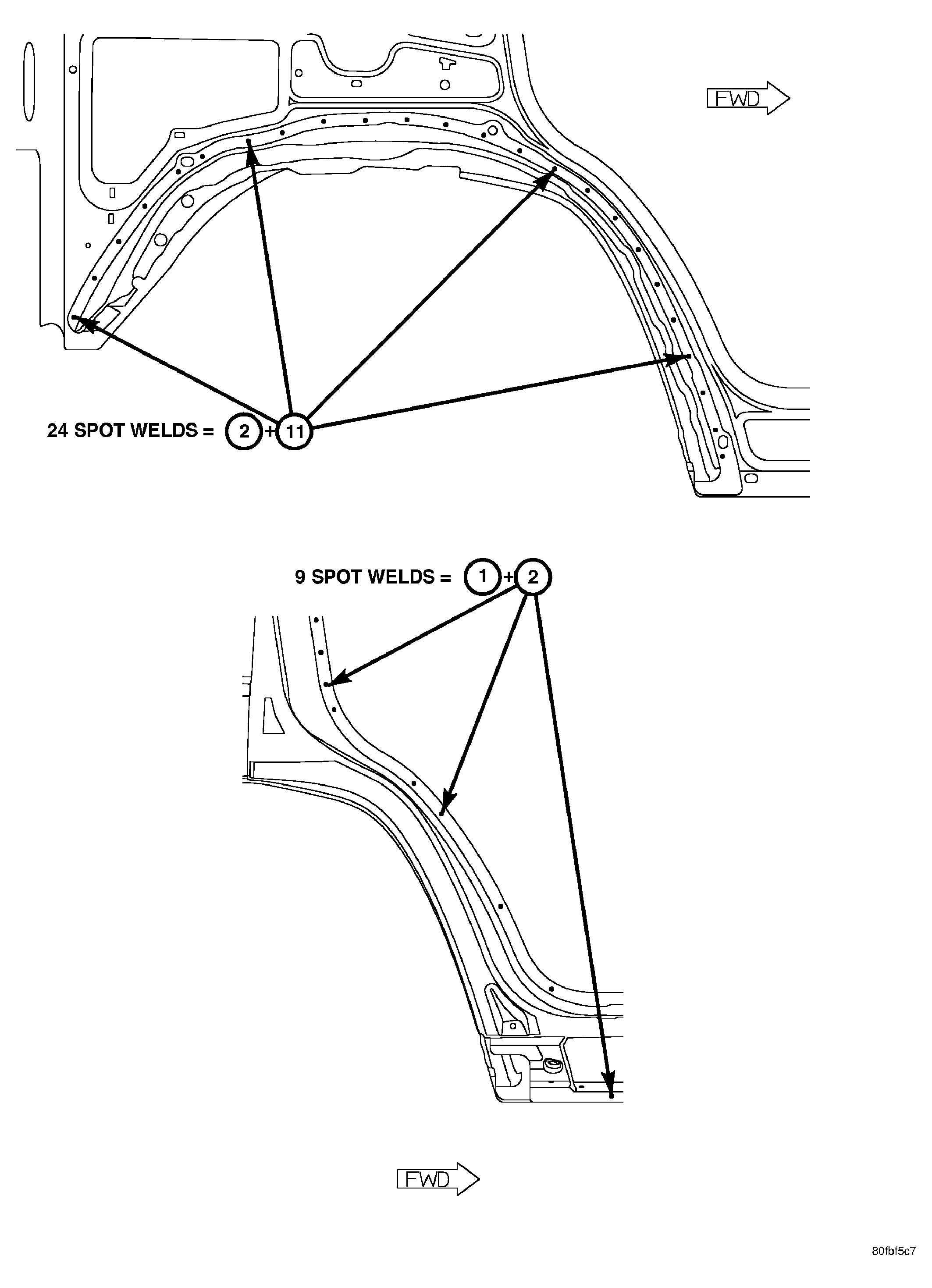

Fig 8: Outer Rear Wheelhouse

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: 013 Outer Rear Wheelhouse

Courtesy of DAIMLERCHRYSLER CORP.

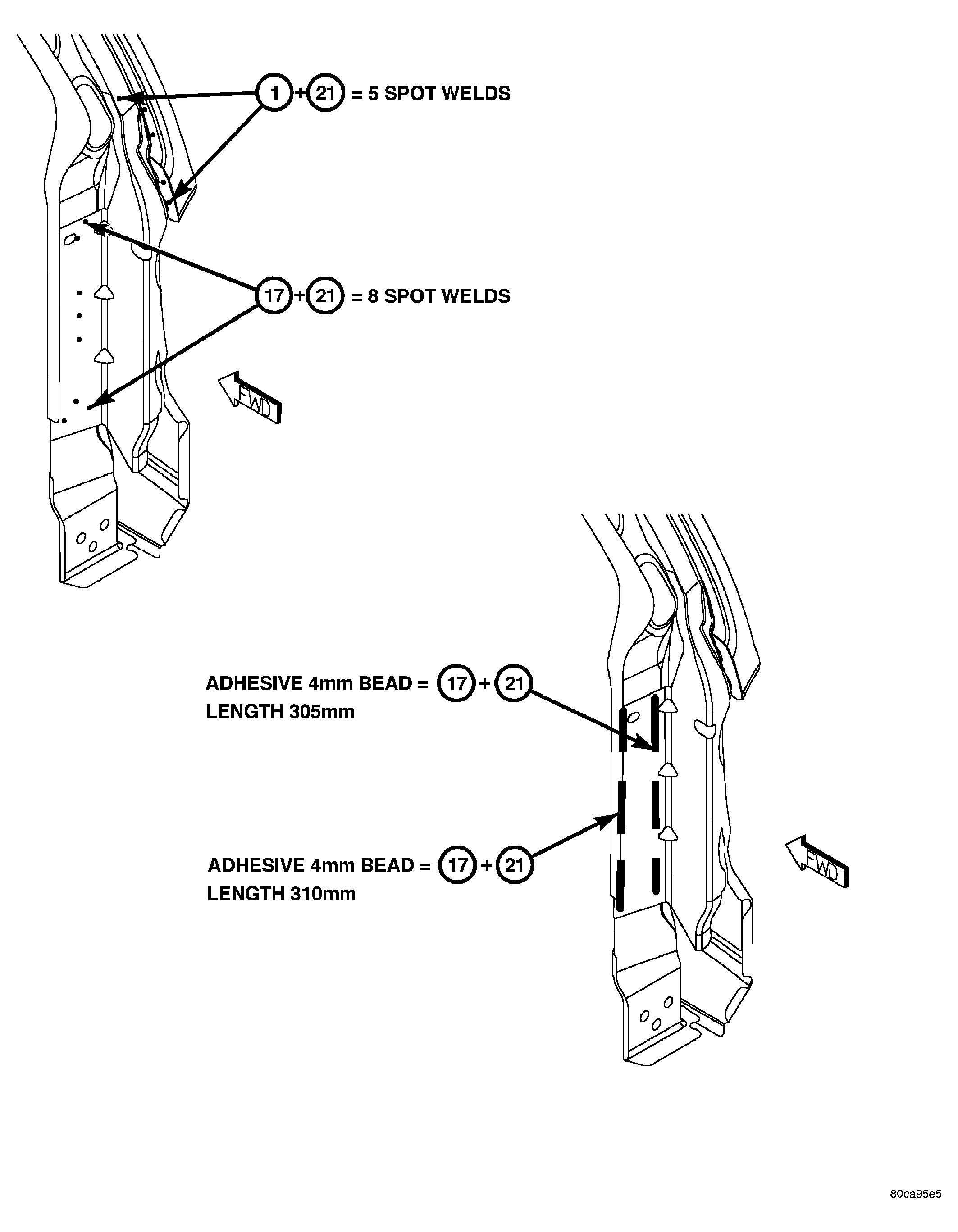

Fig 10: D-Pillar

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: 014 Swing Gate Striker Reinforcement

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: 015 Rear Wheelhouse And Tail Lamp

Courtesy of DAIMLERCHRYSLER CORP.
