Opening Dimensions: Specifications

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

INDEX

DESCRIPTION	FIGURE
ENGINE COMPARTMENT	(Fig 1.)
WINDSHIELD OPENING	(Fig 2.)
BODY SIDE OPENINGS	(Fig 3.)
SWING GATE OPENING	(Fig 4.)

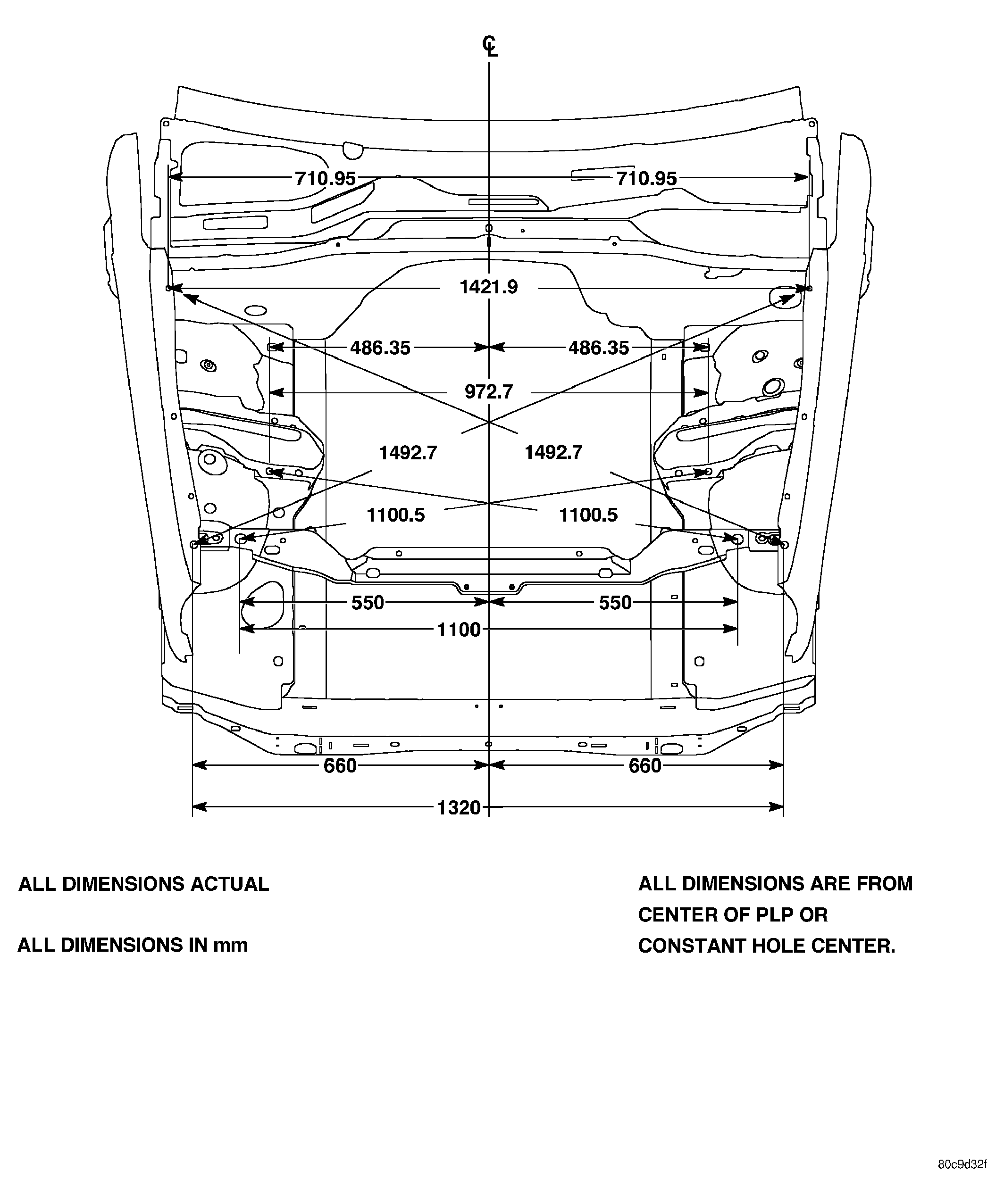

Fig 1: Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

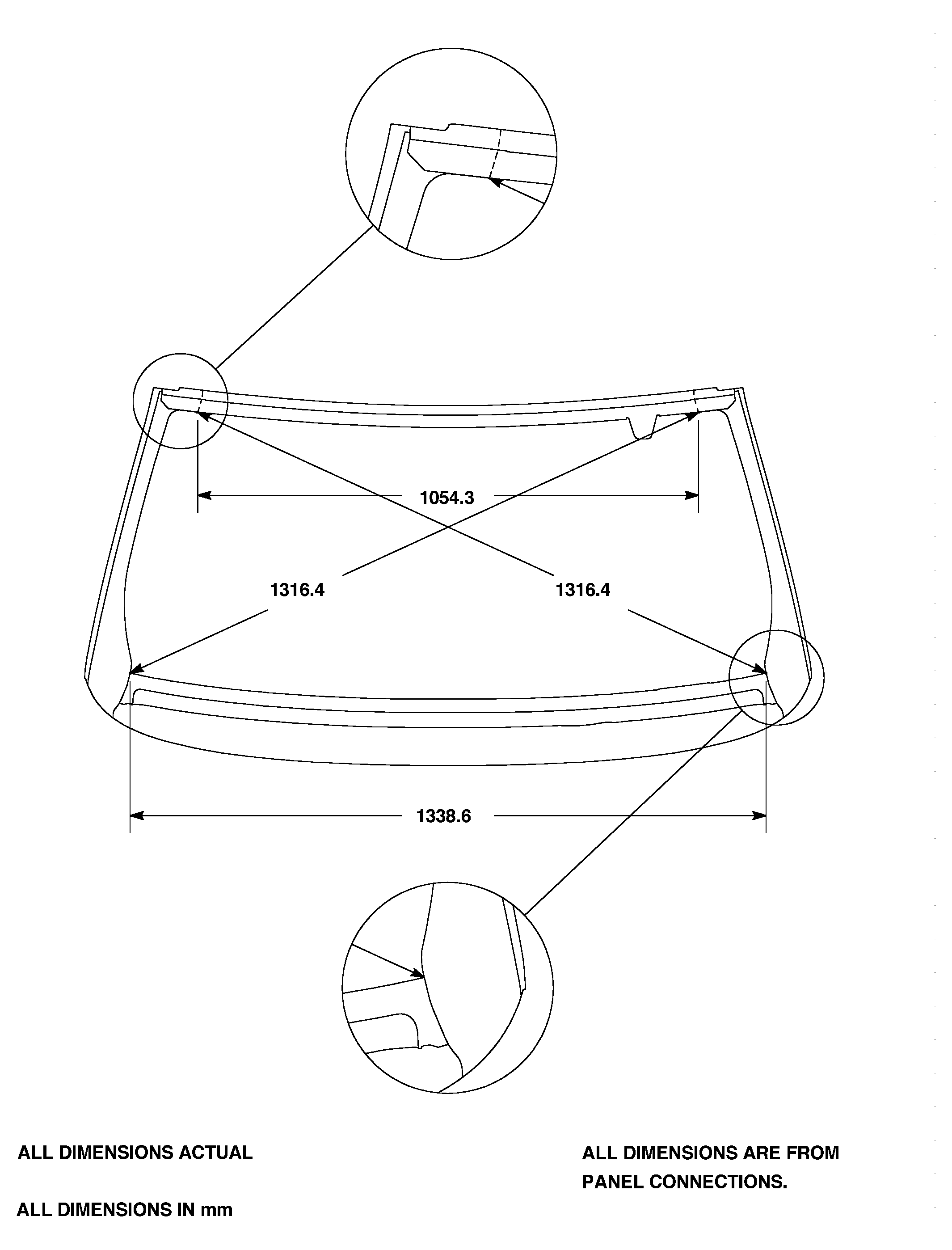

Fig 2: Windshield Opening

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Body Side Openings

Courtesy of DAIMLERCHRYSLER CORP.

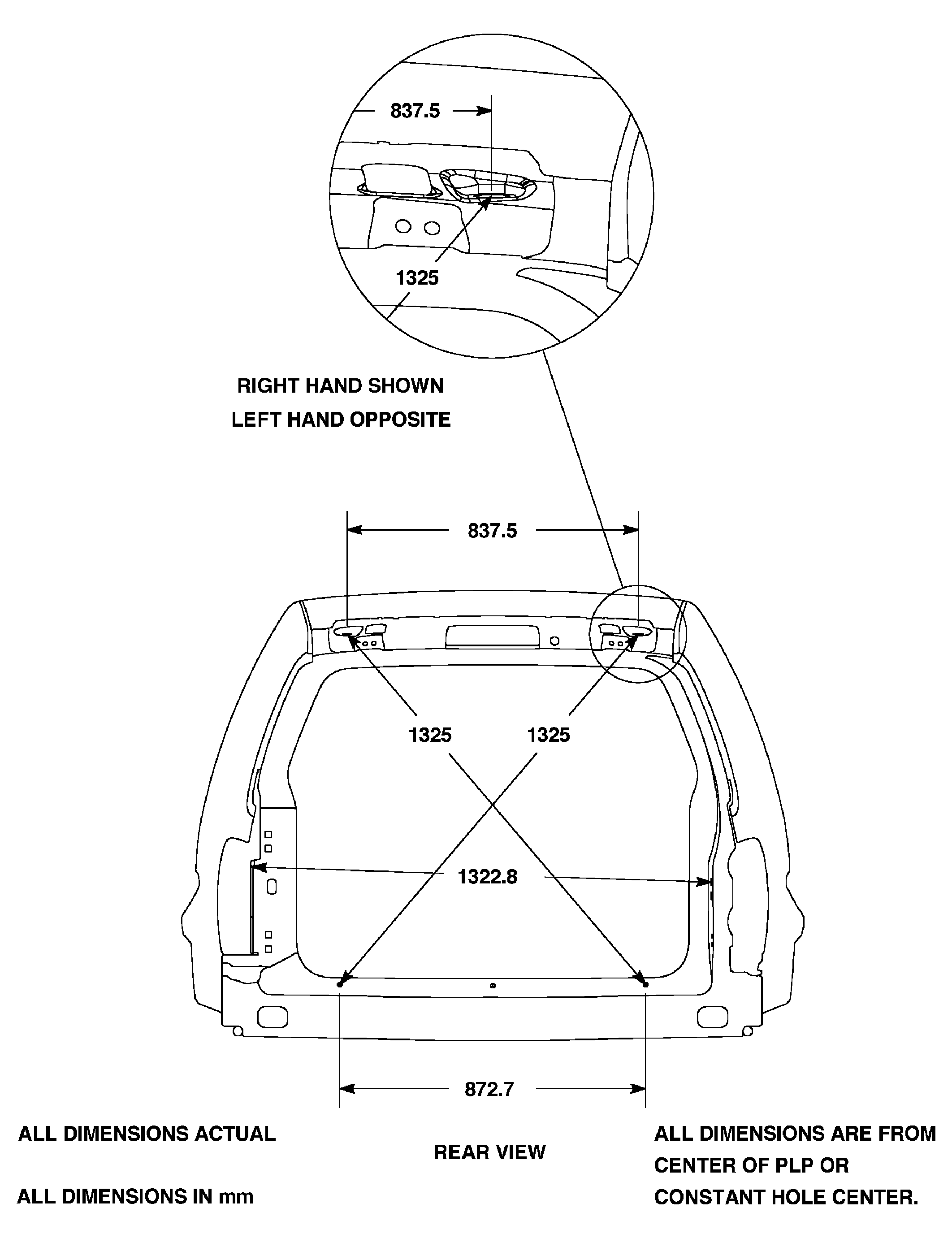

Fig 4: Swing Gate Opening

Courtesy of DAIMLERCHRYSLER CORP.
