Gap And Flush: Specifications
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
GAP & FLUSH DIMENSIONS INDEX
| DESCRIPTION | FIGURE |
|---|---|

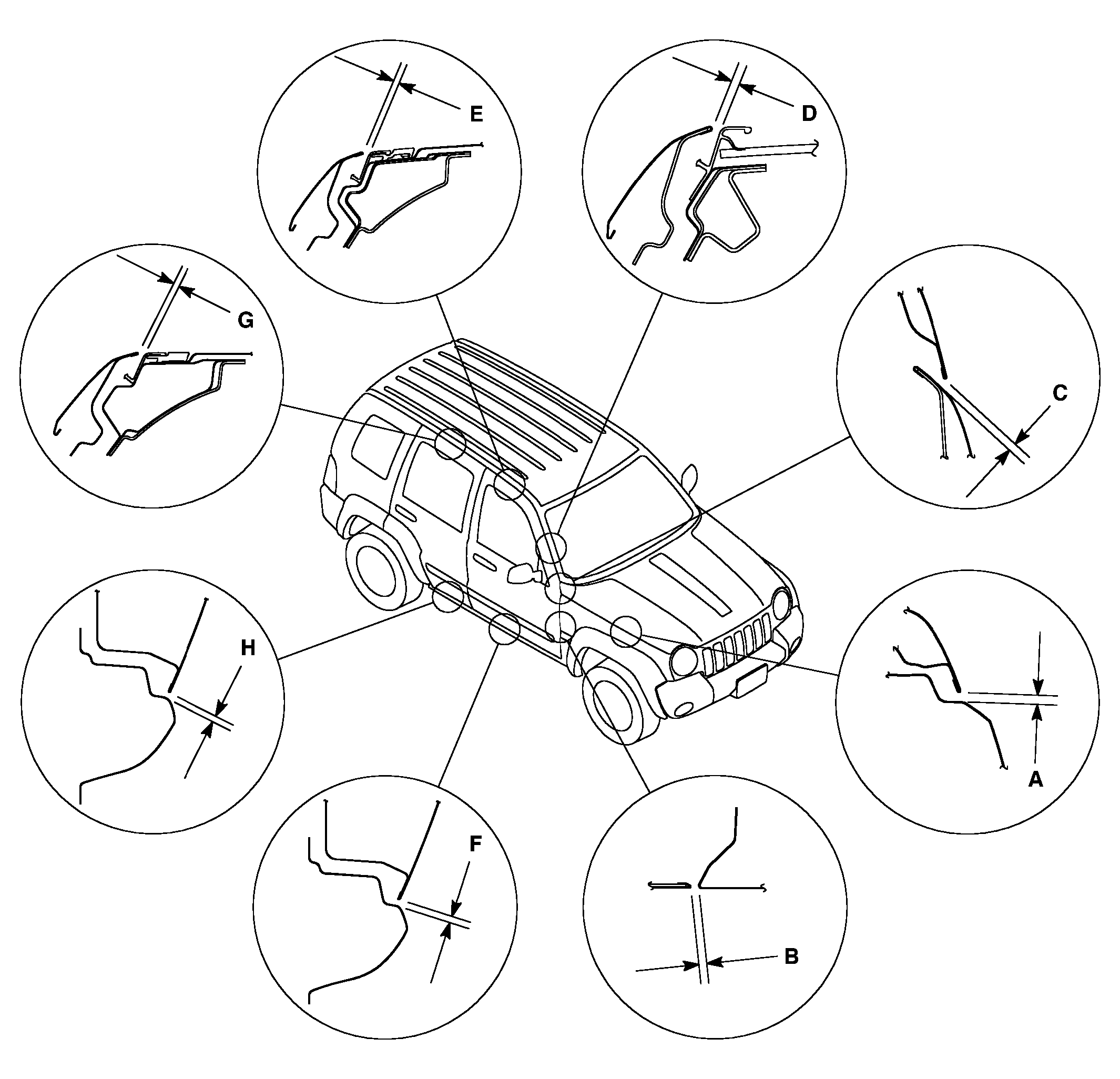

| FRONT QUADRANT | (Fig 1.) |

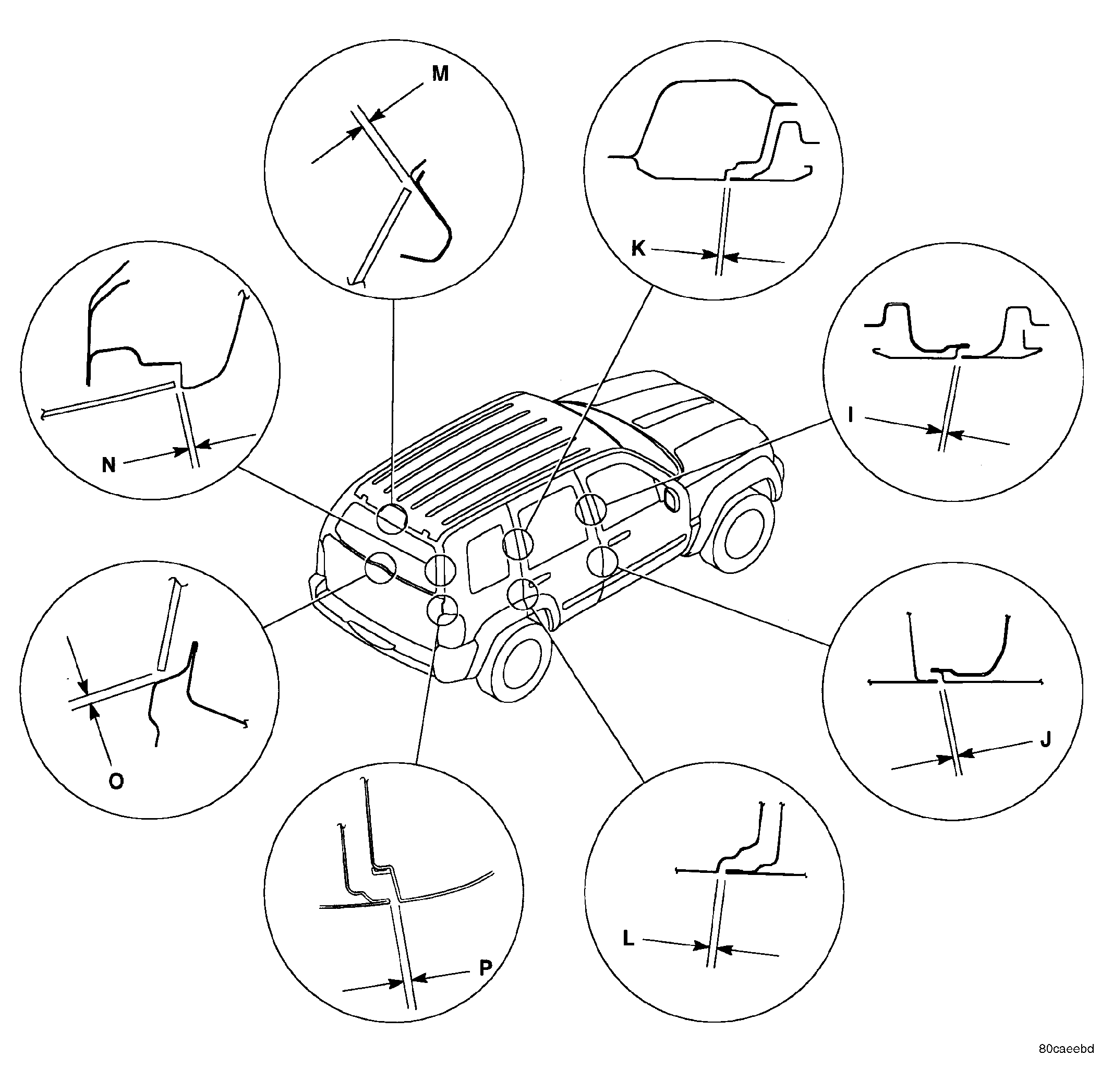

| REAR QUADRANT | (Fig 2.) |
NOTE:
All measurements are in mm.
O/F = Over Flush
U/F = Under Flush
| DIMENSION | GAP | FLUSH | DIMENSION | GAP | FLUSH |
|---|---|---|---|---|---|
| A | 6.0 +/- 2.0 | O/F 12.0 +/- 2.0 | E | 5.0 +/- 1.5 | O/F 3.0 +/- 1.5 |
| B | 5.0 +/- 1.0 | O/F 0.5 +/- 1.5 | F | 6.0 +/- 2.0 | - |
| C | 6.0 +1.5/- 2.0 | - | G | 5.0 +/- 1.5 | O/F 3.0 +/- 1.5 |
| D | 5.0 +1.0/- 2.0 | O/F 5.0 +/- 1.5 | H | 6.0 +/- 2.0 | - |
NOTE:
All measurements are in mm.
O/F = Over Flush
U/F = Under Flush
| DIMENSION | GAP | FLUSH | DIMENSION | GAP | FLUSH |
|---|---|---|---|---|---|
| I | 5.0 +/- 1.0 | 0.0 +/- 1.5 | M | 6.0 +/- 1.5 | U/F 4.7 +2.5/-1.0 |
| J | 5.0 +/- 1.0 | 0.0 +/- 1.5 | N | 6.0 +/- 1.5 | U/F 4.0 +2.5/-1.0 |
| K | 5.0 +/- 1.0 | 0.0 +/- 1.5 | O | 6.0 +/- 1.5 | 0.0 - 2.0 O/F |
| L | 5.0 +/- 1.0 | 0.0 +/- 1.5 | P | 5.0 +/- 1.0 | U/F 0.5 +/- 1.0 |
