Standard Procedure - Hoisting Recommendations: Notes
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
Refer to the Owner's Manual for emergency vehicle lifting procedures.

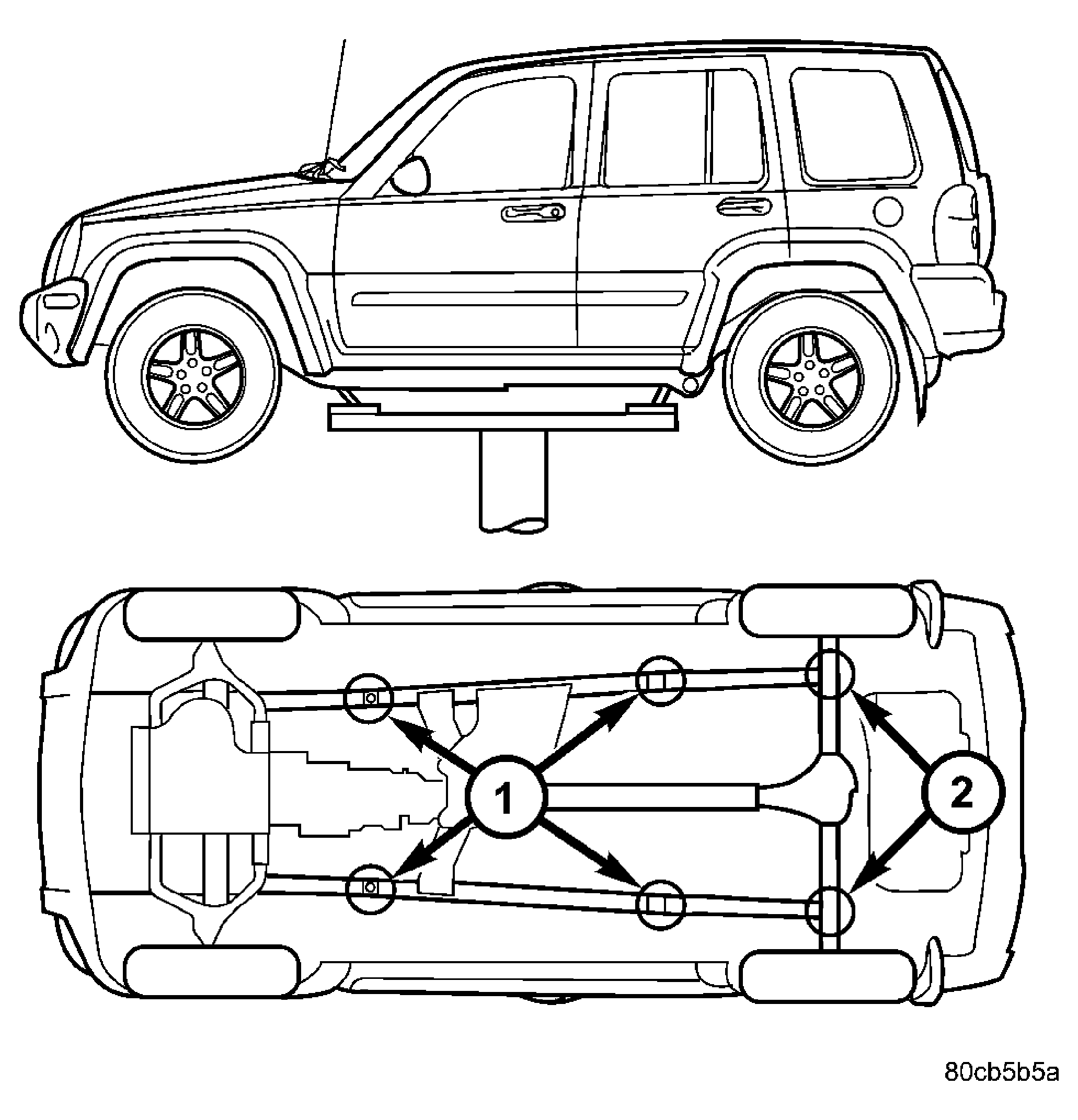

When properly positioned, a floor jack can be used to lift a Jeep vehicle. See Fig 1. Support the vehicle in the raised position with jack stands at the front and rear ends of the frame rails.
| 1 - | Frame Contact Lift (Single Post) |
| - | Chassis Lift (Non-Axle Dual Post) |
| - | Outboard Lift (Dual Post) |
| - | Floor Jack |
| 2 - | Floor Jack |
CAUTION:
Do not attempt to lift a Jeep vehicle with a floor jack positioned under:
- A body side sill.
- A steering linkage component.
- A drive shaft.
- The engine or transmission oil pan.
- The fuel tank.
- A front suspension arm.
- Transfer case.
NOTE:
Use the correct sub-frame rail or frame rail lifting locations only.
