Rocker Arms: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

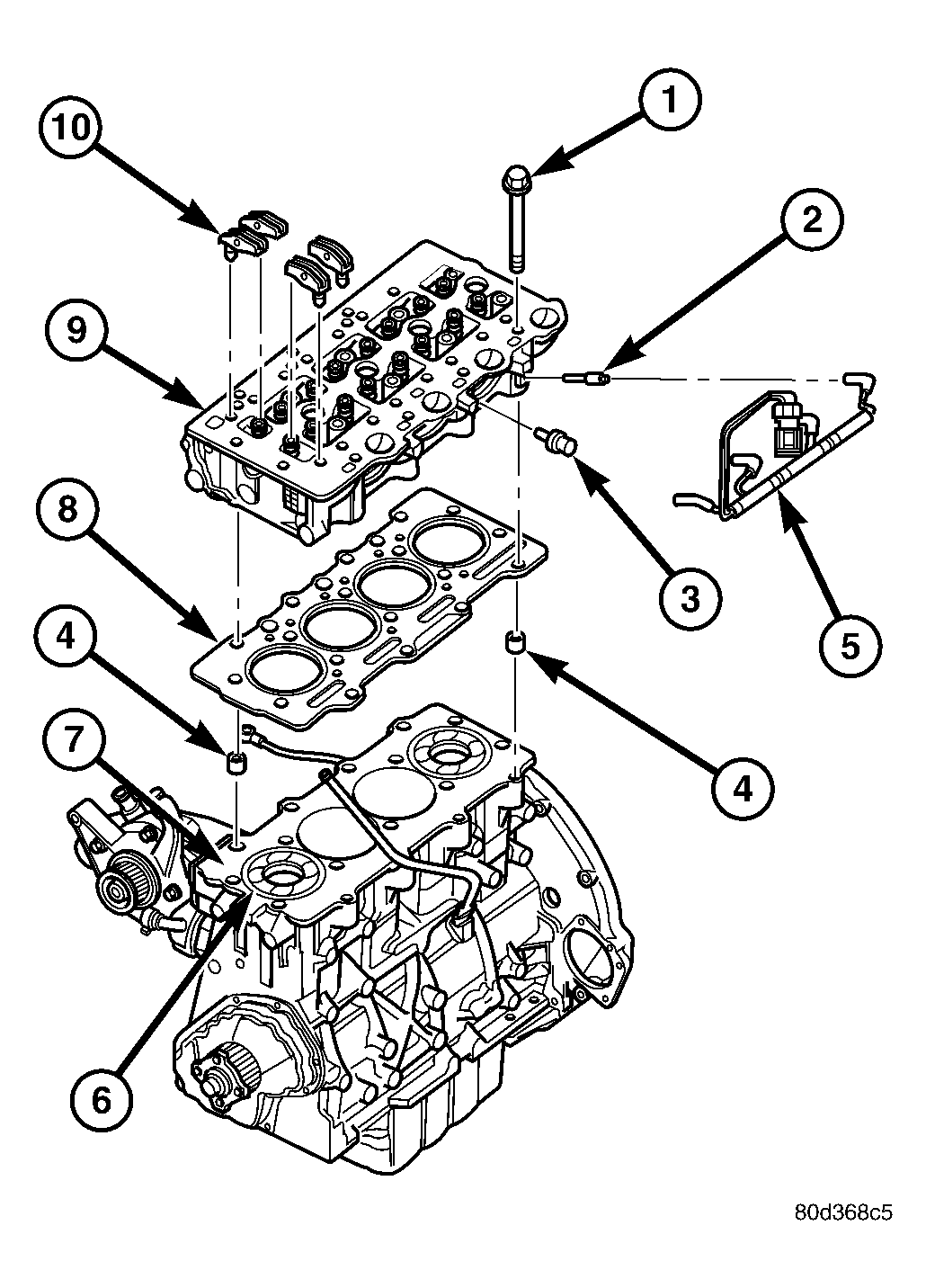

The rocker arms are made of stamped steel and serviced as an assembly along with the lifter. The rocker arm also has a fracture point. This fracture point is designed to prevent engine failure if the engine is not timed properly or the timing belt breaks suddenly. See Fig 1.
| 1 - CYLINDER HEAD BOLT |
| 2 - GLOW PLUG |
| 3 - COOLANT FITTING |
| 4 - CYLINDER HEAD ALIGNMENT DOWEL |
| 5 - GLOW PLUG HARNESS |
| 6 - CYLINDER LINER |
| 7 - CYLINDER BLOCK |
| 8 - CYLINDER HEAD GASKET |
| 9 - CYLINDER HEAD |
| 10 - ROCKER ARM ASSEMBLIES |
