Piston Pin - Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Secure connecting rods in a soft jawed vice.

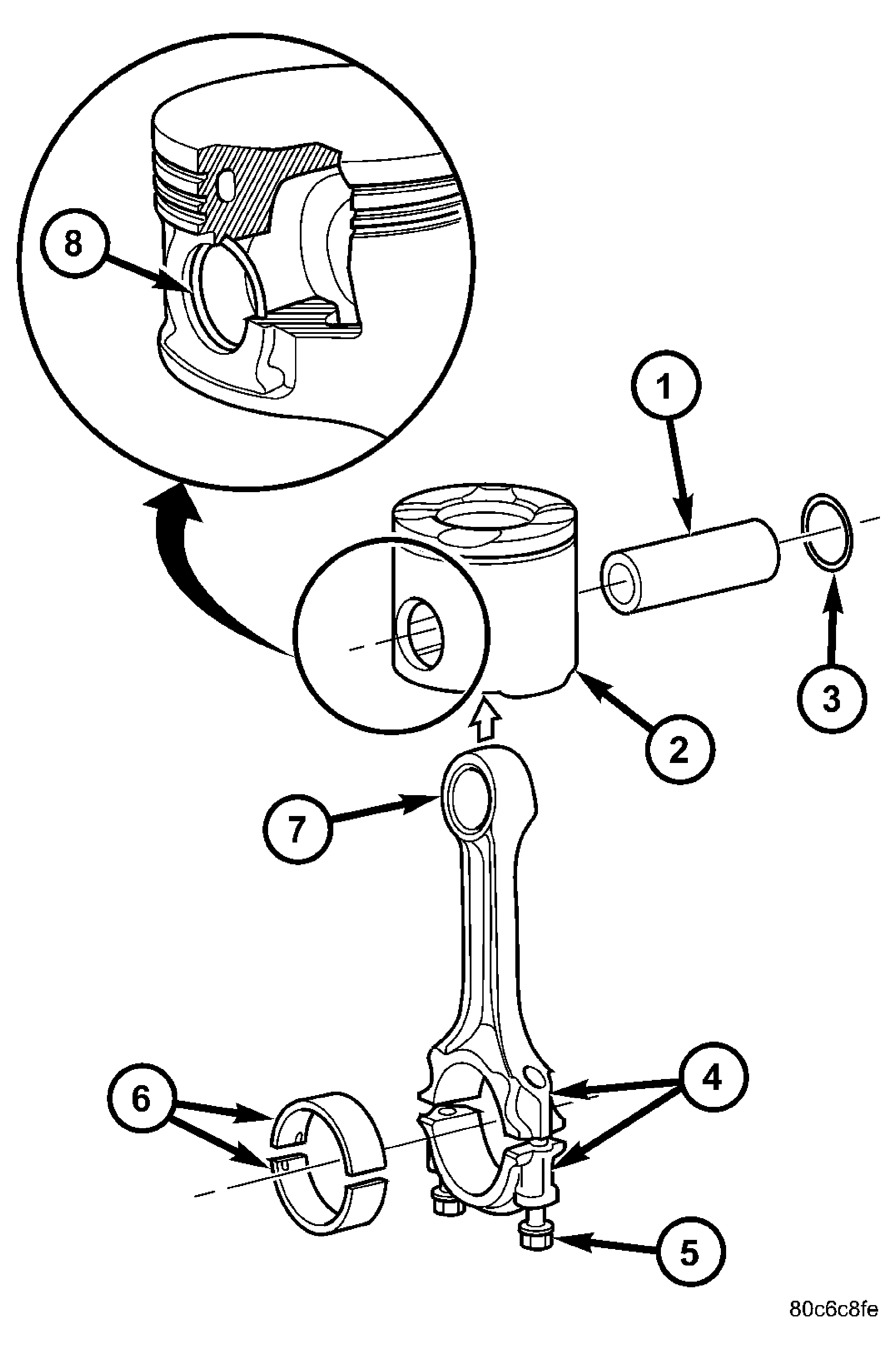

- Remove 2 snap rings securing piston pin. See Fig 1.
- Push piston pin out of piston and connecting rod. See Fig 1.
| 1 - PISTON PIN |
| 2 - PISTON |
| 3 - SNAP RING |
| 4 - CONNECTING ROD ALIGNMENT NUMBERS |
| 5 - CONNECTING ROD BOLT |
| 6 - CONNECTING ROD BEARING |
| 7 - CONNECTING ROD |
| 8 - SNAP RING |
