Piston & Connecting Rod: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

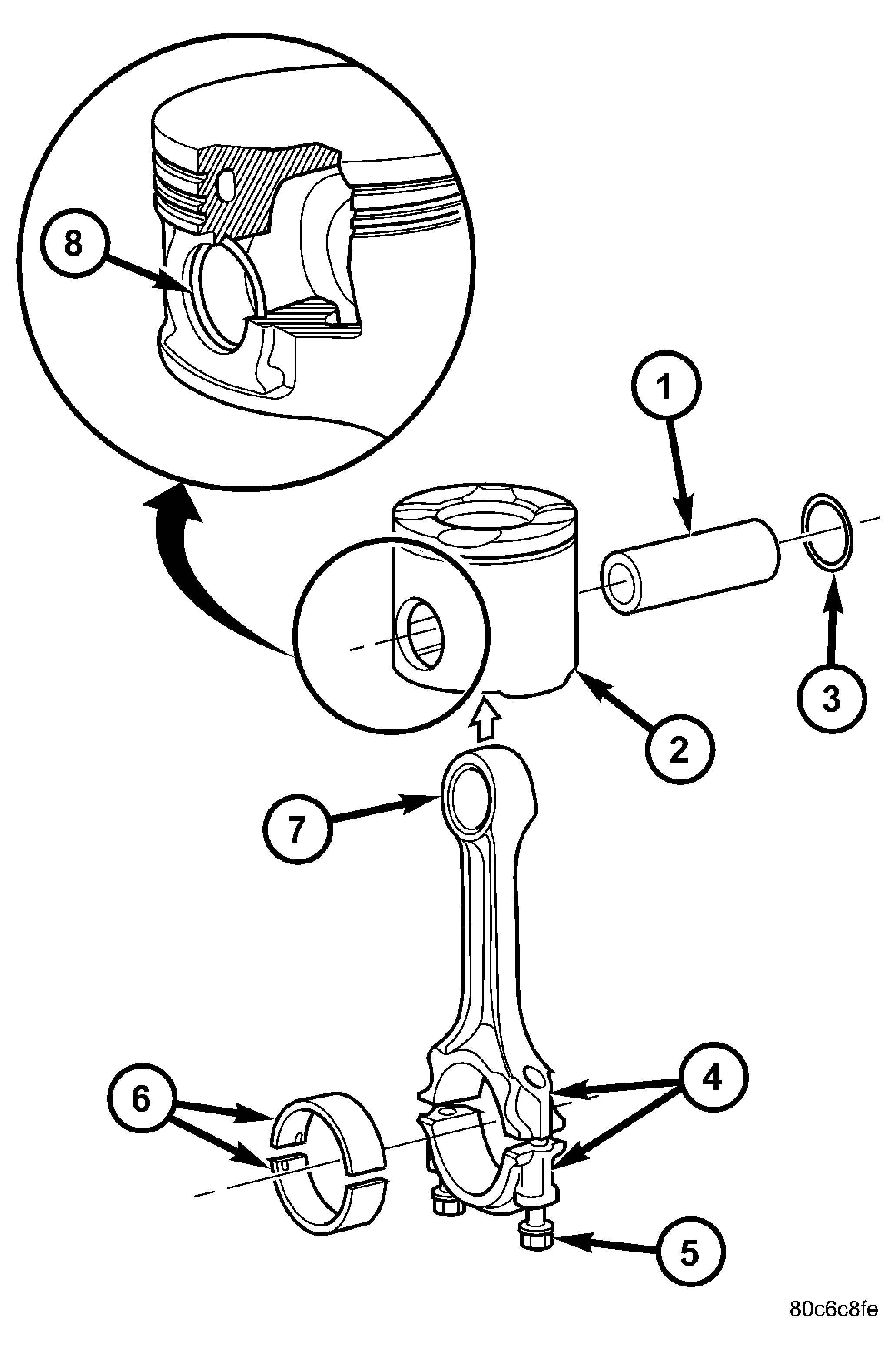

The pistons are of a free floating design. Oil jets in the engine block lubricate and cool the piston and pin assembly. The connecting rods have a pressed in place wrist pin bushing which is lubricated by the oil jets. Piston rod and bearing caps have cracked mating surfaces and are not interchangeable. See Fig 1.
| 1 - PISTON PIN |
| 2 - PISTON |
| 3 - SNAP RING |
| 4 - PAINTED CONNECTING ROD ALIGNMENT NUMBERS |
| 5 - CONNECTING ROD BOLT |
| 6 - CONNECTING ROD BEARING |
| 7 - CONNECTING ROD |
| 8 - SNAP RING |
