Oil Pressure Sending Unit: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: OIL SENDING UNIT

Courtesy of DAIMLERCHRYSLER CORP.

1 - OIL PAN GASKET

2 - OIL PAN

3 - OIL SENDING UNIT

4 - OIL FILTER

Screw oil pressure sending unit into oil pan and tighten to 14.2 N.m (126 in. lbs.). See Fig 1.
Connect the electrical connector.

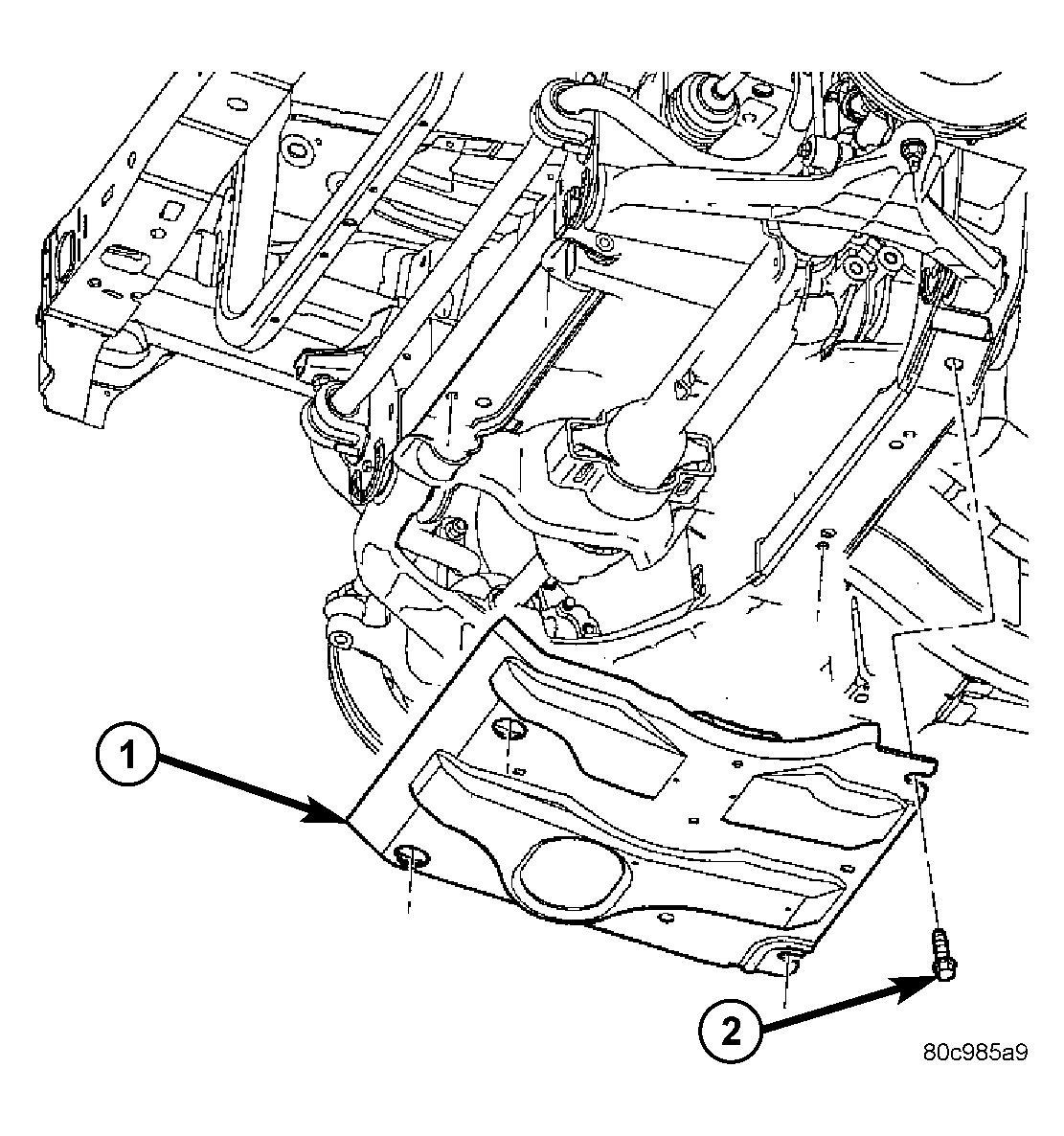

Fig 2: SKID PLATE
Courtesy of DAIMLERCHRYSLER CORP.

1 - SKID PLATE

2 - BOLTS (4)
Install the front skid plate and tighten fasteners to 61 N.m (45 ft. lbs.). See Fig 2.
Check and fill engine oil as necessary.
Connect the negative battery cable.
Start engine and inspect for leaks.
