Oil Jet: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

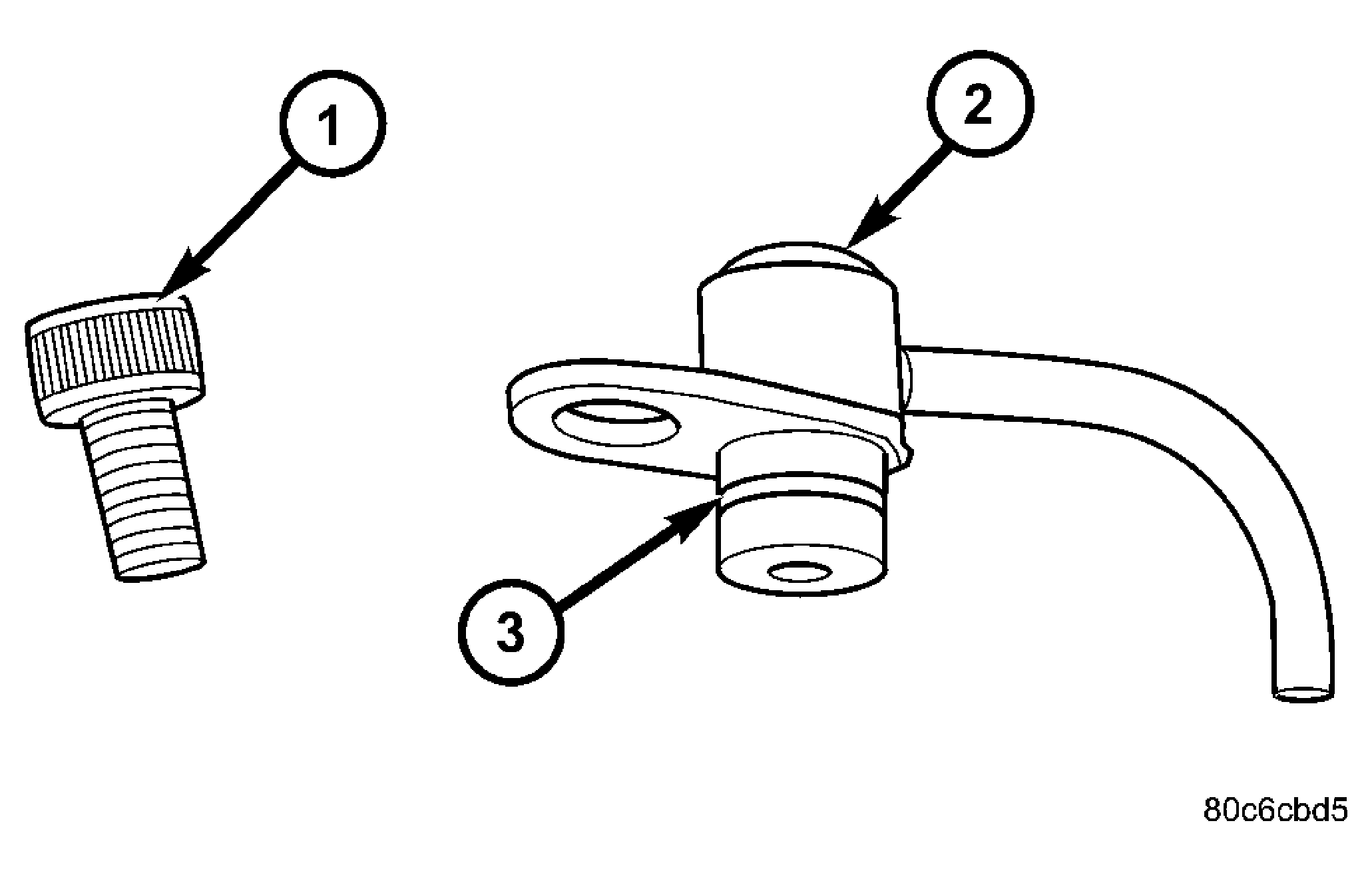

There are four oil jets installed in the engine block. These oil jets are used to cool and lubricate the piston assemblies. See Fig 1.
| 1 - RETAINING BOLT |
| 2 - OIL JET |
| 3 - O-RING |
