Hydraulic Lifters: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

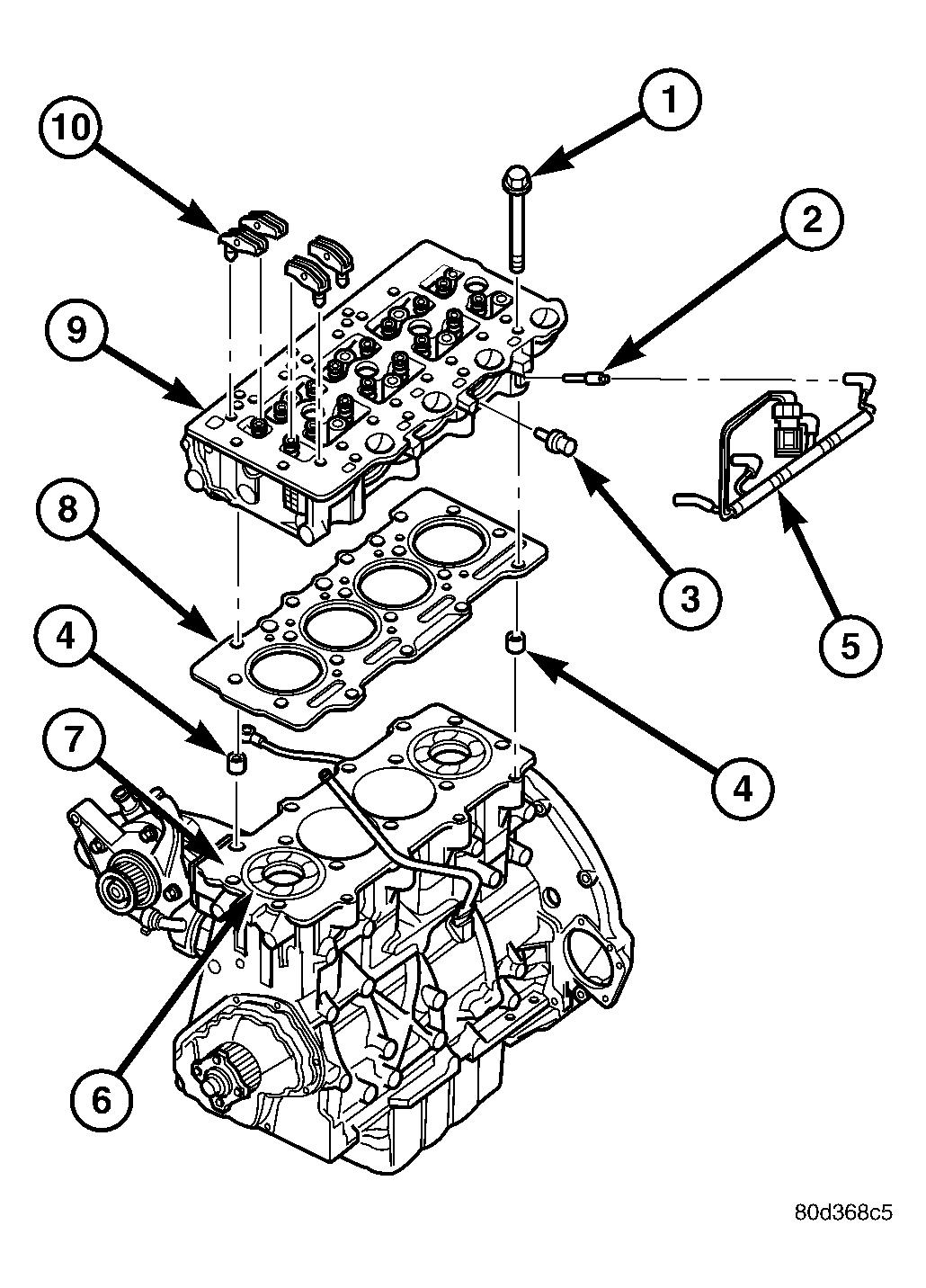

Valve lash is controlled by hydraulic tappets located inside the cylinder head, in tappet bores below the camshafts. See Fig 1.
| 1 - CYLINDER HEAD BOLT |
| 2 - GLOW PLUG |
| 3 - COOLANT TEMPERATURE SENSOR |
| 4 - CYLINDER HEAD ALIGNMENT DOWEL |
| 5 - GLOW PLUG HARNESS |
| 6 - CYLINDER LINER |
| 7 - CYLINDER BLOCK |
| 8 - CYLINDER HEAD GASKET |
| 9 - CYLINDER HEAD |
| 10 - ROCKER ARM ASSEMBLIES |
