Valve Guides

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Valve Guides height requirement.
  2. Measurement A. See Fig 1: 16.50 - 17.00 mm. Measurement B : 14.50 - 15.00 mm.

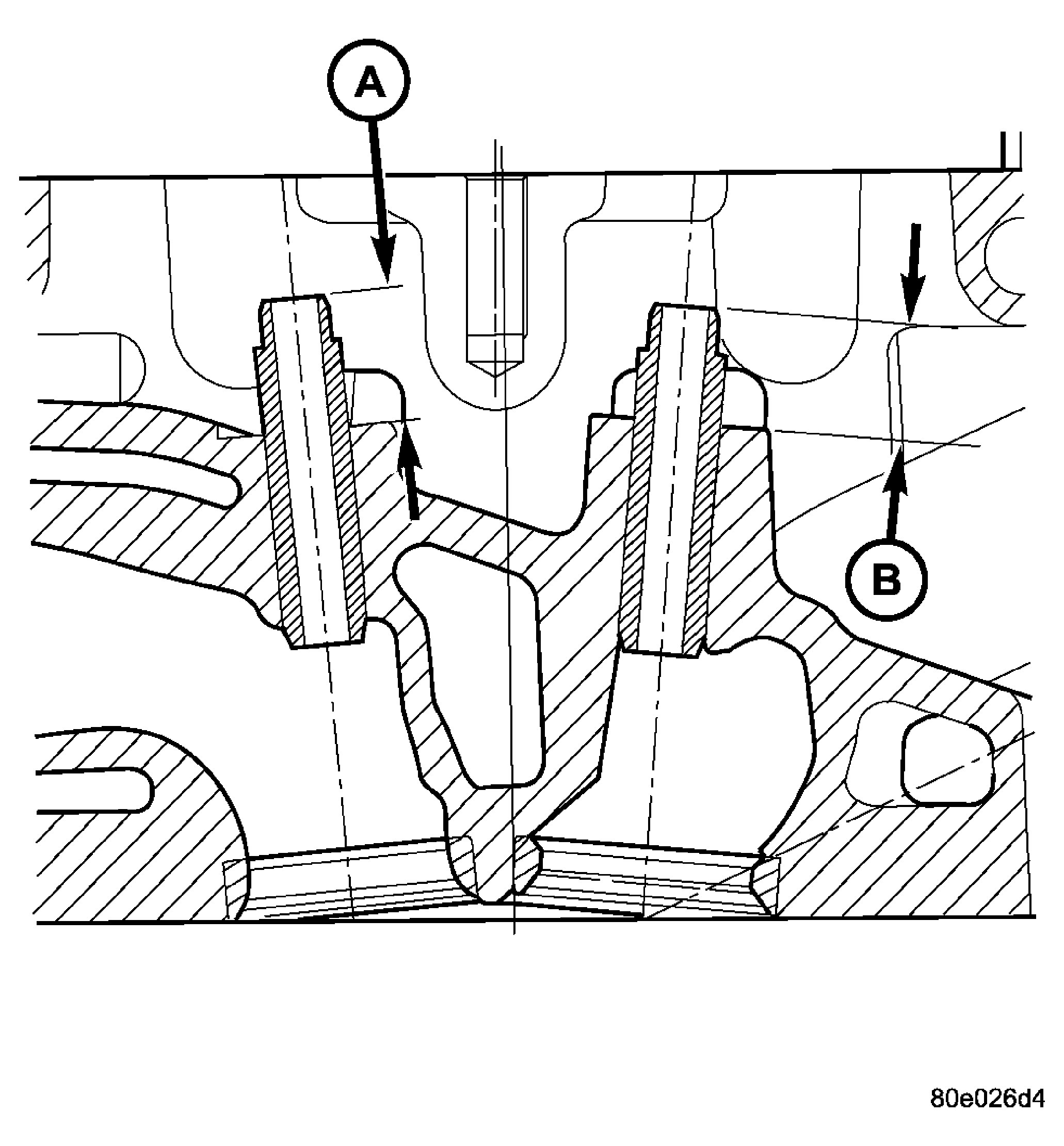

Fig 1: VALVE GUIDE HEIGHT
GC0026137Courtesy of DAIMLERCHRYSLER CORP.
