Crankshaft Front Main Bearing

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

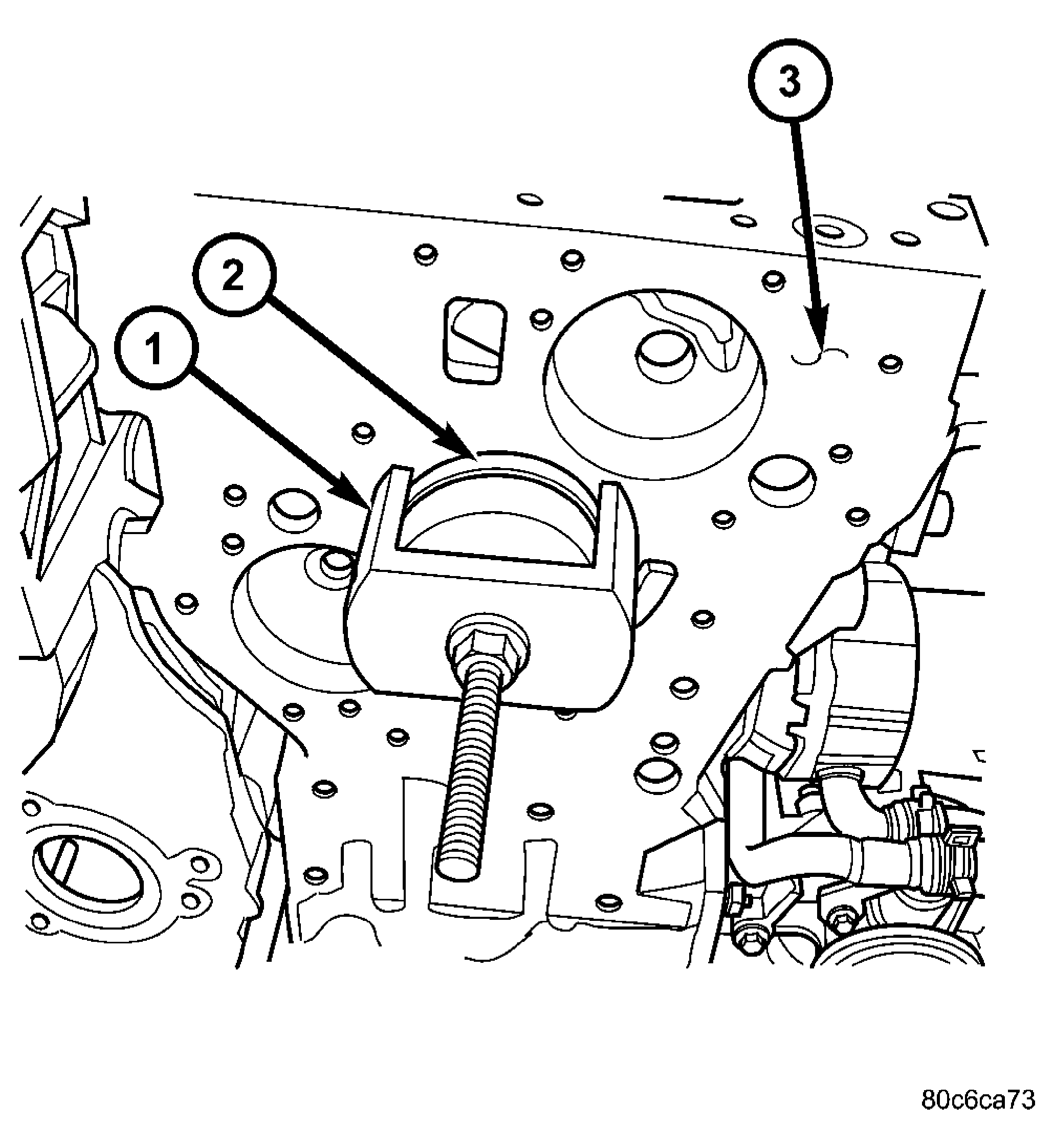

Fig 1: FRONT MAIN BEARING REMOVAL

Courtesy of DAIMLERCHRYSLER CORP.

1 - VM.1073

2 - FRONT CRANKSHAFT MAIN BEARING

3 - ENGINE BLOCK

Using special tool VM.1073 push front main bearing out of front of engine block. See Fig 1.
