Front Crankshaft Main Bearing

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Using special tool VM.1073, push front crankshaft main bearing in engine block. See Fig 1.

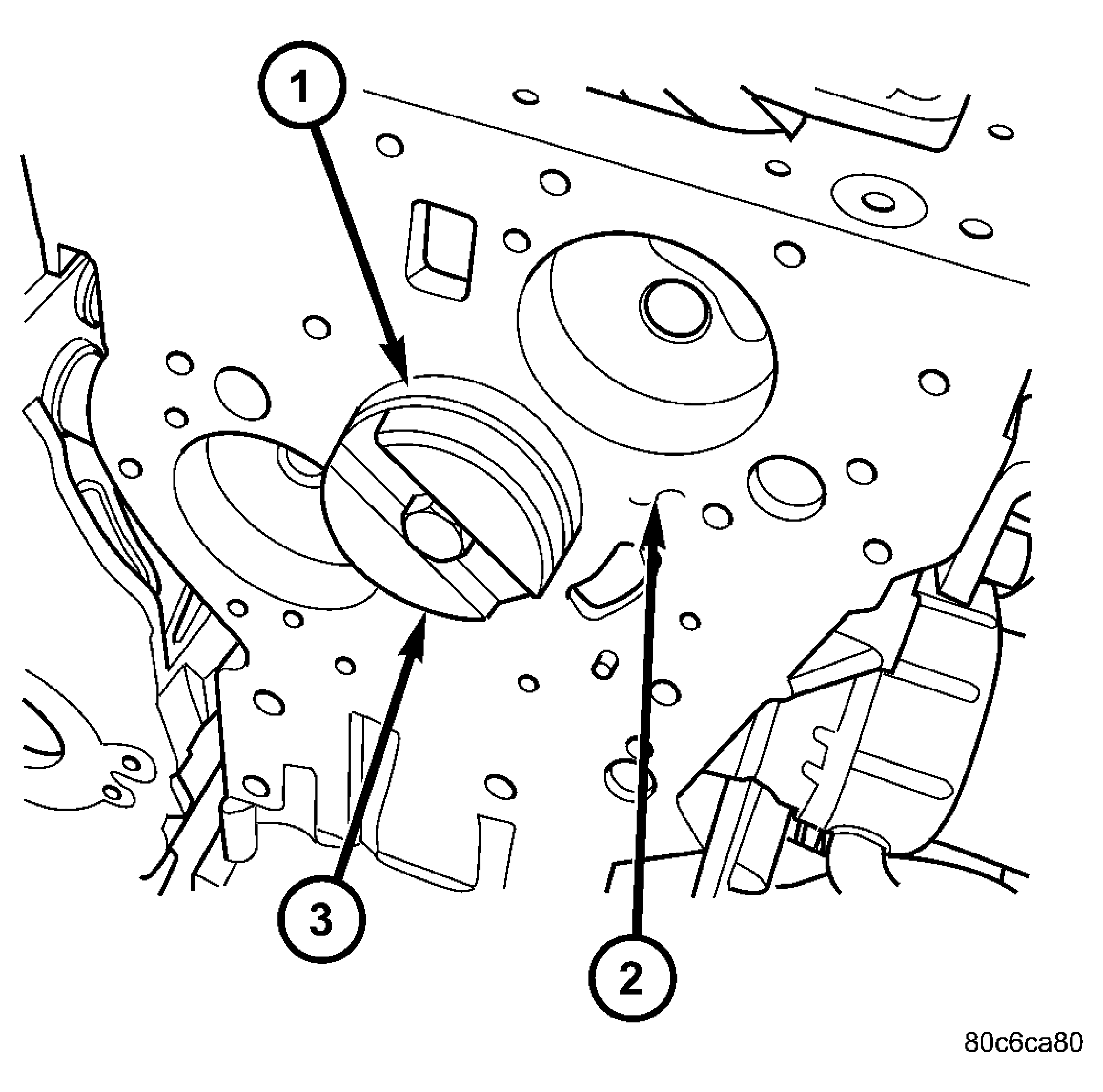

Fig 1: FRONT MAIN BEARING INSTALLATION

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT CRANKSHAFT MAIN BEARING

2 - ENGINE BLOCK

3 - SPECIAL TOOL VM.1073

Be sure oil hole in bearing lines up with oil galley in engine block. See Fig 2.

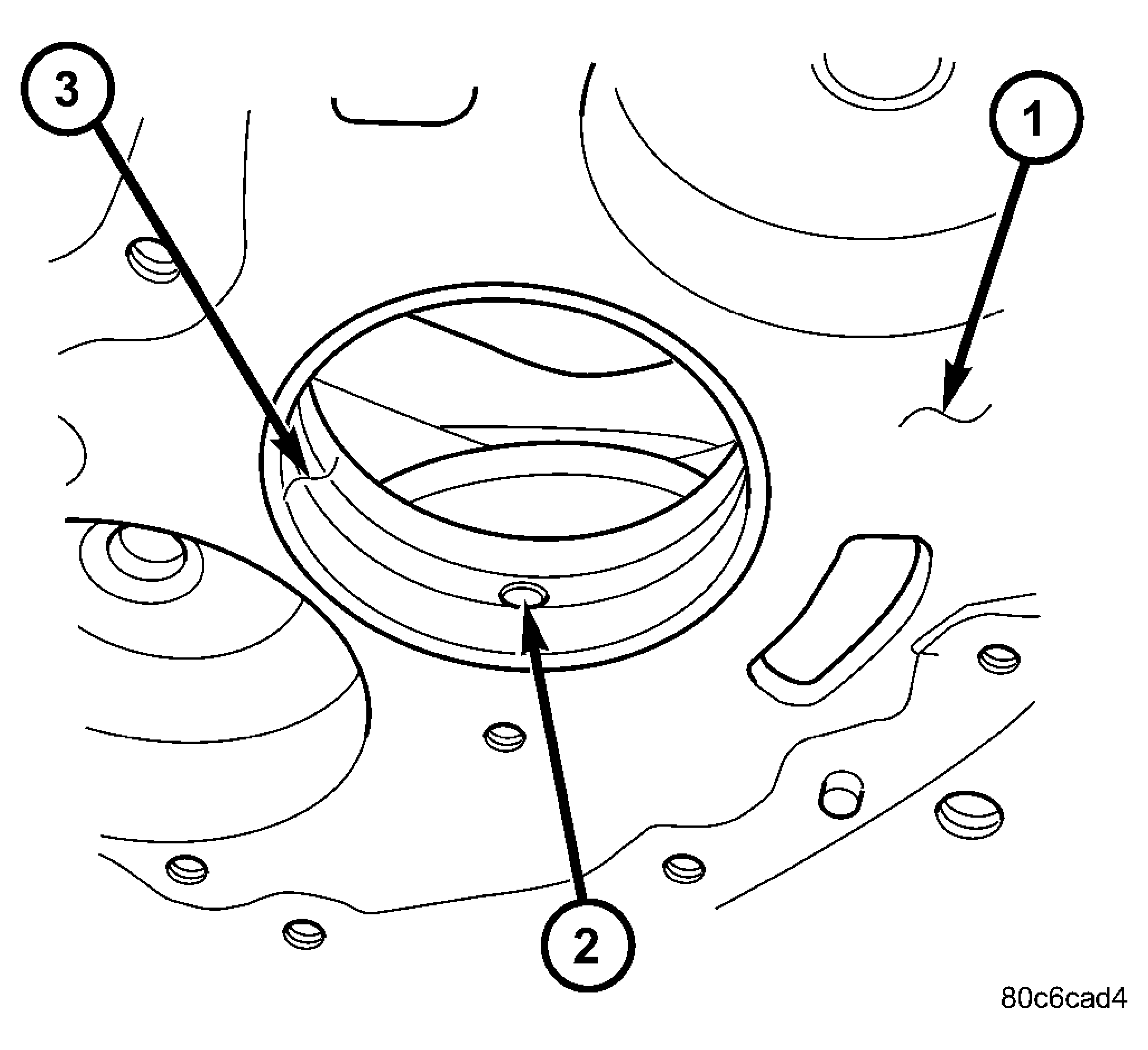

Fig 2: FRONT MAIN BEARING ALIGNMENT

Courtesy of DAIMLERCHRYSLER CORP.

1 - ENGINE BLOCK

2 - OIL HOLE IN BEARING

3 - FRONT CRANKSHAFT MAIN BEARING

Reassemble engine and install in vehicle.
