Balance Shaft: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

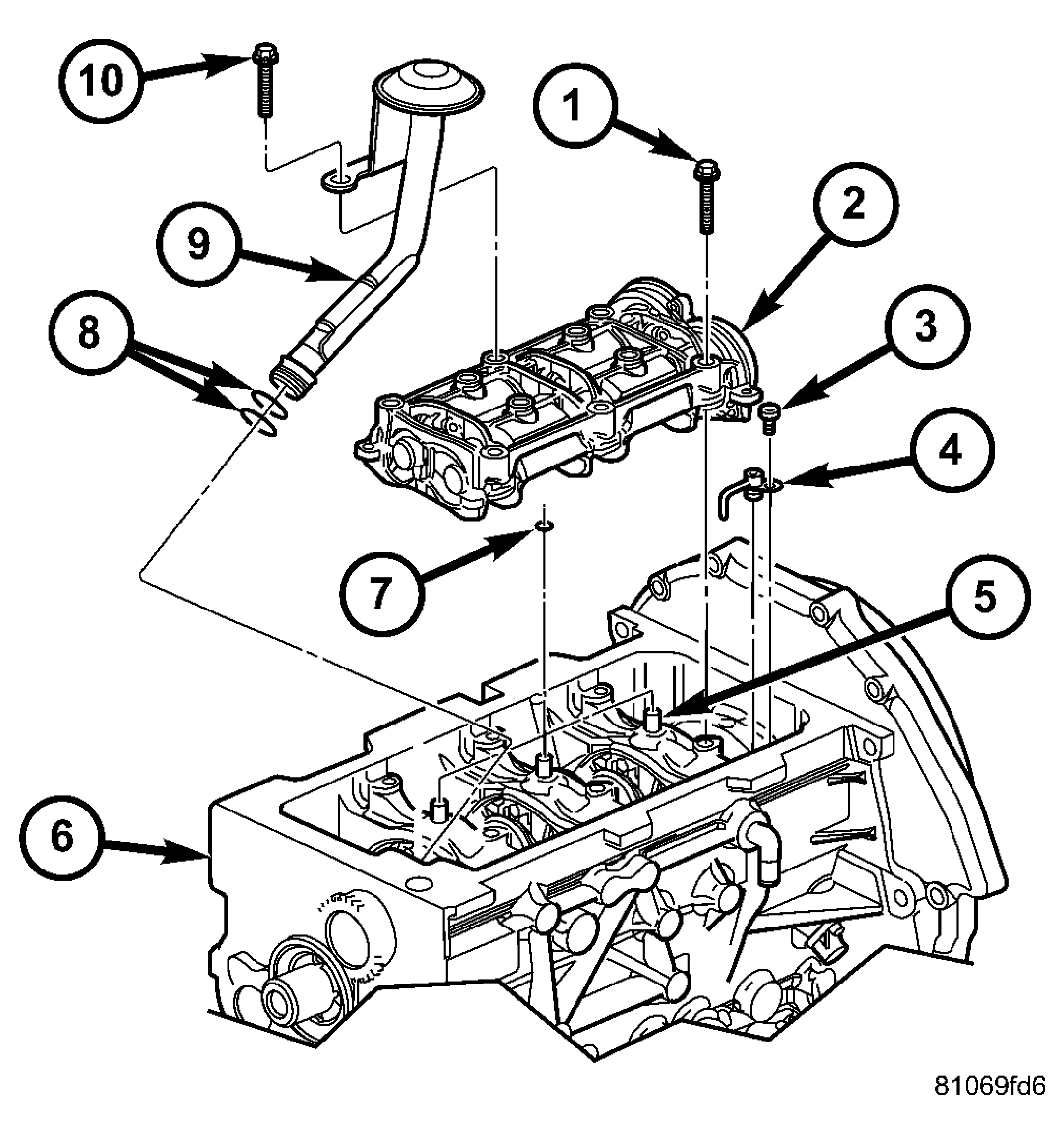

The 2.8L Common Rail Diesel engine is equipped with two gear driven nodular cast iron balance shafts in a cast aluminum carrier. The balance shaft assembly is gear driven by the crankshaft and used to counteract engine vibration. See Fig 1.
| 1 - BALANCE SHAFT RETAINING BOLTS |
| 2 - BALANCE SHAFT ASSEMBLY |
| 3 - OIL JET RETAINING BOLT |
| 4 - OIL JET |
| 5 - CENTRAL CARRIER PINS |
| 6 - ENGINE BLOCK |
| 7 - CENTRAL CARRIER PIN O-RINGS |
| 8 - OIL PUMP PICK UP TUBE O-RINGS |
| 9 - OIL PUMP PICK-UP TUBE |
| 10 - OIL PICK UP TUBE RETAINING BOLT |
