Air Cleaner Housing: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

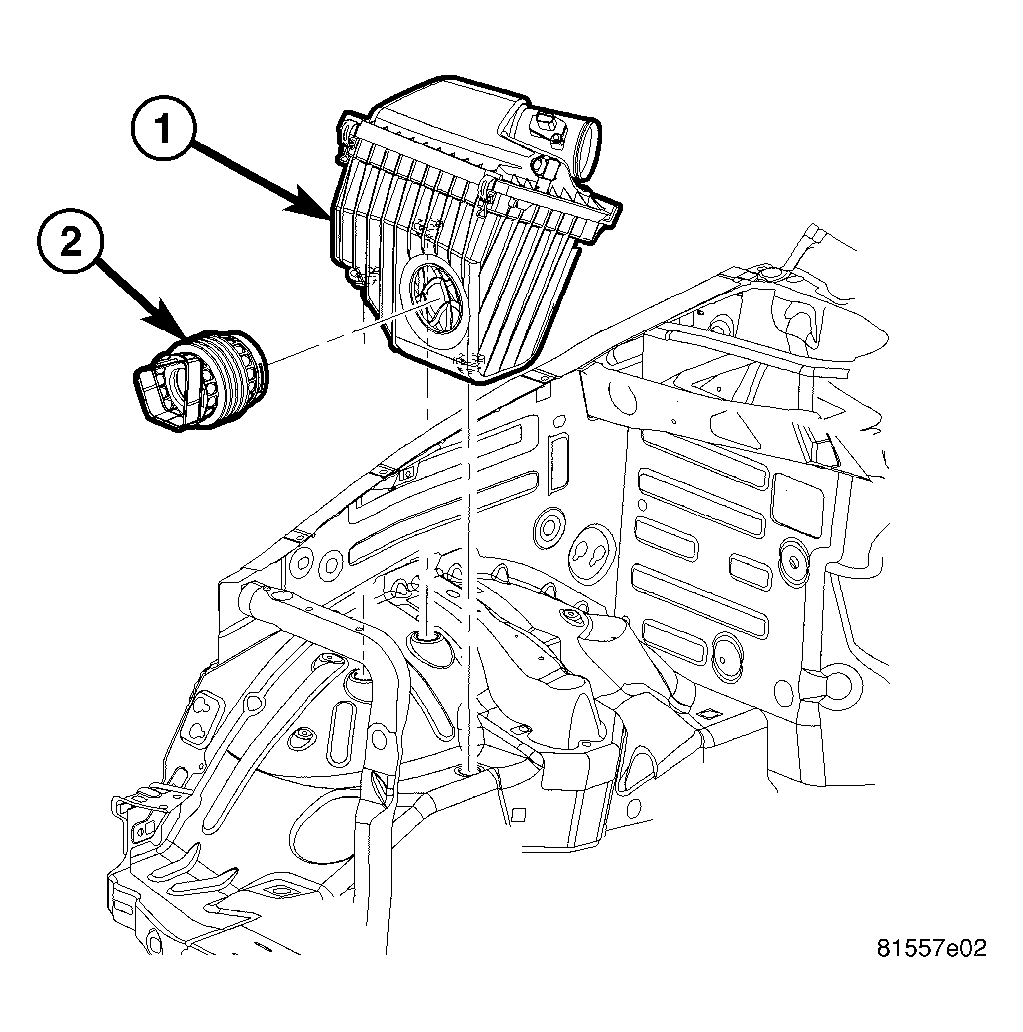

| 1 - AIR CLEANER HOUSING |
| 2 - INLET DUCT |
- Push down on the housing to engage the locking grommets. See Fig 1.
- Position the air cleaner housing in vehicle.
- Install the air cleaner element.
- Position housing cover into housing locating tabs.
- Pry up spring clips and lock cover to housing.
- Install the air outlet tube.
- Connect air intake duct.
- Connect the electrical sensor connectors.
