Engine Cover
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

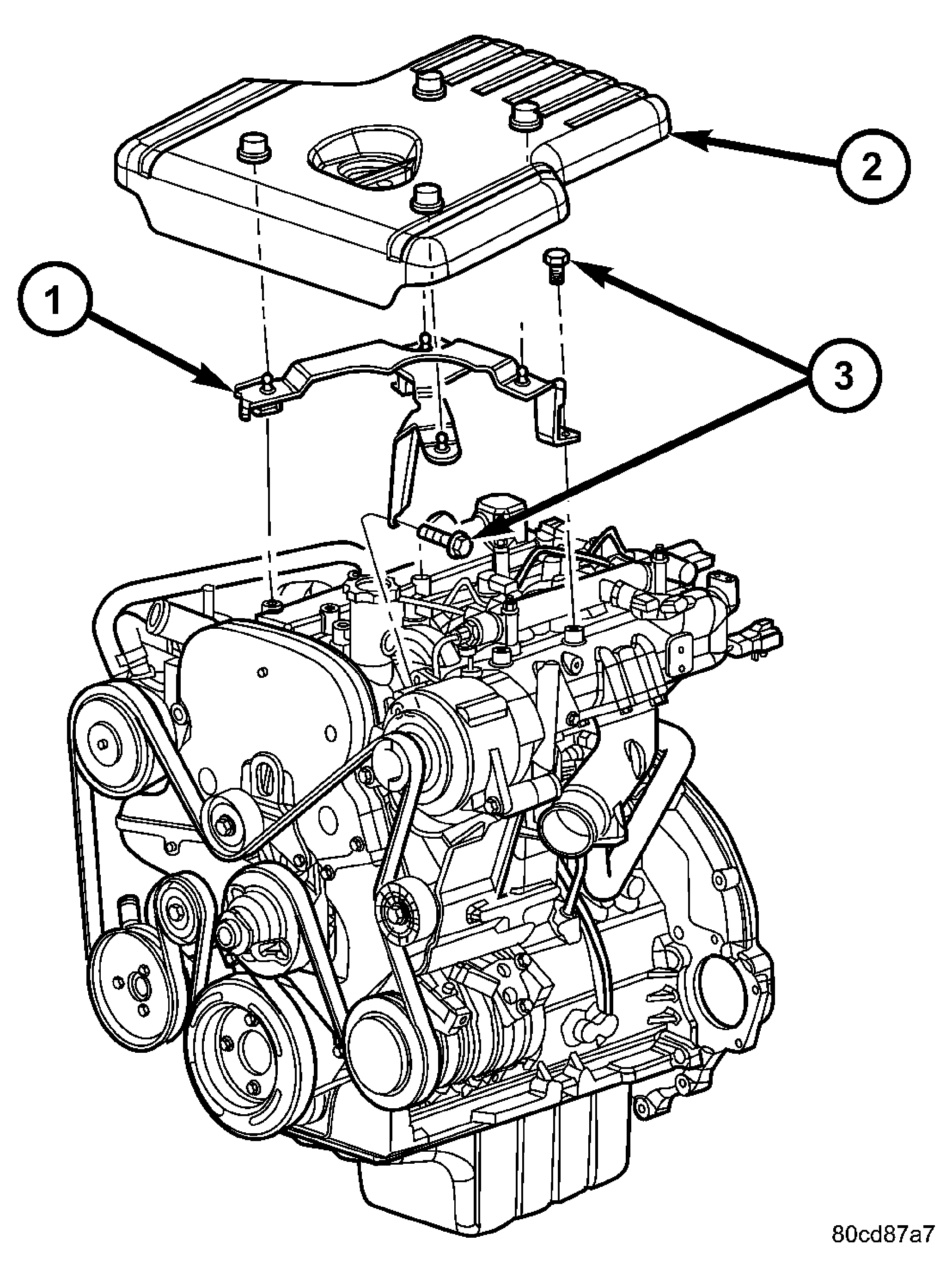

| 1 - ENGINE COVER BRACKET |
| 2 - ENGINE COVER |
| 3 - RETAINING BOLTS |
- Align engine cover (2) with mounting bracket (1). Push down firmly on all four corners of engine cover to snap in place. See Fig 1.
- Install oil fill cap.
