Vibration Damper: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable from battery.
  2. Remove accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
    NOTE: Transmission cooler line snaps into shroud lower right hand corner.
  3. Remove crankshaft damper bolt.
  4. Remove damper using Special Tools 8513 Insert and 1026 Three Jaw Puller. See Fig 1.

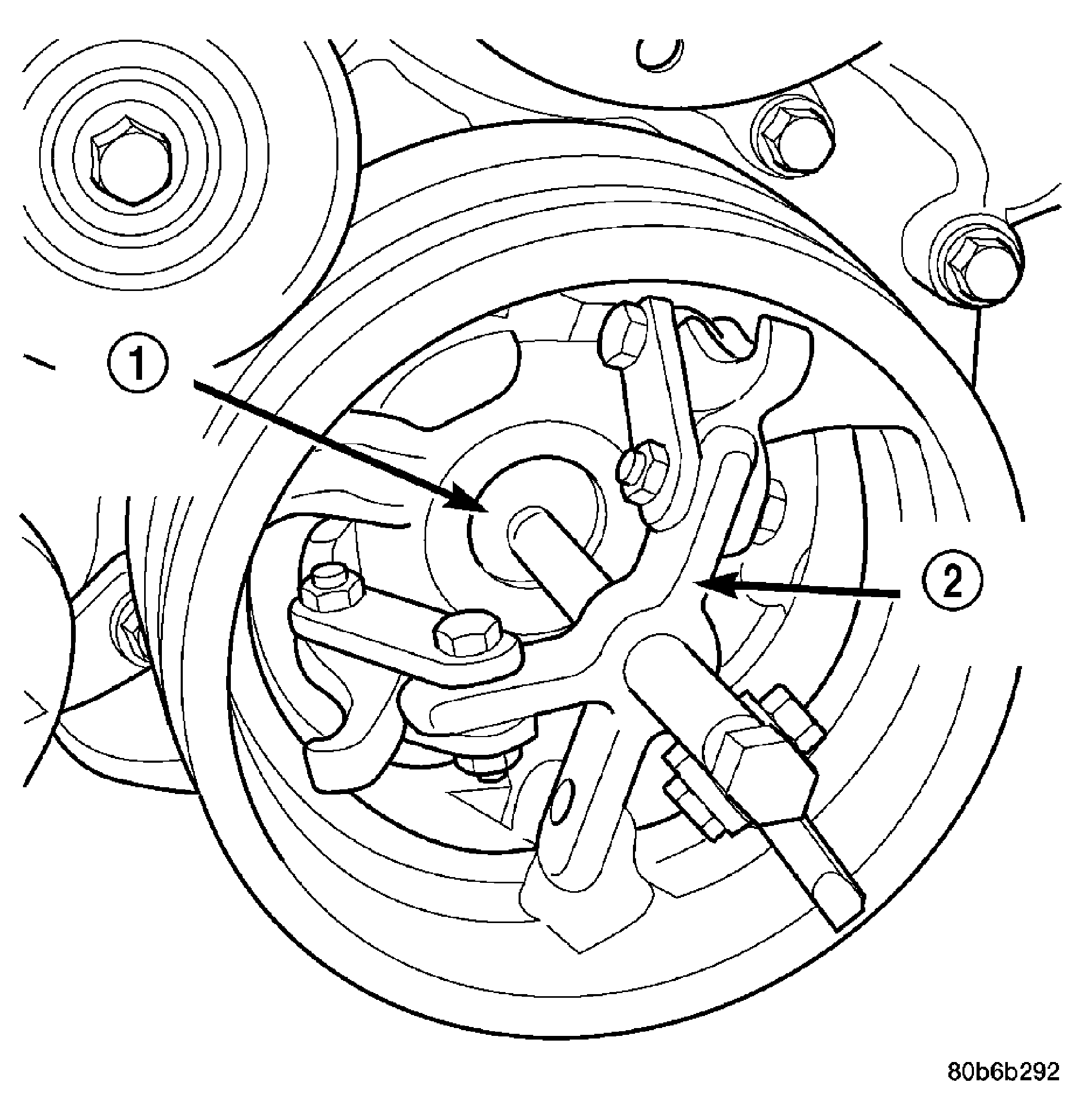

Fig 1: Crankshaft Damper Removal
GC0003821Courtesy of DAIMLERCHRYSLER CORP.
1 - SPECIAL TOOL 8513 INSERT
2 - SPECIAL TOOL 1026
