Switch - Oil Pressure: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

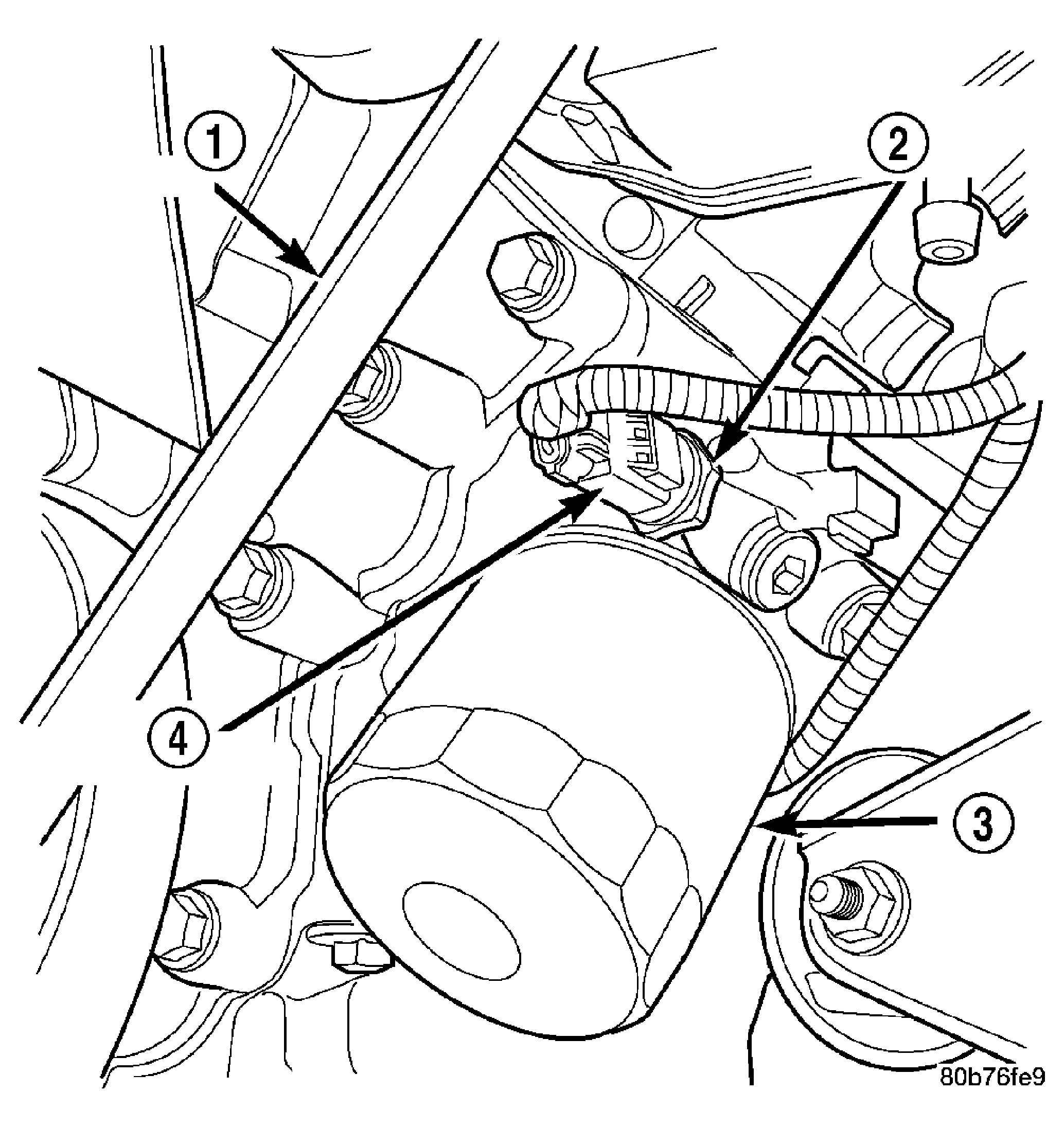

Fig 1: Oil Pressure Sending Unit

Courtesy of DAIMLERCHRYSLER CORP.

1 - BELT

2 - OIL PRESSURE SENSOR

3 - OIL FILTER

4 - ELEC. CONNECTOR

Disconnect the negative cable from the battery.
Raise vehicle on hoist.
Remove front splash shield.
Disconnect oil pressure sender wire (4).
Remove the pressure sender. See Fig 1(2).
