Pump - Engine Oil: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the oil pump onto the crankshaft and install two oil pump retaining bolts.
  2. Position the primary timing chain tensioner and install the two retaining bolts.
  3. Tighten the oil pump and primary timing chain tensioner retaining bolts to 28 N.m (250 in. lbs.) in the sequence shown. See Fig 1.

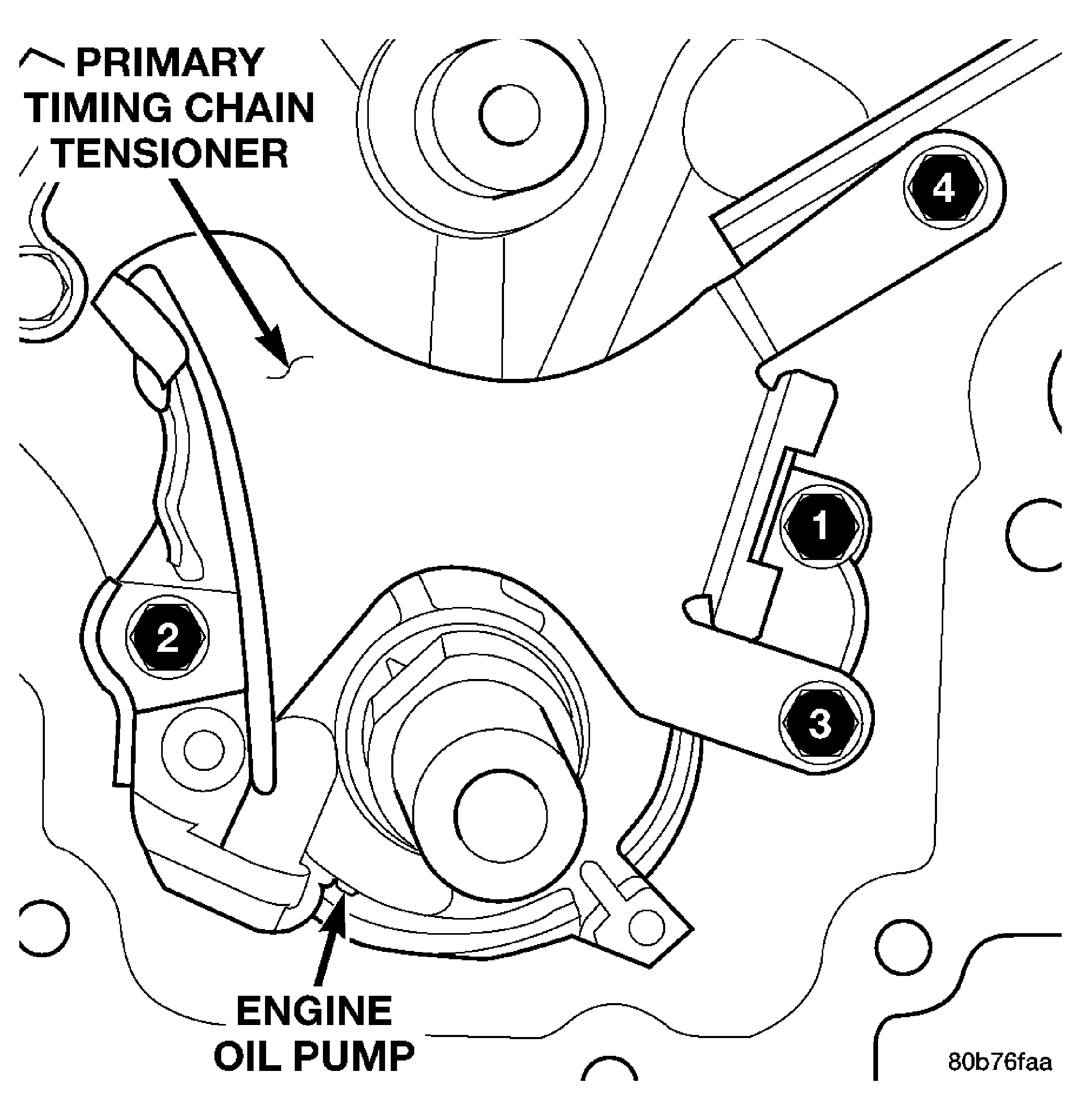

    Fig 1: Oil Pump and Primary Timing Chain Tensioner Tightening Sequence
    GC0003857Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the secondary timing chain tensioners and timing chains (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION) .
  5. Install the timing chain cover (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - INSTALLATION) .
  6. Install the pick-up tube and oil pan (Refer to ENGINE/LUBRICATION/OIL PAN - INSTALLATION) .
